Appendix B Using the Full Media Rewinder with 3 Inch Diameter Core Adapters

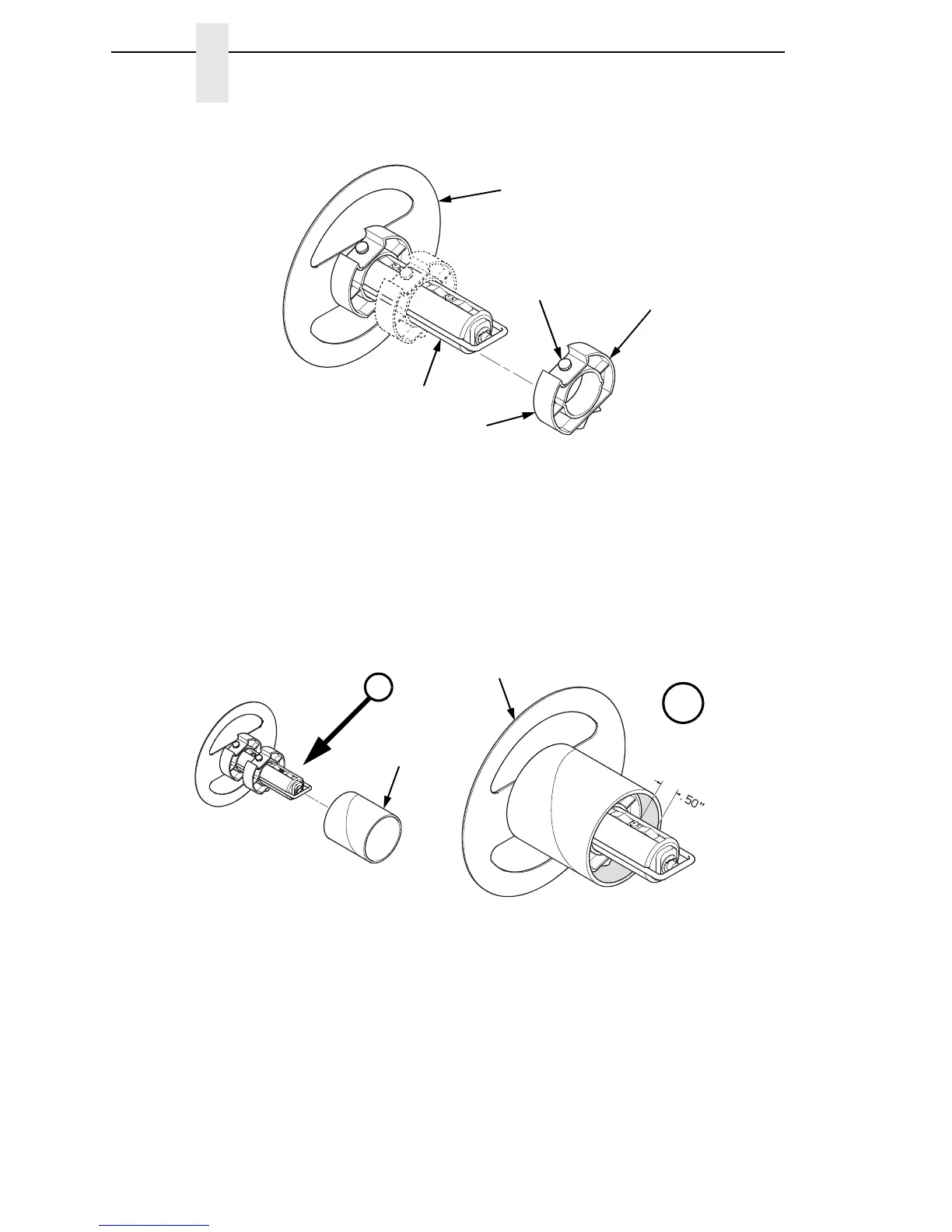

Figure 16. Installing the Outside Core Adapter
3. Slide the outside core adapter onto the rewinder. Place it about 1/2 inch
further in than the width of the media take-up core you are going to use.
For example, if the media take-up core is 4 inches wide, the distance from
the rewinder flange to the outside edge of the outside core adapter should
be about 3 1/2 inches.
4. Tighten the thumbscrew.
Figure 17. Installing the Media Take-Up Core
5. Slide a 3 inch diameter media take-up core onto the rewinder over the two
core adapters until it is flush with the rewinder flange. You should have
about 1/2 inch from the outside edge of the outside core adapter to the
edge of the media take-up core.
pgrwlod3
Rewinder
Flange
Thumbscrew
Outside
Edge
Outside Core Adapter
Rewinder
pg r wl od 4
pgrwl od5
B
B
Rewinder
Flange
Media
Take-Up
Core
