Chapter 1 Setting Up The Printer

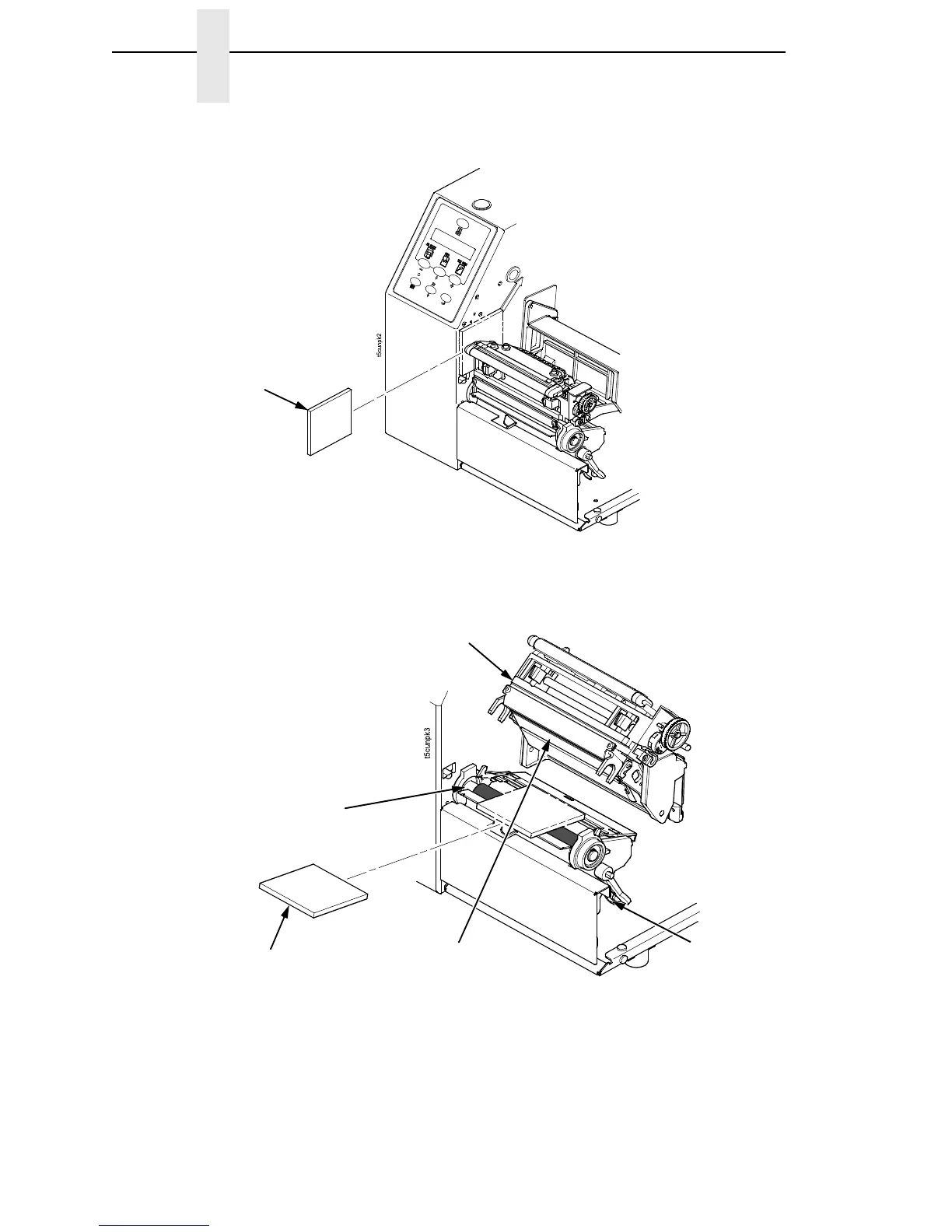

4. Remove the foam pad between the pivoting deck and the frame.
5. Open the pivoting deck by rotating the blue deck lock lever fully
clockwise.
6. Remove the foam pad from between the printhead and the platen (rubber
roller).
7. Close the pivoting deck and media cover.
Foam
Foam Pad
Deck Lock
Lever
Pivoting Deck
Platen
Printhead
