Loading Roll Media
43

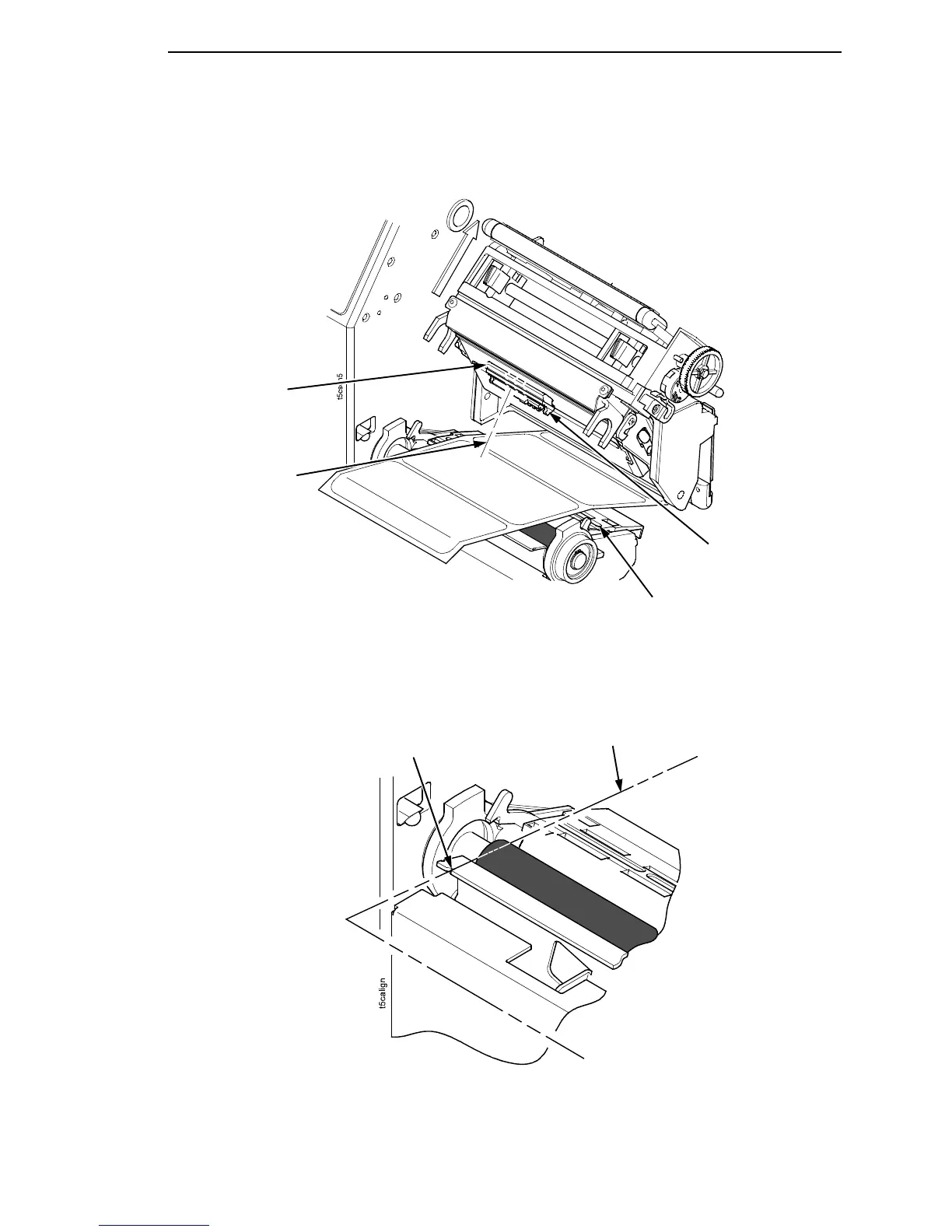

11. Slide the upper sensor directly over the lower sensor.
12. Align the left (inside) edge of the media with the guide notch located on
the front edge of the tear bar.
Upper Sensor
Visible Red Beam
Lower Sensor
Upper Sensor Handle
Media Guard
Opening
Guide Notch
Media
(left edge)
