5.4.3 CV Mode Operating Instructions

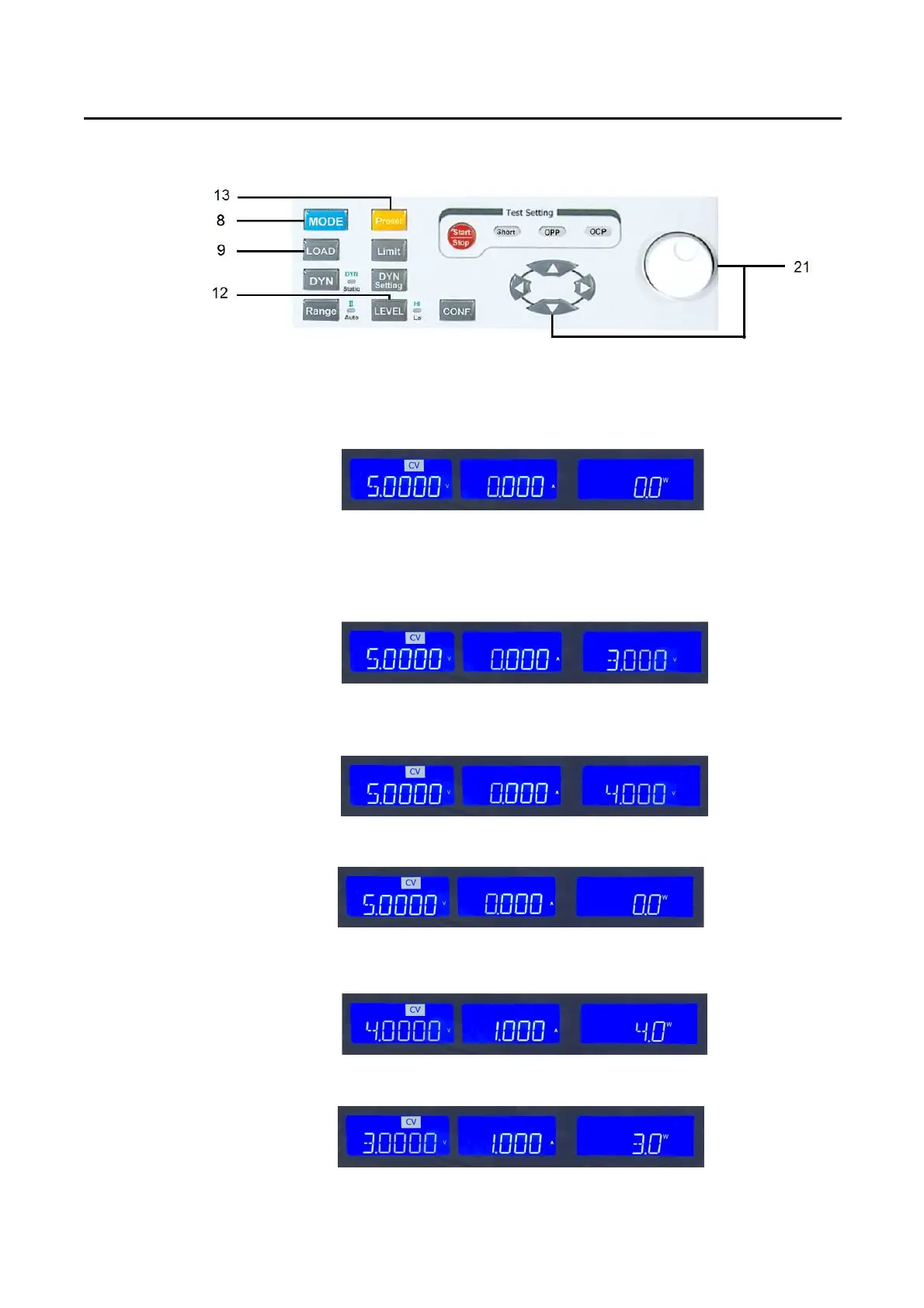

Example: PSU 5 V / 1A, CV mode, Level HI 4.000V, Level 3.000V
5.4.3.1. These can be selected in turn by pressing the "MODE" key (8), LCD will illuminate
According to the operating mode is selected CV.
5.4.3.2. Pressing the "Preset" Key (13) once will cause the button to illuminate.
5.4.3.2.1. Pressing the LEVEL key (12) LED once will illuminate, Select LEVEL Lo,
Adjusted by the rotary knob and arrow key (21) can be read from the right
Display during Setting 3.000V.
5.4.3.2.2. Pressing the LEVEL key (12) LED once will illuminate, Select LEVEL Hi,
Adjusted by the rotary knob and arrow key (21) can be read from the right
Display during Setting 4.000V.
5.4.3.3. Pressing the "Preset" Key (13) LED once will cause the button to off, Leave setting
Mode.
5.4.3.4. Pressing the “LOAD “Key (9) LOAD button lit (Load on), Pressing the "LEVEL"
Key (12), LED Once will illuminate, Select is “LEVEL Hi”
5.4.3.5. Pressing the "LEVEL" key (12), LED Once will off, Select is “LEVEL Lo”
