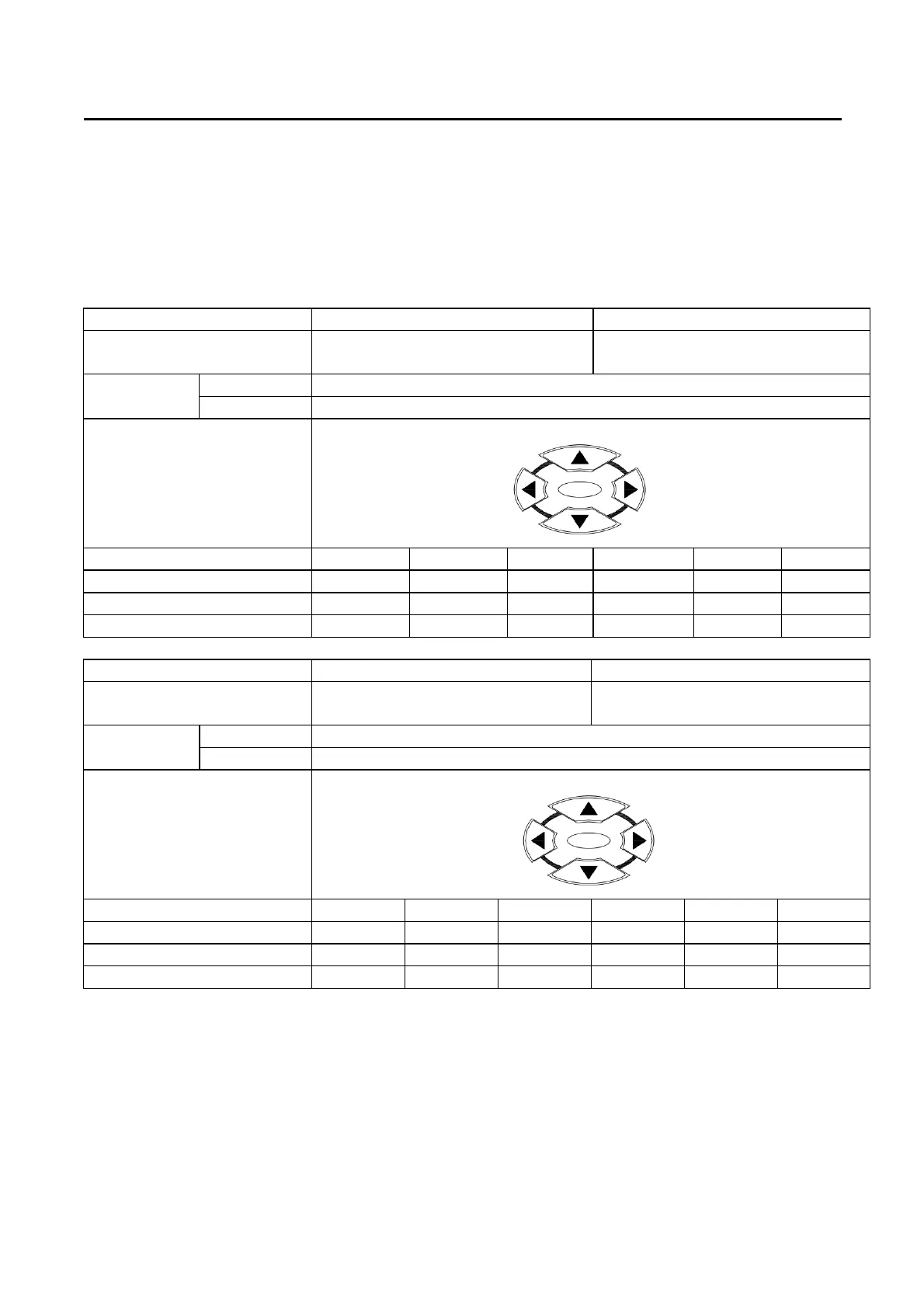

3350F Series Operation Manual 69

3-8. Load current course/fine increase/decrease adjustment knob

Change amount that CC/CR/CV/CP MODE (CR contrary) load current adjusts form 3-6 shows

Analyzes one degree of relations with knobing. Push the knob when operate (the figure will

glimmer), can enter one and analogize , rotate increment right or rotate decrement left, will

Continue increasing or reducing and reach the minimum value or the maximum to establish

Constantly to adjust in load current, or the knob no longer continues rotating in the way.

3350F

RANGE I RANGE II

FULL SCALE LOAD

CURRENT

12A 120 A

CURRENT RANGE

0~12A/120A

METER RESOLUTION

0.2mA/2mA

COURSE/FINE LOAD

CURRENT ADJUSTMENT

knob

CC Mode

100mA 10mA 1mA 1A 100mA 10mA

CR Mode

3.3mS 0.33mS 0.033mS

0.83mΩ 0.083mΩ

0.0083mΩ

CV Mode

0.01V 0.001V 0.0001V

0.1V 0.01V 0.001V

CP Mode

1W 0.1W 0.01W 10W 1W 0.1W

3351F
