In such event, the electronic load (3350F) may generate unstable oscillation.
In such condition, the input voltage may exceed the maximum input voltage and Cause
Damage to the 3350F Series.
CH1=Imonitor
CH2=Power Supply output Voltage (x10)
CH3= LOAD Input Voltage (x10)

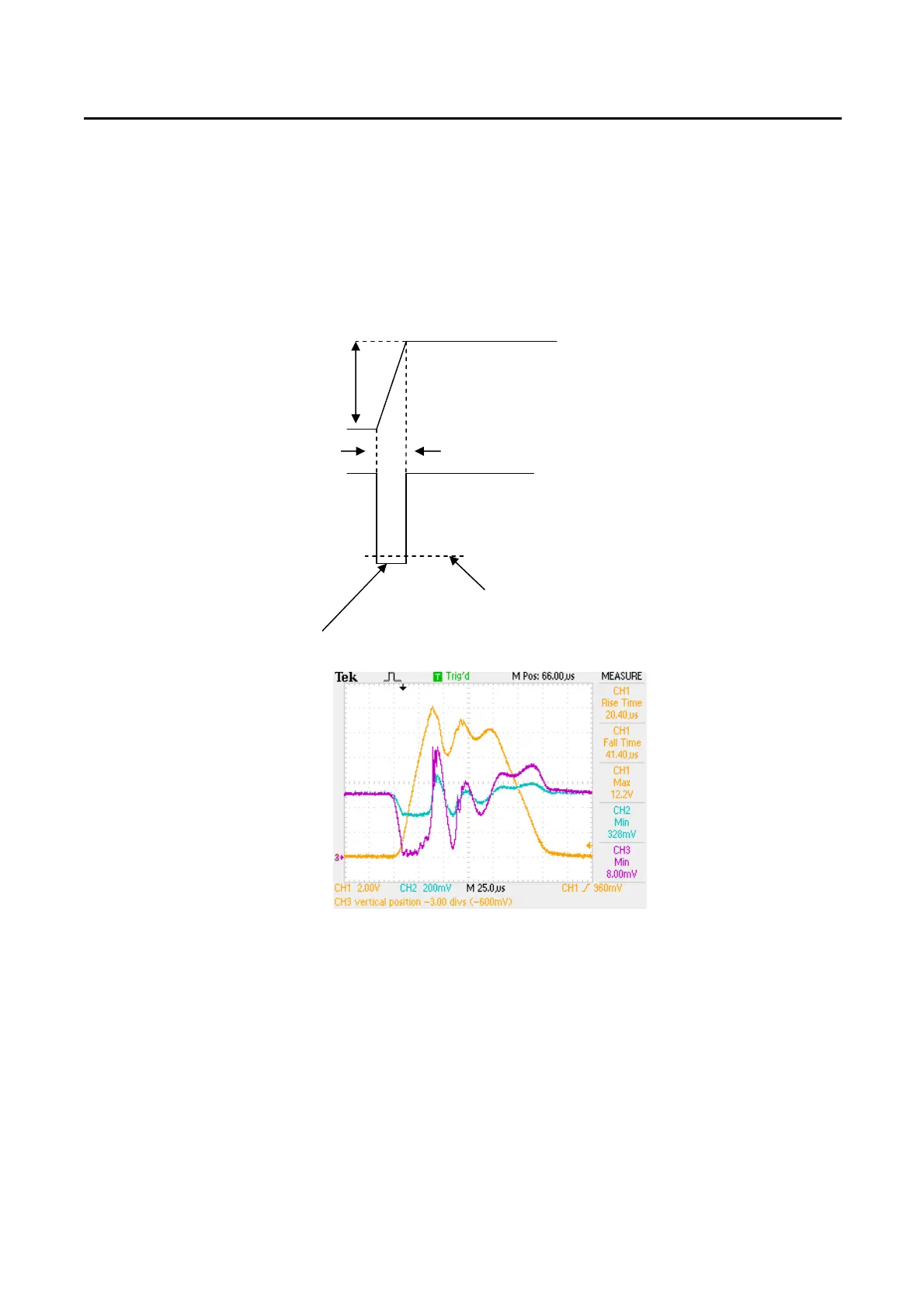

Fig 2-12 Waveform example: Generate unstable oscillation
You must be careful especially when the slew rate setting is high or switching is performed
Using large currents through parallel operation.
Current
△
I
Voltage at Load Input Terminal
Minimum operating Voltage
When the Voltage drops under minimum operating voltage, the
electronic load may generate unstable oscillation
