56 PRODIGIT

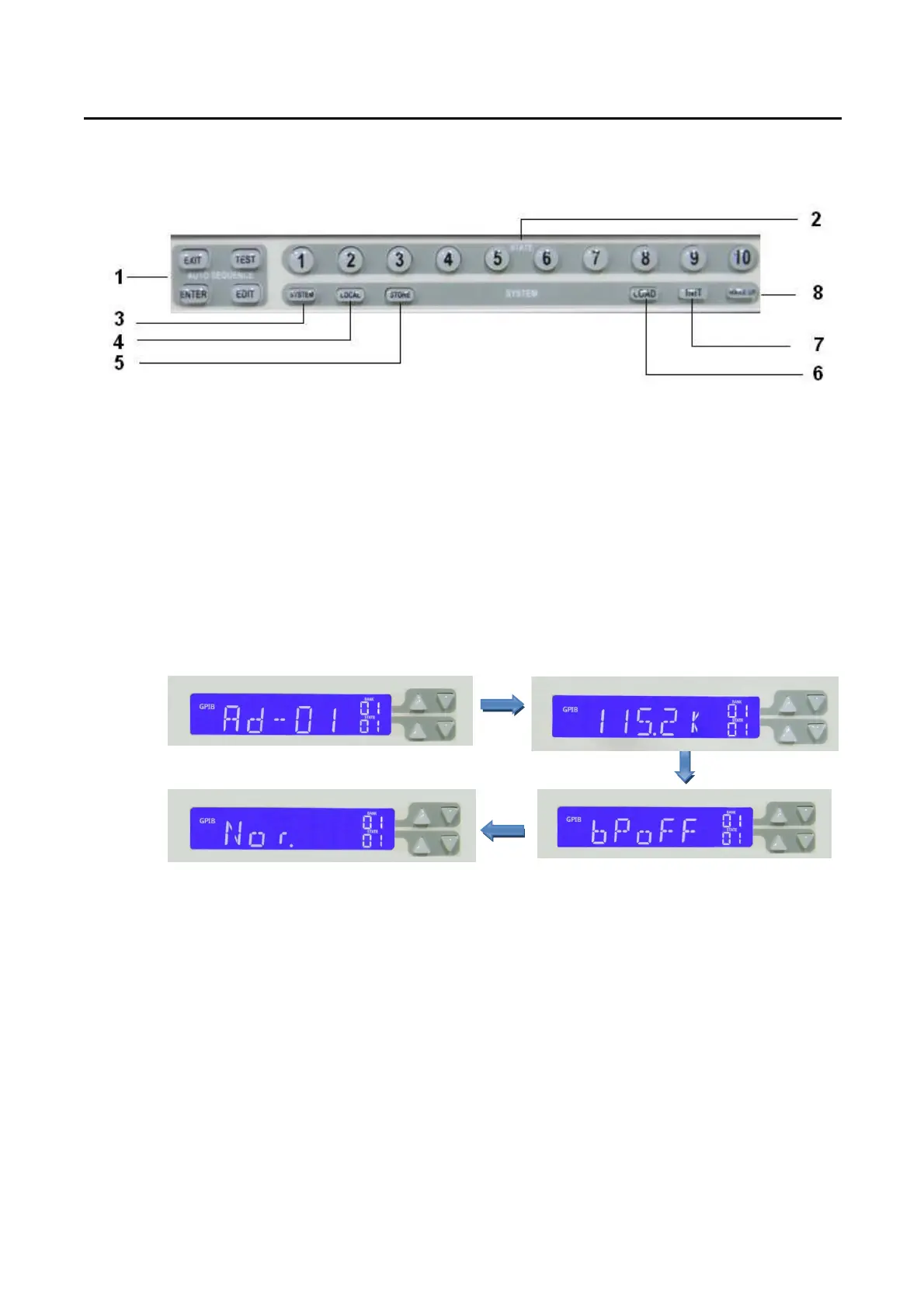

3-4. Front panel description (3)
This section briefly describes the buttons on the right hand side of the mainframe. Their
Functional use is further described in section 3.4.
3.4.1. The 4 buttons marked exit, test, enter and edit are used to set an auto-sequence.
3.4.2. The numbered buttons 1~10 are the memory states (locations) for storing or
Recalling a load set up. They are also used to select a previously saved
Auto-sequence when in test mode
3.4.3. Pressing the system button once allows the GPIB address to be changed by using
The arrow keys. Pressing the system button again allows the RS232 baud rate to
Be adjusted. With the third press of the system button the buzzer can be switched
On/off. Another press puts the LCD back to Normal state as shown below.
3.4.4. The local button is used to exit the remote mode and bring the unit back to front
Panel control.
3.4.5. The store button is used to save the load configuration.
3.4.6. The load button is used to setting LOAD Synchronous Load ON.
3.4.7. The init button is used to restart LOAD.
3.4.8. The wake up button is used to recall the load configuration at mains power on.
