3350F Series Operation Manual 17
2-16. LAN Connection Option
Fig 2-6 shows the LAN connector in the rear panel of 3350F mainframe. Please refer
Appendix C.

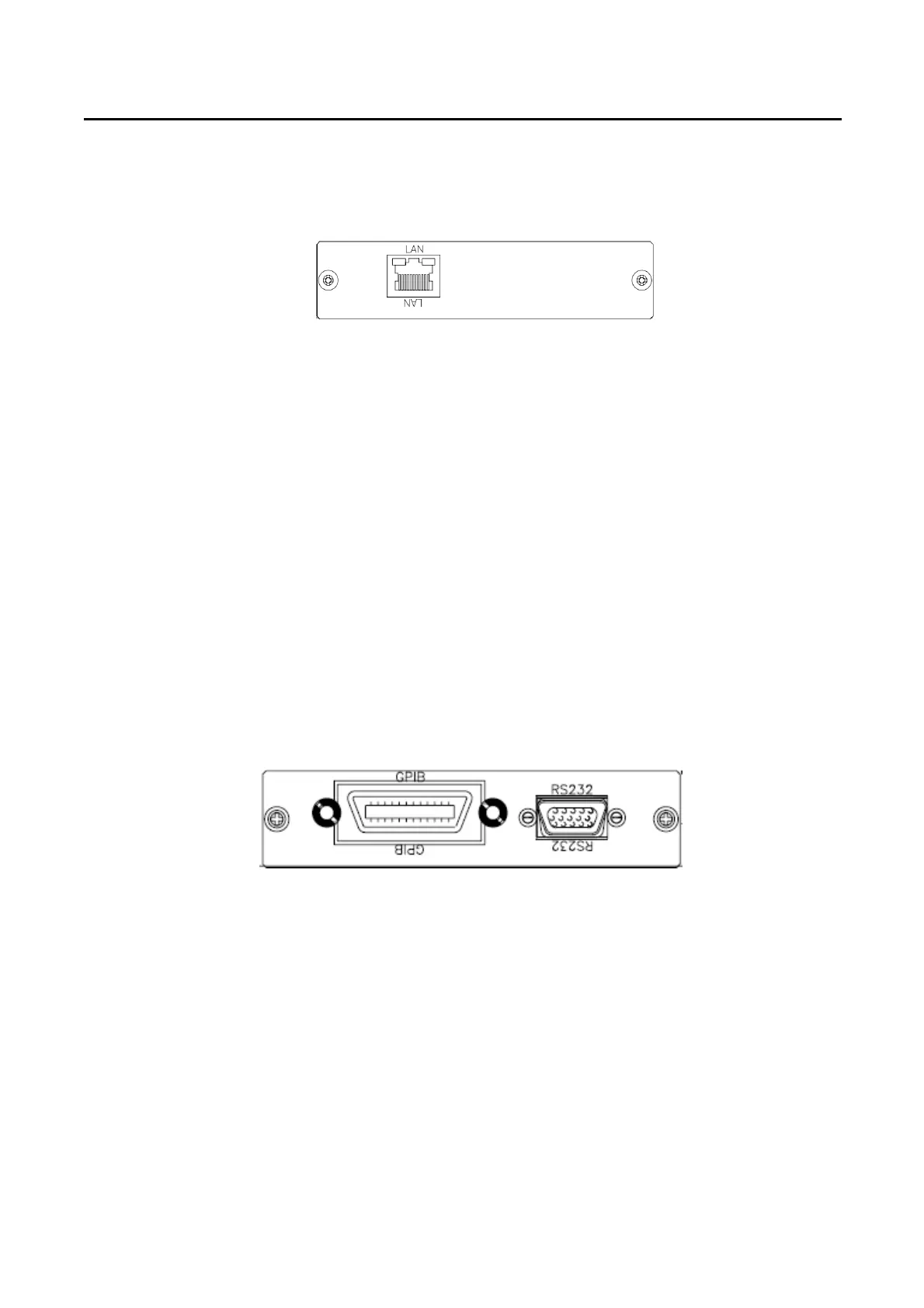

Fig 2-6 3350F LAN Connection
2-17. GPIB & RS232 connection
2.17.1. GPIB + RS-232C connector is on the rear panel of 3350F mainframe for Application
GPIB or RS-232 C.
2.17.2. GPIB and RS-232C interface can only be used at the same time, to Change the
Interface must reboot unit.
2.17.3. GPIB connection with three important limitations as Described below:
2.17.3.1. The maximum number of devices including the controller is no More than
15.
2.17.3.2. The maximum length of all cable is no more than 2 meters times The
Number of devices connected together, up to 20 meters Maximum.
2.17.3.3. RS-232C Female Block connections on the back panel, the Connecting
Device and the computer RS-232C port to one-way Connection.
(Note: Not 2-wire connection, the detail as 4-2).
2.17.4. Fig 2-7 shows the RS-232C connector (Female) on the rear panel Connects 3350F
Mainframe to RS-232C port of computer in one by one Configuration .The RS-232
BAUD-RATE can be set in the front panel, it Will be lit the GPIB Address when press
The “SYSTEM” button. Press it Again, it will be lit the BAUD-RATE.
Fig 2-7 3350F GPIB & RS232 Connection
