Prodigit 3350F Series User Manual

16 PRODIGIT

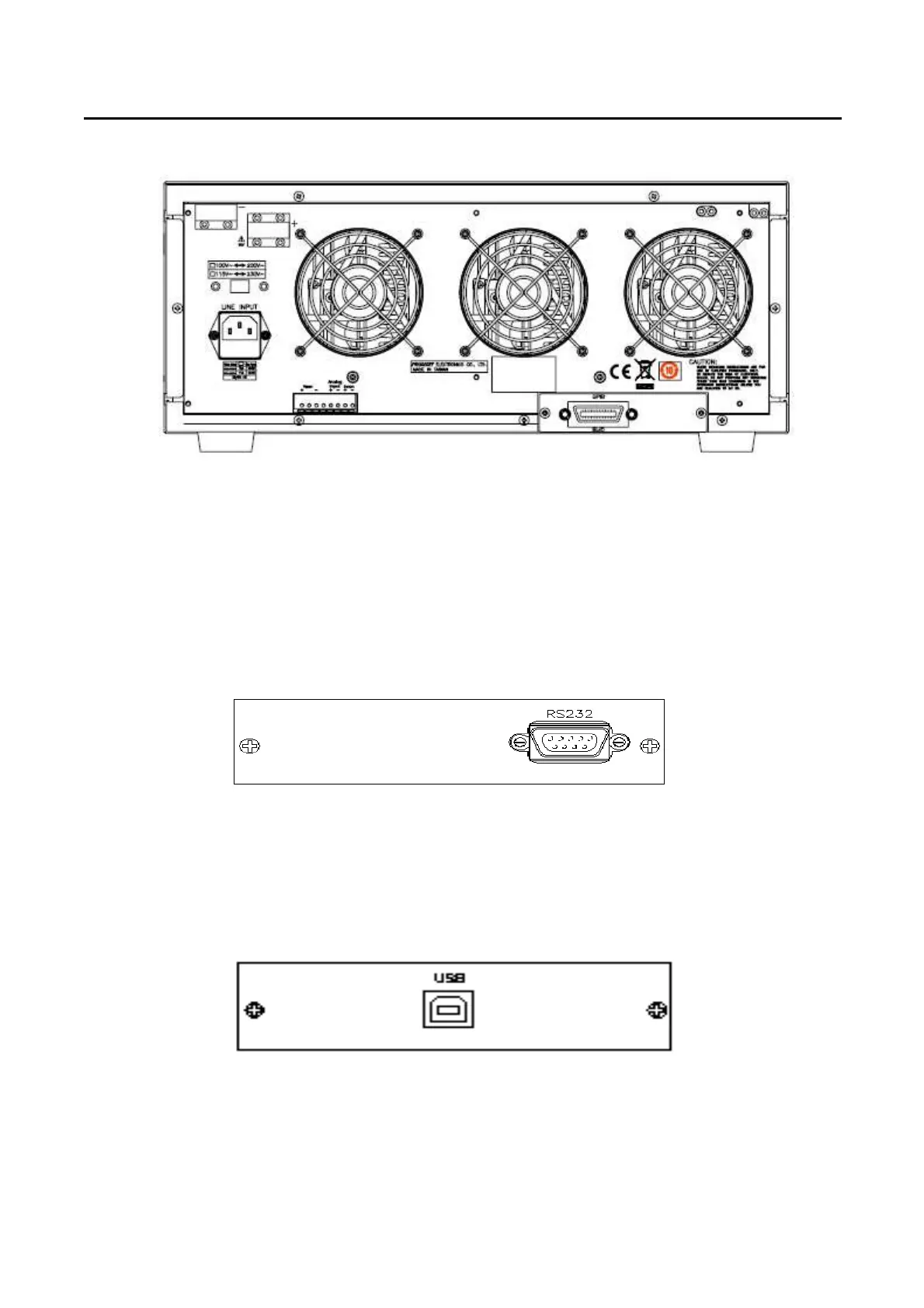

Fig 2-3 3350F series GPIB Rear panel
2-14. RS-232C Connection Option
The RS-232C connector (Female) on the rear panel connects 3350F mainframe to RS-232C
port of computer in one by one configuration .The RS-232C BAUD-RATE can be set in the
front panel, it will be lit the GPIB address when press the “SYSTEM” button. Press it again, it
will be lit the BAUD-RATE.
Fig 2-4 3350F Series Rs-232 Rear panel
2-15. USB Connection Option
Fig 2-5 shows the USB connector in the rear panel of 3350F mainframe. Please refer
Appendix B.
Fig 2-5 3350F USB Connection

Prodigit 3350F Series Specifications

General

Brand	Prodigit
Model	3350F Series
Category	Power Supply
Language	English
