5.6.2.2.2. Pressing the LEVEL key (12) LED once will illuminate, Select LEVEL Hi,
Adjusted by the rotary knob and arrow key (21) can be read from the lower
Display during Setting 5.00W.
5.6.2.3. Pressing the "Preset" Key (13) LED once will cause the button to off, Leave setting
Mode.
5.6.2.4. Pressing the “LOAD “Key (9) LOAD button lit (Load on), Pressing the "LEVEL"
Key (12), LED Once will illuminate, Select is “LEVEL Hi”.
5.6.2.5. Pressing the "LEVEL" key (12), LED Once will off, Select is “LEVEL Lo”.
5-7. Constant current source operation
The Electronic load can also be used as a high current constant current source if the
following connection is made. This function can be used as a battery charger or other
application. It can also combine two or more modules as one unit by parallel connection for
higher current operation.

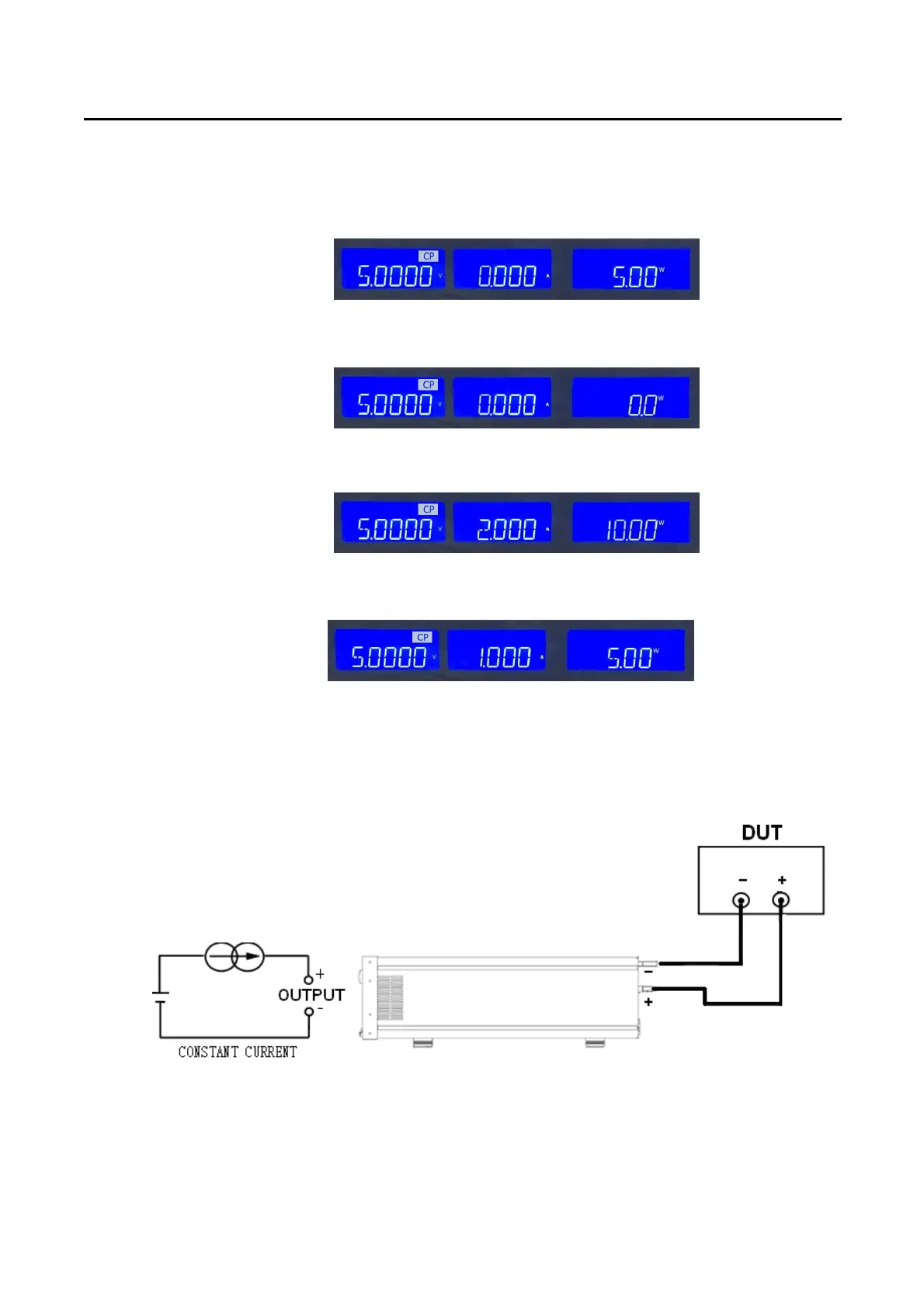

Fig 5-8 Constant current source connection
3350F
