3350F Series Operation Manual 111
5-11. Power Supply OPP testing

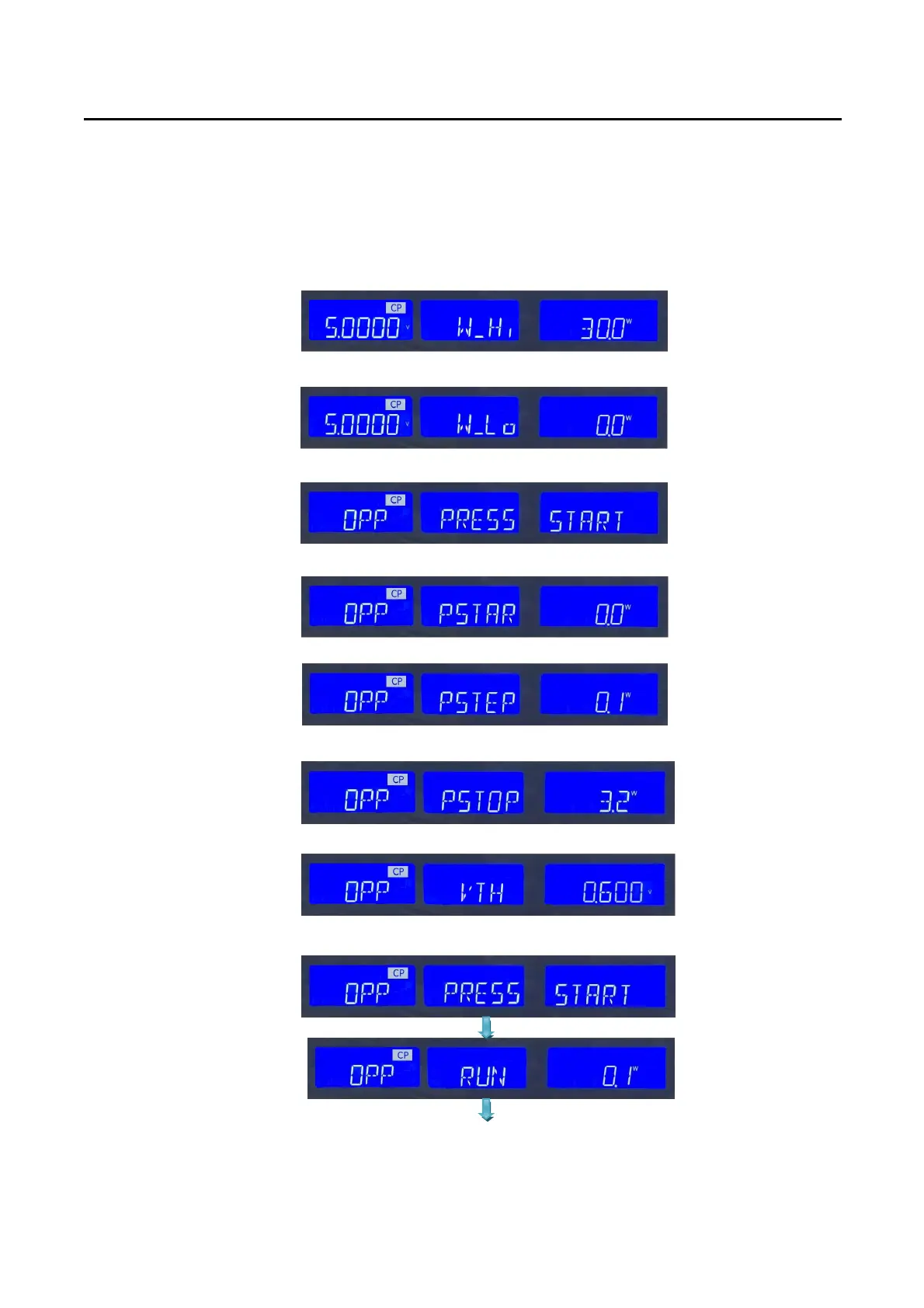

5.11.1. OPP Manual control
Example:
5.11.1.1. First, press Limit Key function to setting W_Hi 30.00W.
5.11.1.2. Press Limit Key function to setting W_Lo 0W.
5.11.1.3. Setting OPP test, press OPP key to the next step.
5.11.1.4. Setting start load watt 0W, press OPP key to the next step.
5.11.1.5. Press up key, set step load watt 0.1W, press OPP key to the next step.
5.11.1.6. Press up key, set stop load watt 3.2W, press OPP key to the next step.
5.11.1.7. Setting OPP VTH 0.600V，press OPP key to the next step.
5.11.1.8. Press START/STOP Test key.
