3350F Series Operation Manual 53

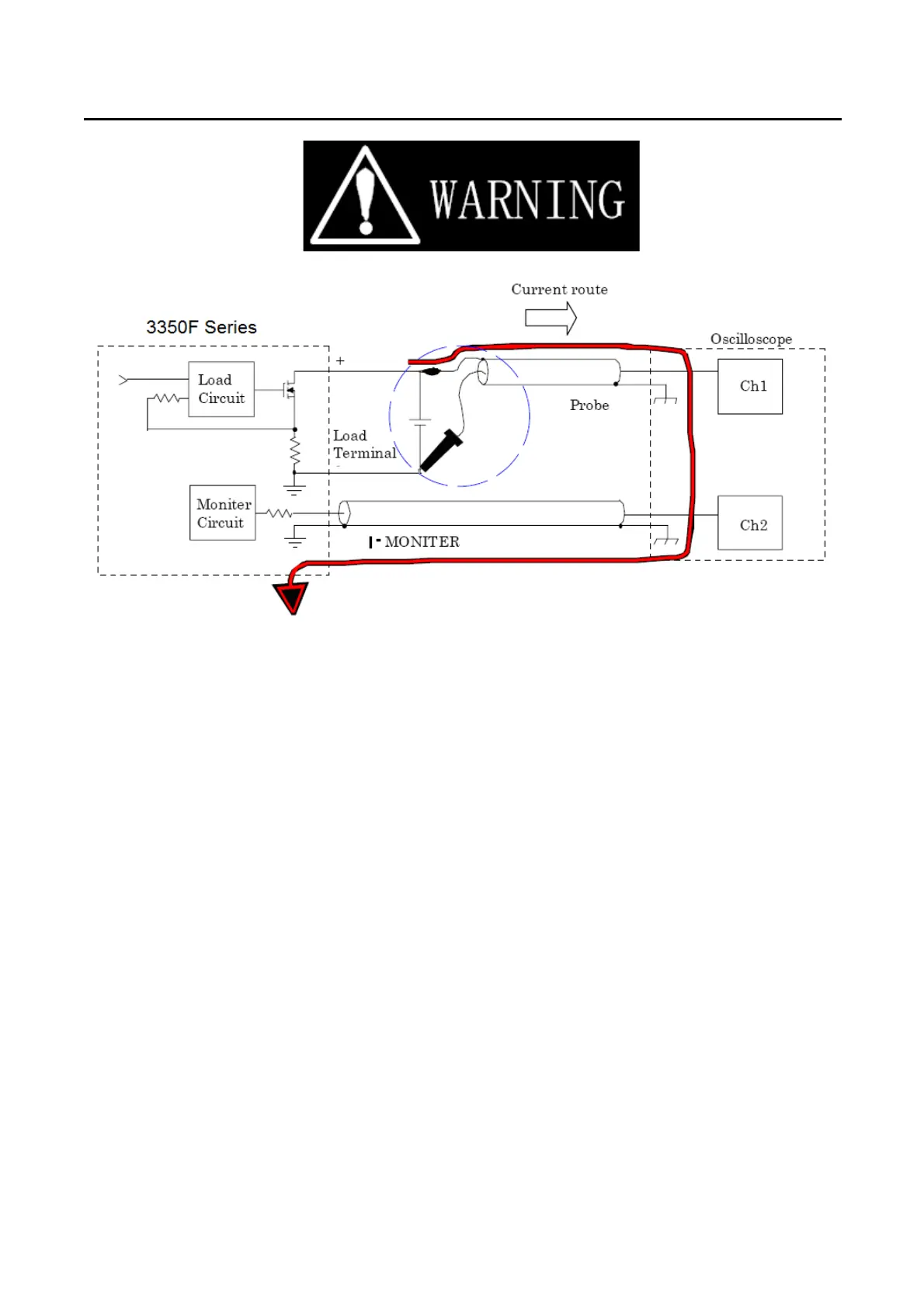

Fig 3-6 (Wrong) Connections to an oscilloscope
If the probes connection is reversed as shown in Fig 3-6, a large current would flow through the
Probe and the internal circuitry of the oscilloscope is likely to be damaged.
