3350F Series Operation Manual 123
Example Sequence

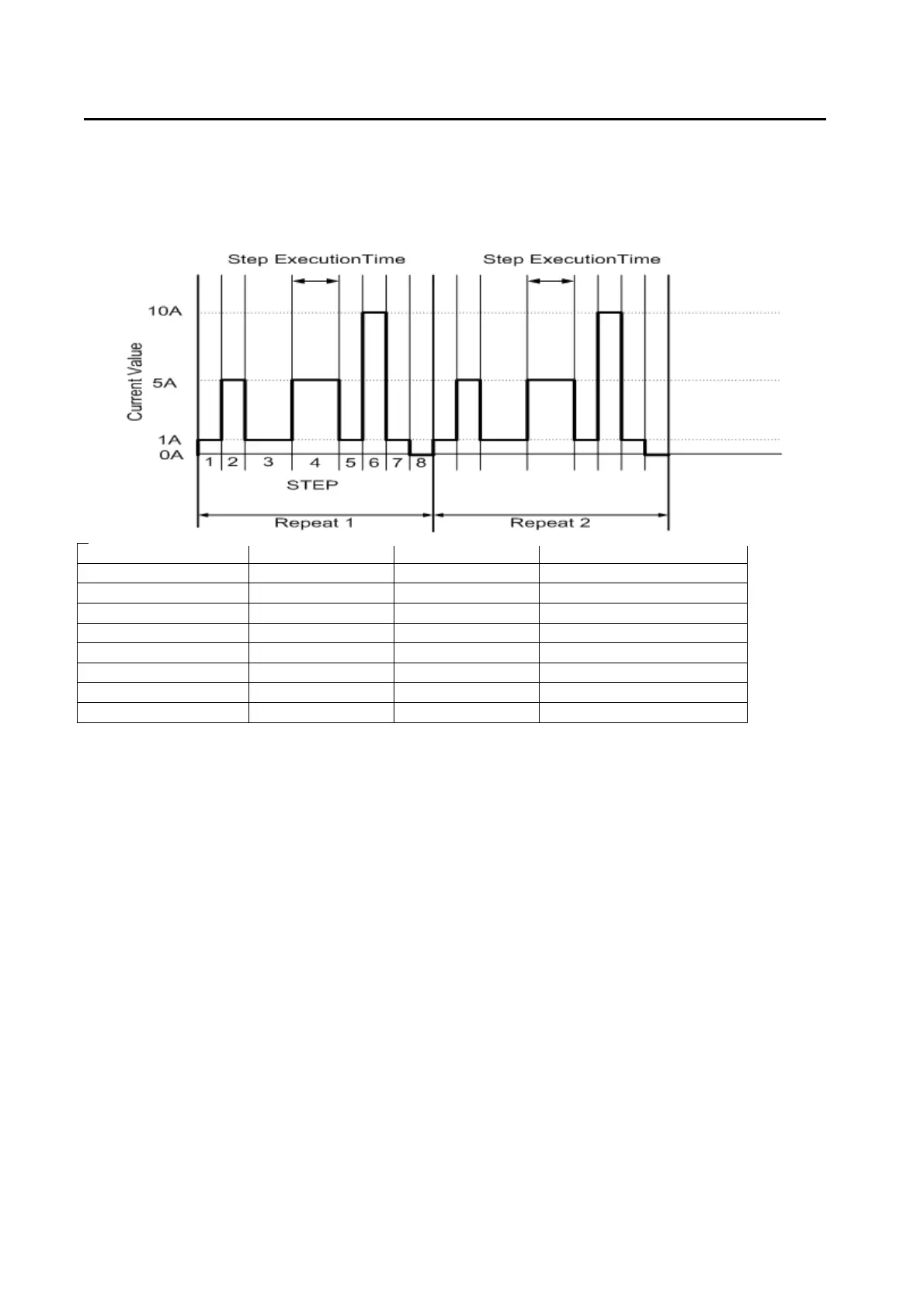

In this example, we will create a program based on following Figure.
The program executes steps 1 to 8 on sequence.
Sequence Number Step Number Current Value Execution Time(T1+T2)
3 1 1A 200mS
3 2 5A 200mS
3 3 1A 400mS
3 4 5A 400mS
3 5 1A 200mS
3 6 10A 200mS
3 7 1A 200mS
3 8 0A 200mS
Creating the program
1. Setting the Load current level and store to bank 3 state 1~8
2. Set the operation mode
Press the mode key to CC mode.
3. Set the range
Press RANGE key to force range 2
4. Press Load ON
5. Set the current value as step 1~8 and store to memory bank 3 state 1~8
6. Press EDIT key of 3350F mainframe
7. Press sequence number 3 to edit the sequence
8. Press up/down key to memory bank 3 and state 1
9. Press ENTER key to confirm the sequence memory
10. Press up/down key to setting execution time(T1+ T2)
11. Press ENTER key to confirm the sequence step
12. Repeat 7~10 to setting step 1~8
13. Press STORE key to confirm step 1~8
14. Press up/down key to 1 to repeat one time (initial).
15. Press STORE key to confirm the repeat count.
