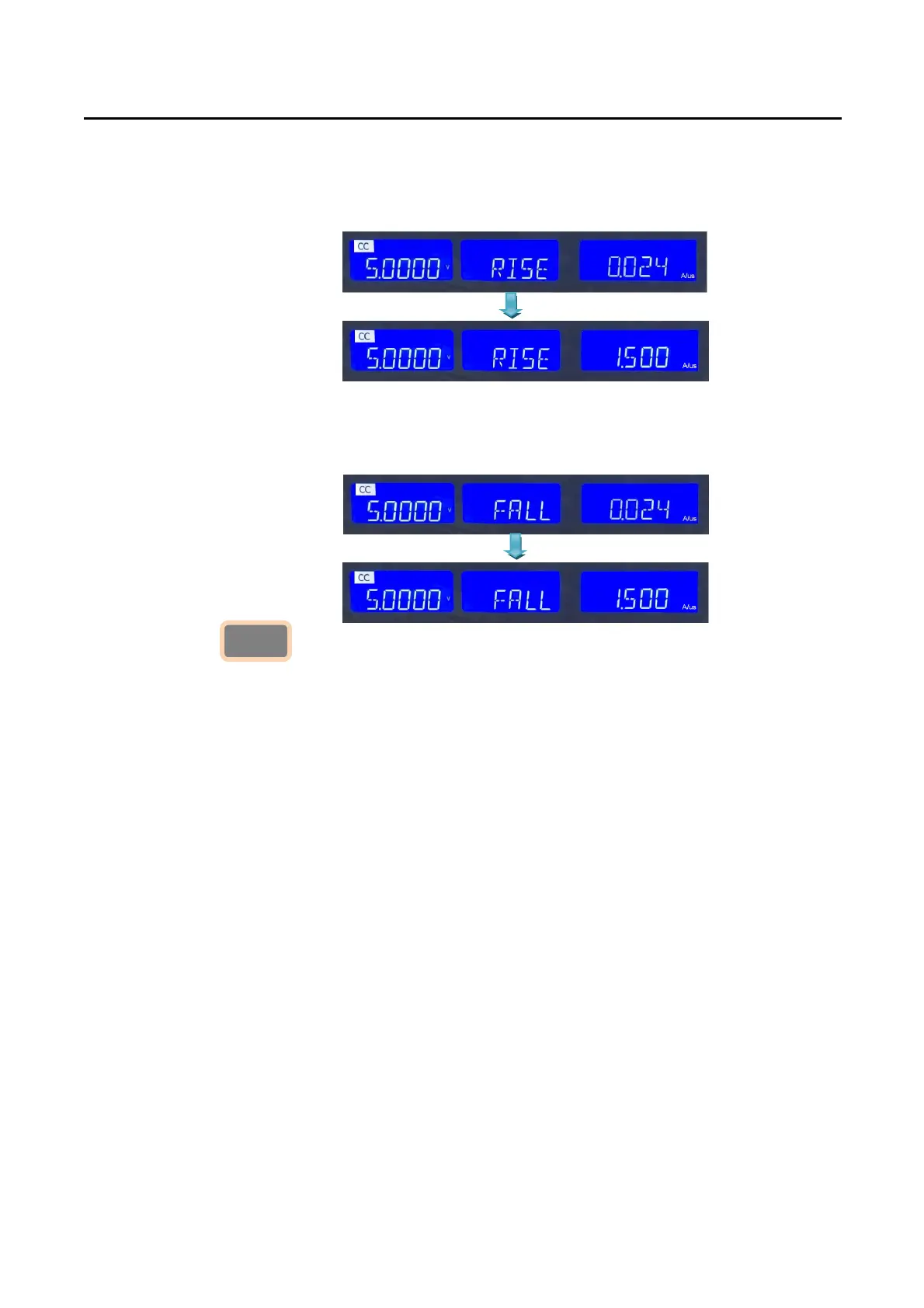

Setting rise time, Middle 5 digit LCD display will show 「RISE」, right 5 digit LCD
Display will show setting value, the unit is “A/µs”, The RISE time set range from 0.024
A/us to 1.53 A/us step 0.006 A/us by rotating the Setting knob.
Setting fall time, Middle 5 digit LCD display will show 「FALL」, right 5 digit LCD
Display will show setting value, the unit is “A/µs”, The FALL time set range from 0.024
A/us to 1.53 A/us step 0.006 A/us by rotating the Setting knob.
3.2.16. Key and LED
The CONFIG key allows the sense function to engage automatically or switched
ON. The CONFIG key also enables the LOAD to automatically turn ON/OFF When
A voltage level is reached. The polarity symbol can also be switched via the
CONFIG menu.
Each press of the CONFIG key moves the menu on one step. On first press of the
CONFIG key the button will illuminate and SENSE will be displayed on the middle
LCD. The value is adjusted with the rotary knob and can be read from the right
LCD during setting. The setting sequence is shown below:
SENSE (AUTO or ON)
LDon (Voltage at which LOAD turns ON)
LDoff (Voltage at which LOAD turns OFF)
POLAR (change polarity symbol)
exit CONFIG options
Config
To Next Page
