Settings
Contact – identity code: external 1:1
In the “contact - identity code: external 1:1” version the gamma/ L makes precisely 1 stroke per
pulse (identity code: external 1:1). No entry possible.

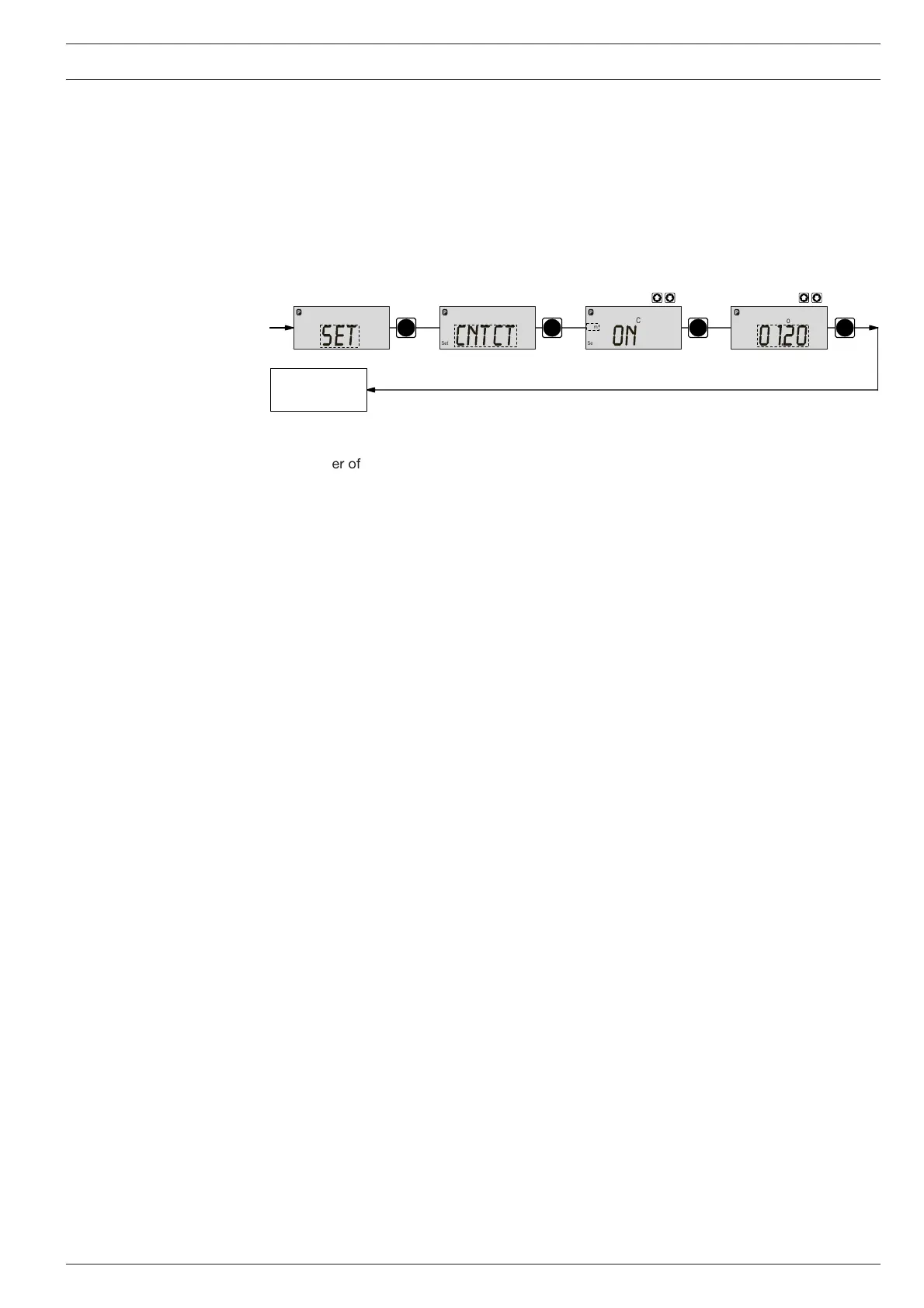

Contact – identity code: external with pulse control
In the “contact - identity code: external with external pulse control” you can enter the number of
pulses after which a stroke should be carried out. “Contact - identity code: external with
external pulse control” is intended for small dosing quantities.
P
PP
P
Continuous
display
tctnc
Set
no
Set
Mem
Contact
0
Set
Mem
Contact
021
tes
The number of strokes per pulse depends upon the factor, which you can enter. This allows you
to vary to a certain extent the input pulses by a factor of 1.01 to 99.99 and/or reduce by a factor
of 0.01 to 0.99:
“Number of strokes activated = factor x number of input pulses”
Examples Factor Pulse (sequential) Stroke number (sequential)
Increase 11 1
21 2
25 1 25
9999 1 9999
1.50 1 1.5 (1 / 2)
1.25 1 1.25 (1 / 1 / 1 / 2)
Reduction 11 1
0.50 2 1
0.10 10 1
0.01 100 1
0.25 4 1
0.40 2.5 (3 / 2) (1 / 1)
0.75 1.33 (2 / 1 / 1) (1 / 1 / 1)
Explanation of increase
At a factor of 1 For every 1 pulse, 1 stroke is activated
At a factor of 2 For every 1 pulse, 2 strokes are activated
At a factor of 25 For every 1 pulse, 25 strokes are activated
Explanation of decrease
At a factor of 1 After 1 pulse, 1 stroke is activated
At a factor of 0.5 After 2 pulses, 1 stroke is activated
At a factor of 0.1 After 10 pulses, 1 stroke is activated
At a factor of 0.75 After 2 pulses, 1 stroke is activated,
then after 1 pulse, 1 stroke is activated,
then after 2 pulses, 1 stroke is activated etc.
GUIDELINE
If a remainder occurs when the factor is processed, the gamma/ L counts up the
remainder values. When the sum reaches or exceeds “1” the gamma/ L will activate
a stroke. This ensures that the stroke number corresponds exactly to the factor
throughout the dosing operation .
