Control elements and key functions

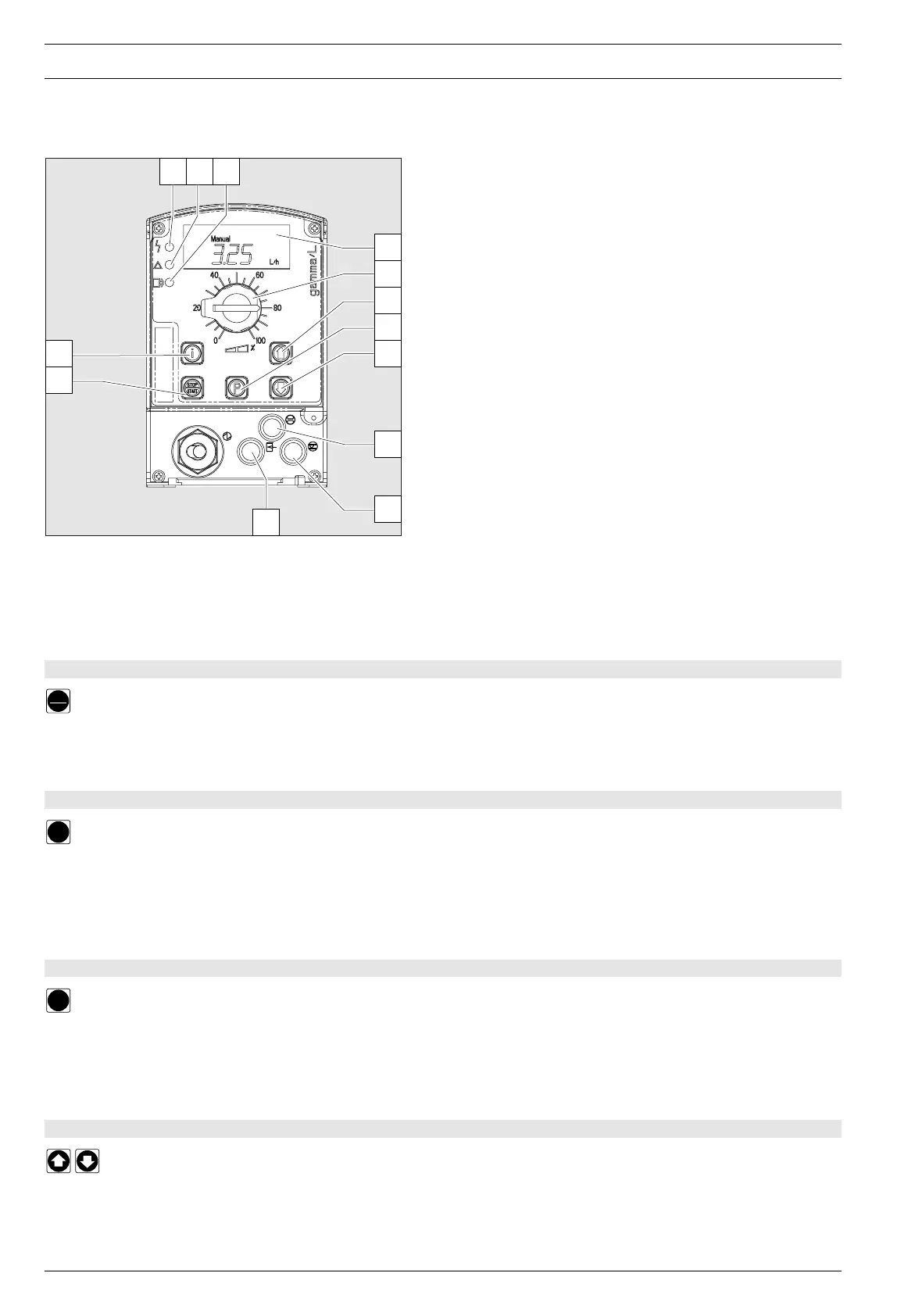

Control elements: overview
2
3
4
5
1
9
10
8
11
12
13
7
6
1 LCD display
2 Stroke length adjusting knob
3 UP key
4 P key
5 DOWN key
6 STOP/START key
7 i key
8 Fault indicator (red)
9 Warning indicator (yellow)
10 Operating indicator (green)
11 “Dosing monitor” terminal
12 “External control” terminal
13 “Float switch” terminal
Key functions
In continuous display mode In settings mode
(operating) (settings)
STOP/START key
STOP
START
Press briefly Stop pump, Stop pump,
start pump start pump
P key
P
Press briefly Start batch (in “batch” operating mode only), Confirm entry- jump to next menu
Cancel error option or continuous display
Press for 2 s Change to settings mode ---
Press for 3 s --- Jump to continuous display
Press for 15 s Load factory settings (calibration) ---
i key
i
Press x1 Toggle between continuous displays Toggle between “change individual digits”
and change a figure"
Press x2 --- For “change individual digits”:
jumps to first digit
Arrow keys UP and DOWN
Press x1 Change directly alterable values Select other settings,
(until “Set” appears) change individual digit or figure
Press simultaneously Prime ---
