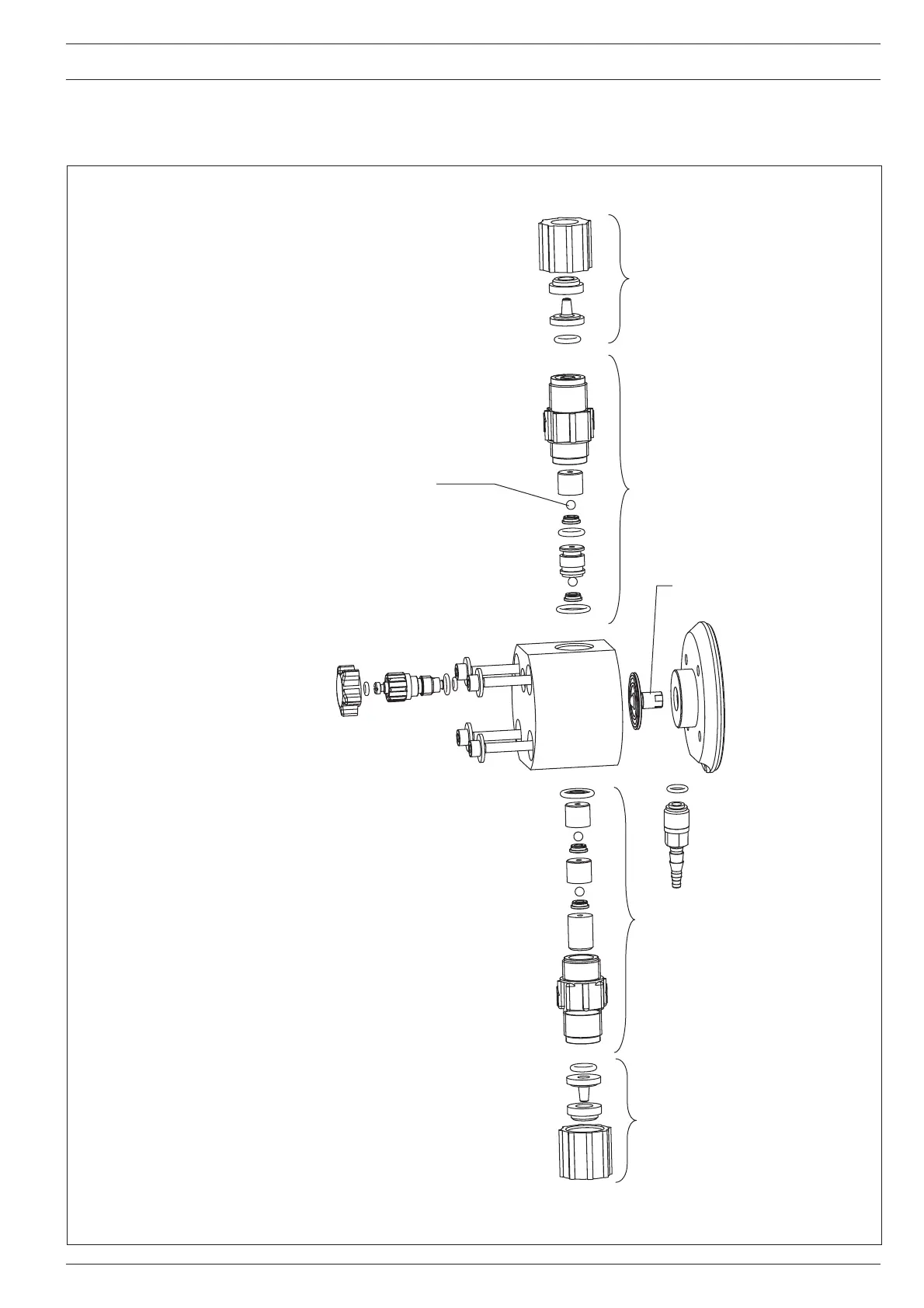

Exploded diagrams of liquid ends
Liquid end 1000 - 1005 (1605)
PC / NP with coarse/fine bleed
The listed items are included in the spare parts kit.
Subject to technical alterations.
Spare parts kits for:
Type Material Order No.
1000 PCE / NPE 1001713
1601 PCE / NPE 1001714
1602 PCE / NPE 1001715
1005 (1605) PCE / NPE 1001716
1000 PCB / NPB 1001721
1601 PCB / NPB 1001722
1602 PCB / NPB 1001723
1005 (1605) PCB / NPB 1001724
4 valve balls 404201
Connector kit
Diaphragm 1000 1000244
Diaphragm 1601 1000245
Diaphragm 1602 1000246
Diaphragm 1005 1000247
1 seal set EPDM 1001775
1 seal set FPM 1001773
Suction valve set PCE 792119
Suction valve set PCB 792026
Discharge valve set PCE 740349
Discharge valve set PCB 740348
Connector kit 6/4 PCE 817060
Connector kit 8/5 PCE 817048
Connector kit 6/4 PCB 817050
Connector kit 8/5 PCB 817053
