Connecting the Recorder to Other Devices
5
Connecting to a Display Using S-Video
S-Video offers higher quality than composite video, but lower quality than component video.
The S-Video output is located in the VIDEO OUT block on the rear of the recorder.

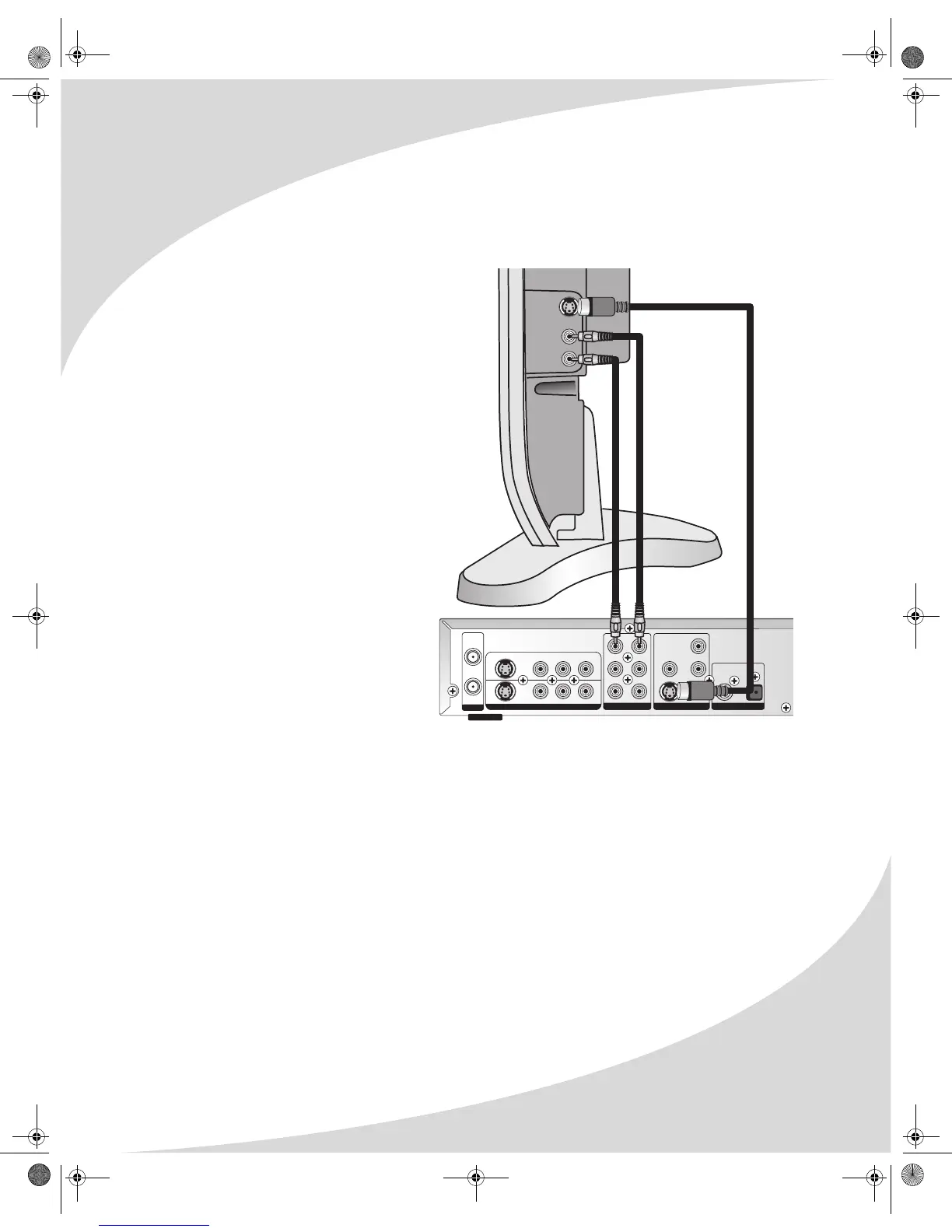

To connect to a display using S-Video:
1. Using an S-Video cable (not
included), connect the S-Video
output in the VIDEO OUT block on
the rear of the recorder to the
display’s S-Video input.
2. If you would also like to connect the
audio output to the display, connect
the FR (right) and FL (left) outputs
in the AUDIO OUT block on the rear
of the recorder to the display’s
audio input.
3. If you have connected the audio
output to the display, go to the
Setup menu, select the Playback
sub-menu and set Analog Audio
Output to 2 CH (see “Playback” on
page 36).
4. In the Setup menu, select the
General sub-menu and set Video
Output Format as appropriate for
your display (see “General” on
page 35).
5. Also in the General sub-menu, set
Progressive/Interlace to Interlace.
FR
C
SR
FL
SW
SL
Video
S-Video
Y/G
Pr/R
Pb/B
Coaxial Optical
S-Video Video R --- Audio --- L
IN
1
IN
2
RF IN
RF OUT
UHF/VHF
SOURCE INPUT AUDIO OUT VIDEO OUT
DIGITAL AUDIO OUT
L
AUDIO
(OPTIONAL)
VIDEO
R
