6 Scope of delivery
13 of 54
6. Scope of delivery
1 Qty. Lathe with attached stepping motors
1 Qty. CNC control unit MCS
1 Qty. CD with program software (including electronic manual)
1 Qty. Mains cable for CNC control unit MCS
1 Qty. Connecting cable for computer / CNC control unit MCS
1 Qty. Three-jaw chuck (Ø 100mm)
1 Qty. Travelling lathe centre
1 Qty. Ring gear drill chuck (clamped up to 10mm)
1 Qty. Operating tool
1 Qty. Multiple tool holder with 2 tool holder elements
1 Qty. Three-jaw chuck (Ø 100mm)
1 Qty. Lathe chuck guard
7. Unpacking and setting up the machine
Please note:
The information given in this manual and the knowledge it conveys is indispensable for
the safe commissioning and the safe operation of the machine and the controls!
Please read the manual attentively and make sure you have understood the contents!
Carefully unpack the individual components from the Styrofoam packaging. Please
check for completeness of the delivery by using the list in the chapter "Scope of
Delivery".
Caution!
Do not grasp the gear case, the motors, or the cover
of the motor to lift the machine out of the Styrofoam
packaging. The plastic caps could break.

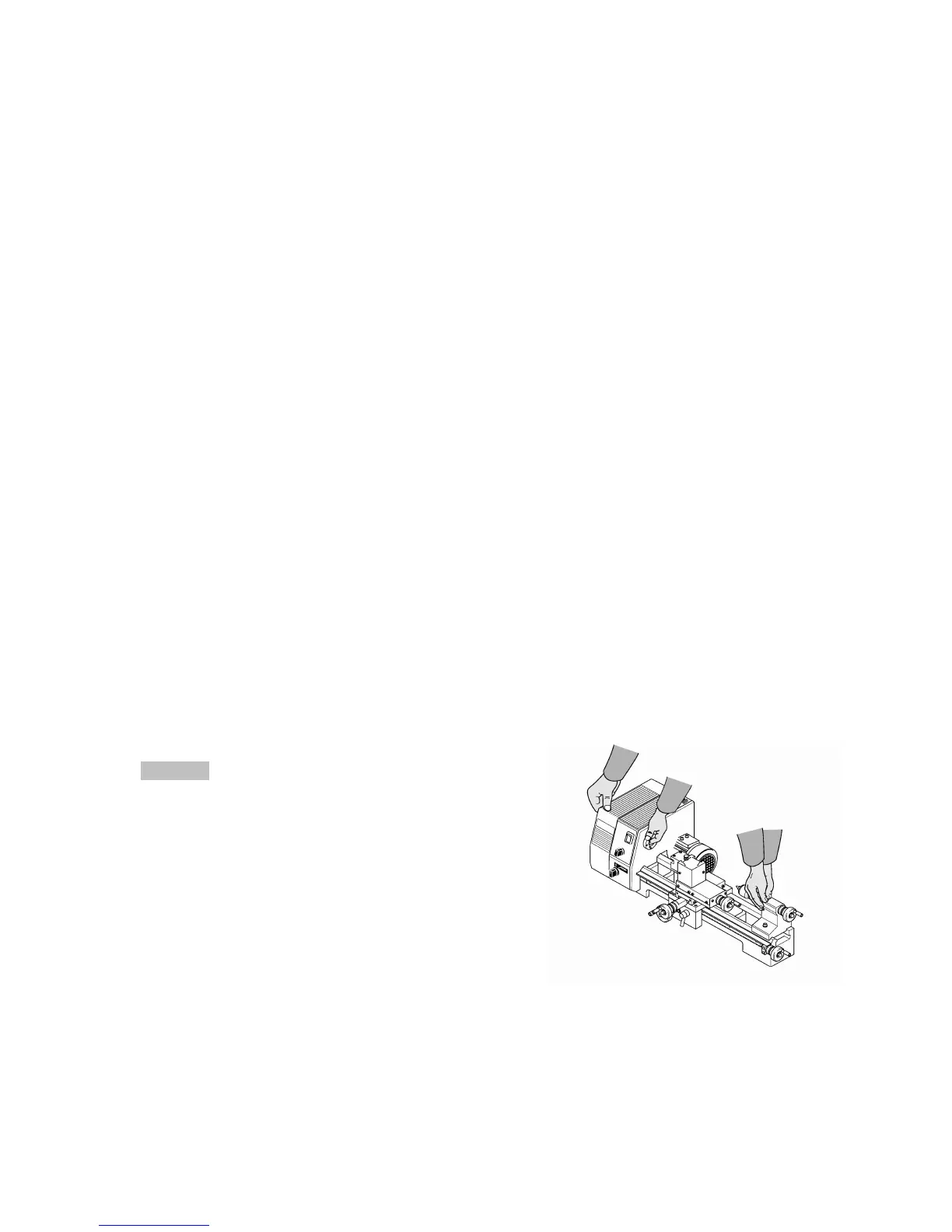

Please enlist the aid of a helper to lift your PD 400
CN out of the package as illustrated in the figure on
the right.
