2.5. Control Module Specification
No. Product Type SC0500-40S-V2 SC0500-100S-V2
1 Related Product H48050/H48074 H48050/H48074
2 Controller Working Voltage 60~600Vdc 60~600Vdc
3
System Operation
Voltage(Vdc)
60~600 60~600
4 Charge Current(Max.)(A) * 40 80
5 Discharge Voltage(Vdc) 60~600 60~600
6
Discharge Current(Max.)(A)
*
40
80
7 Self-consumption Power(W)
8 Dimension(W*D*H,mm) 442*390*87 442*390*132
9 Communication Modbus RTU\CAN\LAN Modbus RTU\CAN\LAN
10 Protection Class IP20 IP20
11 Weight(kg) 7 9
12 Operation Life(Years) 15+ 15+
13
Operation Temperature(
℃
)
-20~65 -20~65
14
Storage Temperature(
℃
)
-40~80 -40~80
15 Product Certificate TUV, CE TUV, CE
* Maximum current is the values only for controller, the current
value of the system is based on the battery module

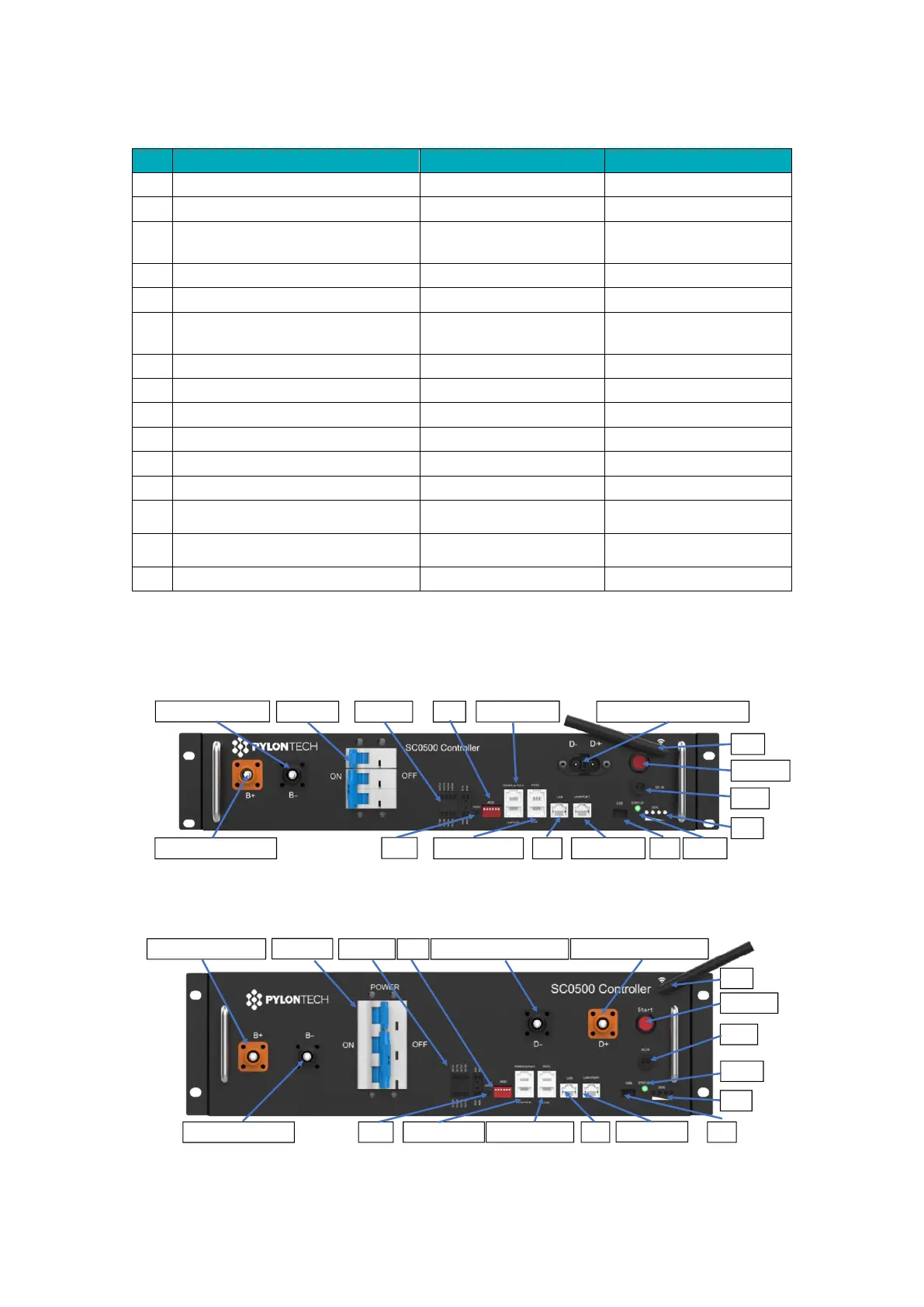

2.5.1. Control Module Front Interface
SC0500-40S-V2
SC0500-100S-V2
Power Terminal+ To battery
Power Switch
Start Button
Dry Contact
ADD
Internal CAN A&B
Power Terminal- To battery
External Power Terminal - To PCS
WIFI
Reset
RS232/External CAN
LAN
DC IN
STATUS
SOC
USB
Linkport to BAT
External Power Terminal + To PCS
Power Terminal- To battery
External Power Terminal +/- To PCS
WIFI
Power Terminal+ To battery
Power Switch
Start Button
Dry Contact
ADD
Internal CAN A&B
Reset
RS232/External CAN
LAN
DC IN
STATUS
SOC
USB
Linkport to BAT
