26
3.5.3. Mechanical Installation of the battery module
Single battery module is 24/32kg. If without handling tools must
have more than 1 man to handling with it.
Install the buckle nuts. The position of nuts must meet the position
of the battery modules.
Install the all battery modules in. Each module uses 4 screws to
fix.

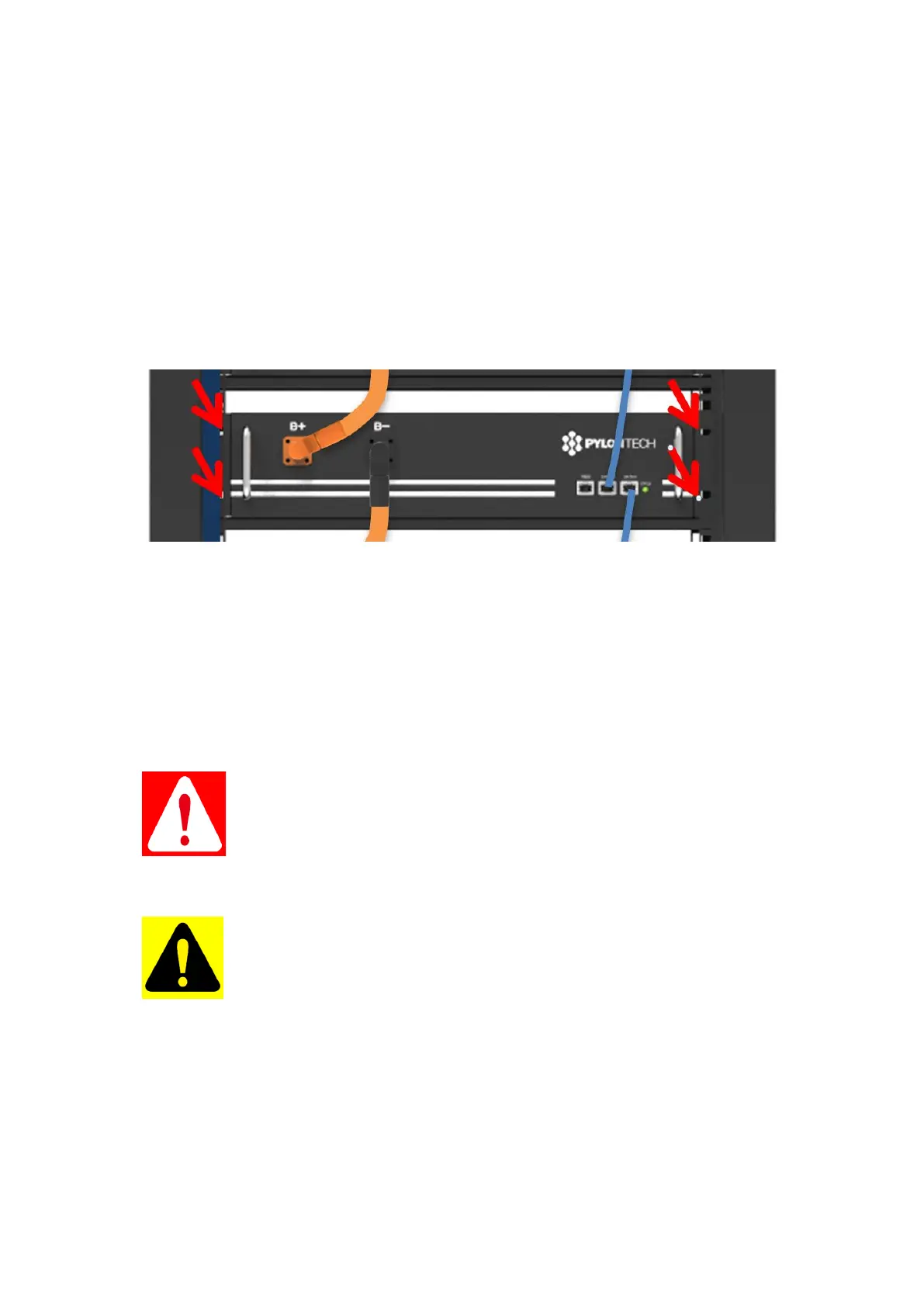

3.5.4. Mechanical Installation of the control module
Install the buckle nuts. The position of nuts must meet the position
of the control module (BMS).
Install the control module (BMS) in. Each module uses 4 screws to
fix.
3.6. Cable Connection
3.6.1. Caution
Danger: The battery system is high voltage DC system.
Must make sure the grounding of the rack is stable and
reliable.
Danger: All the plugs and sockets of the power cables
must be orange to orange and black to black. Otherwise it will cause
personal injury.
Danger: No short circuit or reserved connection of the
battery system’s anode and cathode.
Caution: Wrong communication cables connection will cause
the battery system failure.
3.6.2. Grounding
