The PowerCube-X1/X2-V2 modules’ grounding is based on
metal directly touch between the module’s surface and
rack’s surface. So it doesn`t need grounding cables at
all. If uses normal rack, it should remove the paint at
the corresponding grounding point.

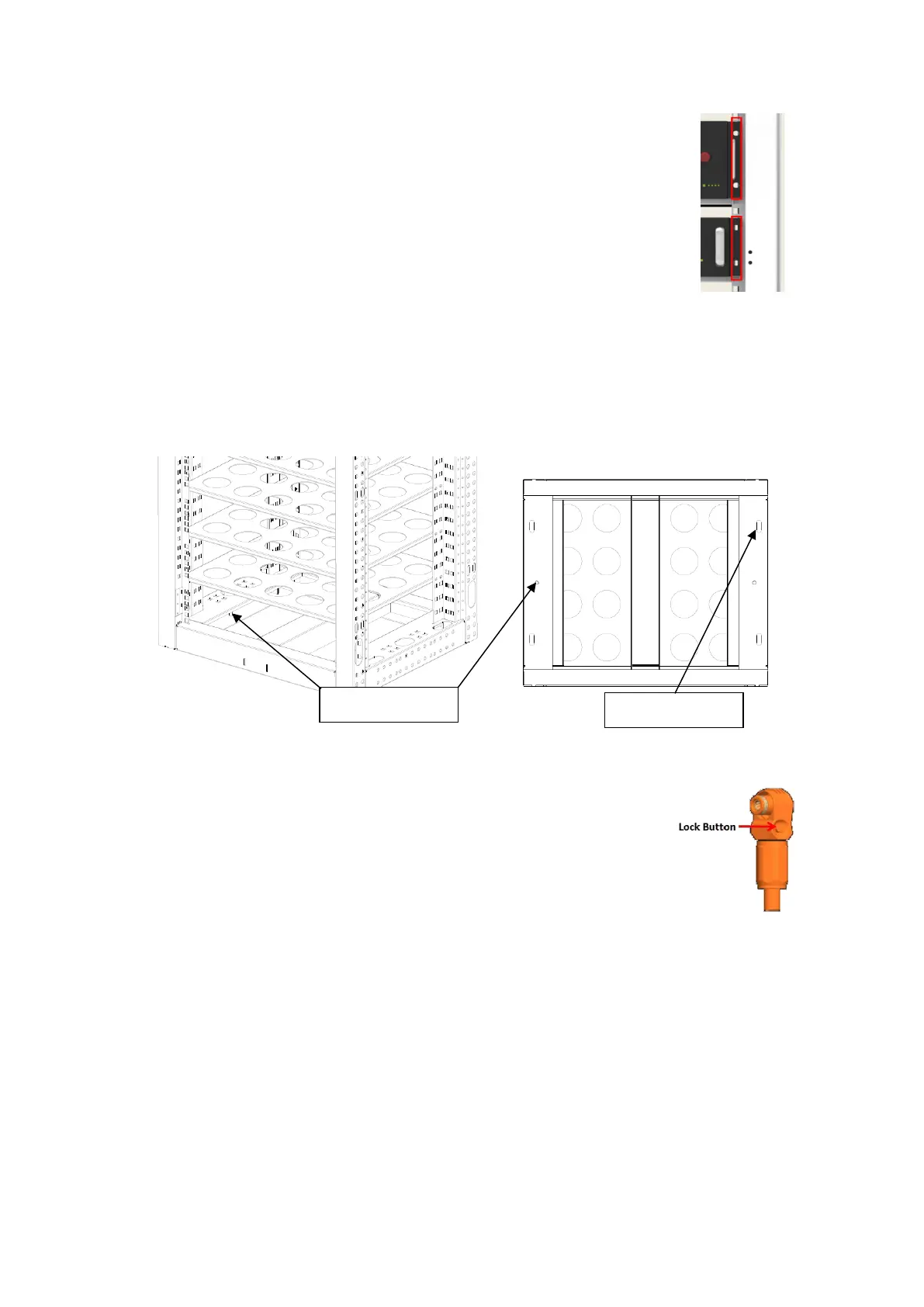

Rack Grounding:
If there is a grounding metal frame outside the rack, for
example, the metal angle steel frame at the bottom of the
container, the fix hole of the fix frame can be fixed directly with
the metal frame of the container. Then through the grounding of the
container to ensure reliable grounding.
The cable shall be copper with yellow-green color.
If want to connect the ground cable, it can be connected to the M8
grounding bolt on the frame base. Grounding cable must ≥10AWG.
3.6.3. Internal power and communication cable connection within
Rack
Note: Power cable uses water-proofed connectors. It
must keep pressing this Lock Button during pulling out
the power plug.
