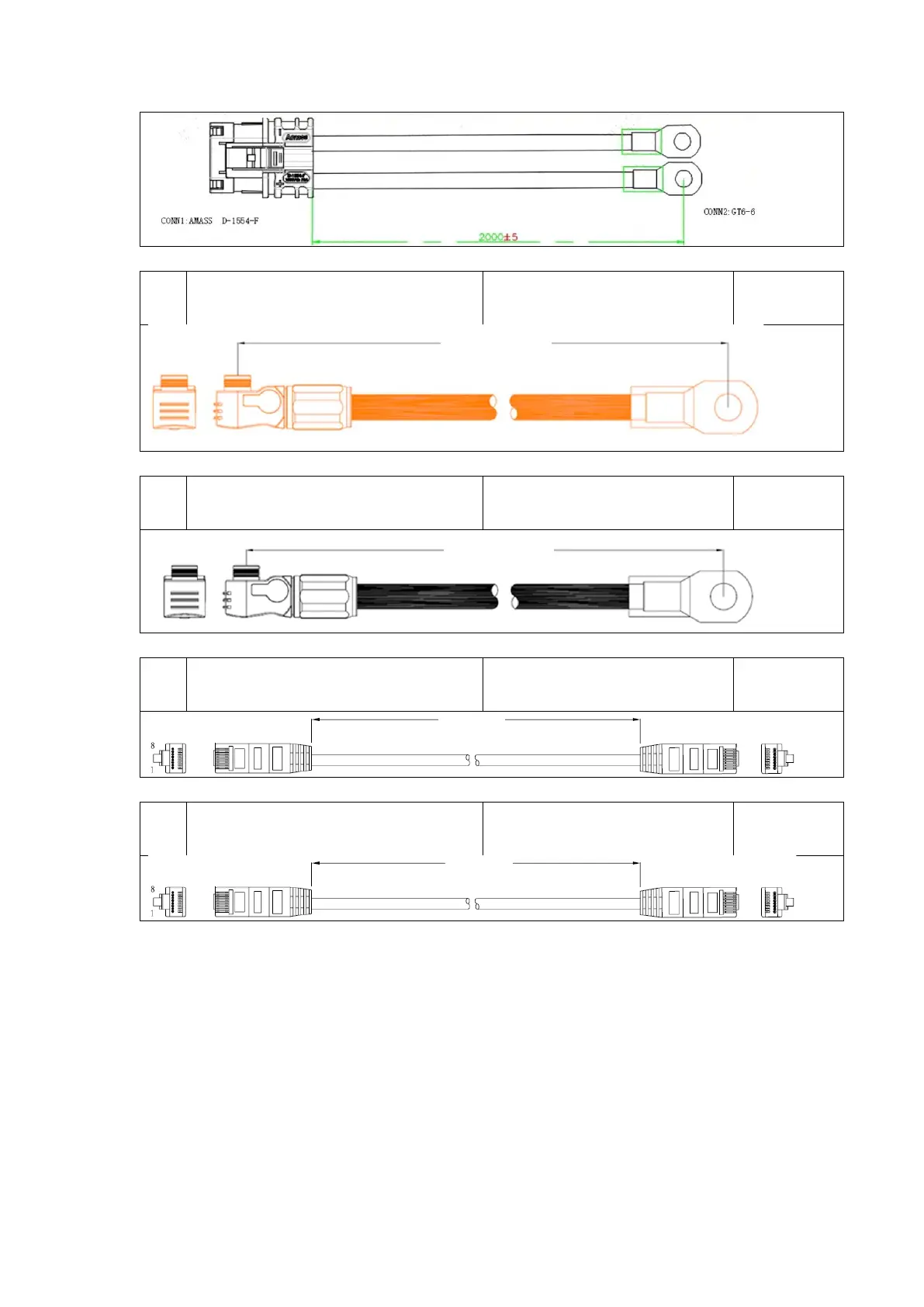

24
For SC0500-100S-V2 control module:
A5
External Power Cable + (BMS
'D+' to PCS)
Power Cable/Orange/2m/
4AWG/SURLOK Terminal/25-8
ring terminal
1pcs/contr
ol module
A6
External Power Cable -(BMS 'D-
' to PCS)
Power Cable/Black/2m/
4AWG/SURLOK Terminal/25-8
ring terminal
1pcs/contr
ol module
3.4.3. Communication Cable
B1
Battery Cascade Communication
Cable (0.18m)
Black/0.18m/8 Core Super
5th Class Twisted-pair
Wire/RJ45
1pcs/batte
ry module
B2
External Battery CAN
Communication Cable (direct)
Black/3.5m/Super 5th
Class Twisted-pair Wire/2
RJ45 terminal
1pcs/syste
m
180
3500
2000
2000
