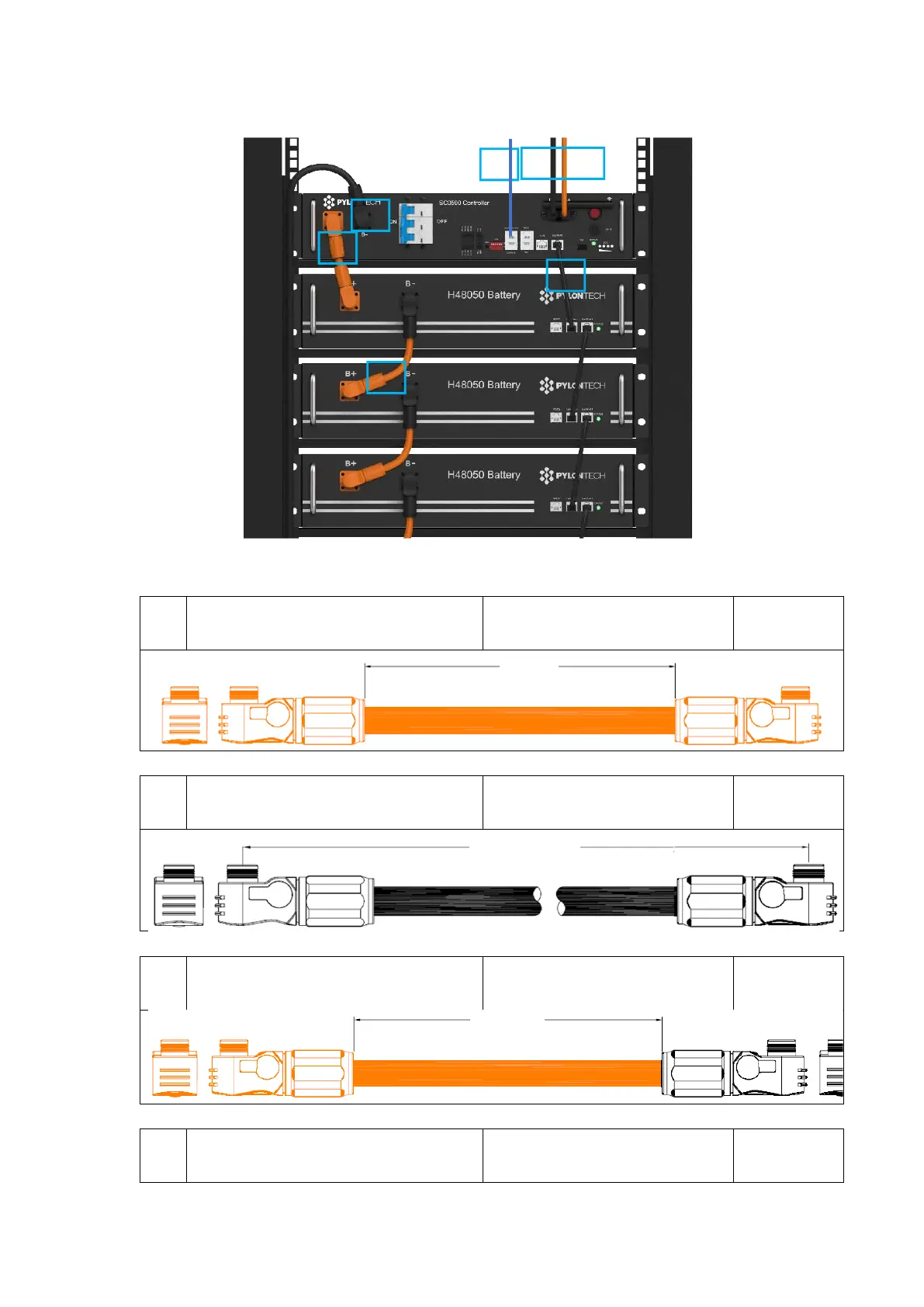

3.4.2. DC Power Cable
A1
Power Cable + (Battery Module
and Control Module Serial
Connection)
Orange/0.16m/4AWG/2
Orange Surlok Terminal
1pcs/contr
ol module
A2
Power Cable - (Battery Module
and Control Module Serial
Connection)
Black/2m/4AWG/2 Black
Surlok Terminal
1pcs/contr
ol module
A3
Power Cable (Between the
Battery Modules)
Orange/0.18m/4AWG/1
Orange & 1 Black Surlok
Terminal
1pcs/batte
ry module
For SC0500-40S-V2 control module:
A4
External Power Cable -/+
Red-Black/2m/10AWG/D-
1554-F/GT6-6 ring
terminal
1pcs/contr
ol module
A3
A2
A1
B1
B2
A4/A5/A6
160
2000
180
