VOCALISER INSTALLATION MANUAL
Page: 8 RINS119-5

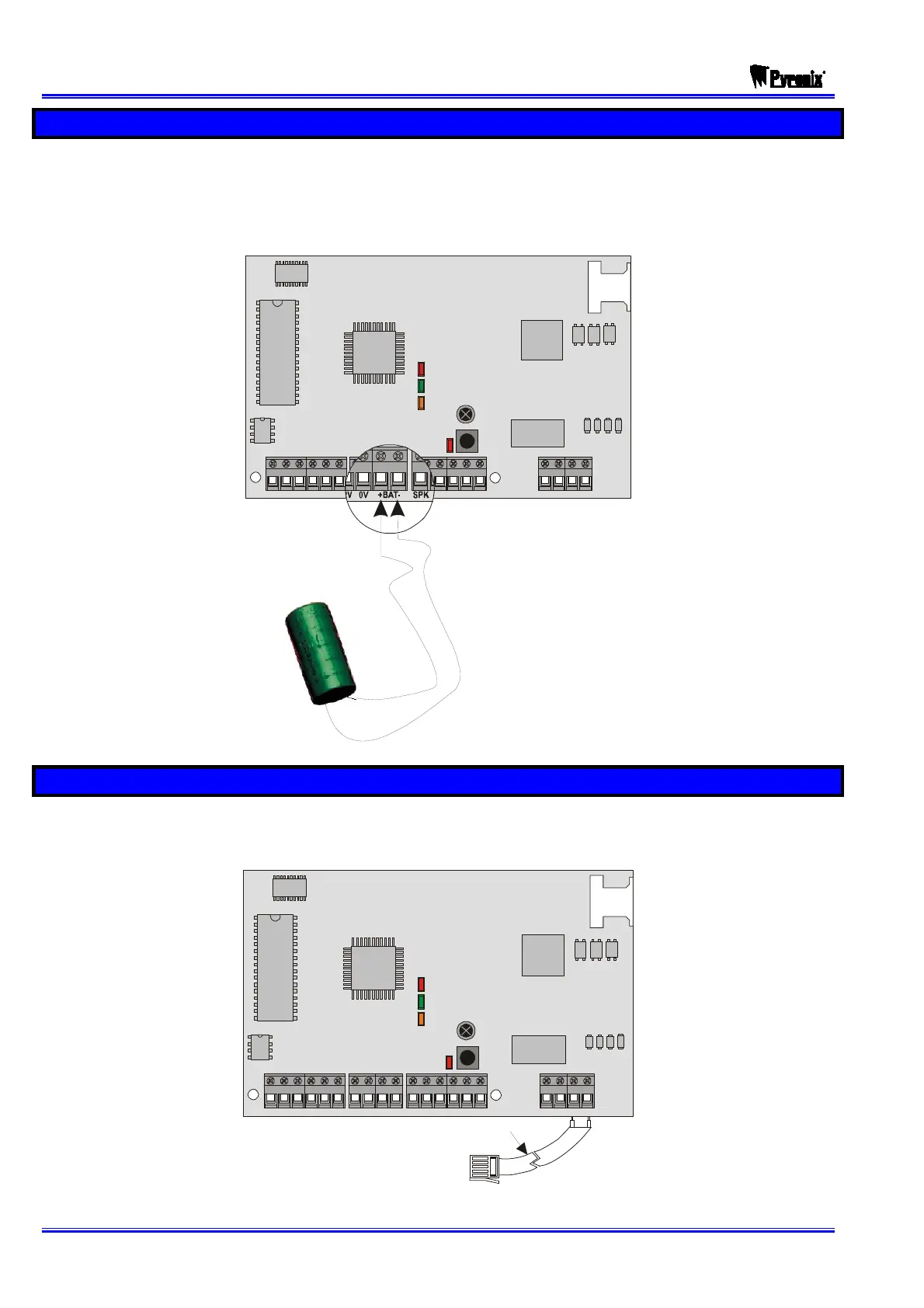

3.6 Connecting The Battery
If the mains power is lost on the Vocaliser, all alarm messages will be erased from memory,
therefore it is useful to connect a battery to the Vocaliser stop this from happening, the battery
will store the messages in the memory for approximately one hour.
A 7.2V NiCad battery is connected to the Vocaliser via the terminals +BAT- as shown below:
4FLTACK 12V 0V +BAT- SPK M- M+ MIC T T A1 B1 A B 12 3
Vocaliser
Battery
7.2V NiCad
Battery
3.7 Connection To The Telephone Line
The supplied cable may be wired either way round using the red and white wires, into the
terminals labelled “A” and “B” as shown below.
Te l e p h one P lu
g
4FLTACK 12V 0V +BAT- SPK M- M+ MIC T T A1 B1 A B 12 3
Vocaliser
Not Su
pp
lied
