VOCALISER INSTALLATION MANUAL
Page: 18 RINS119-5

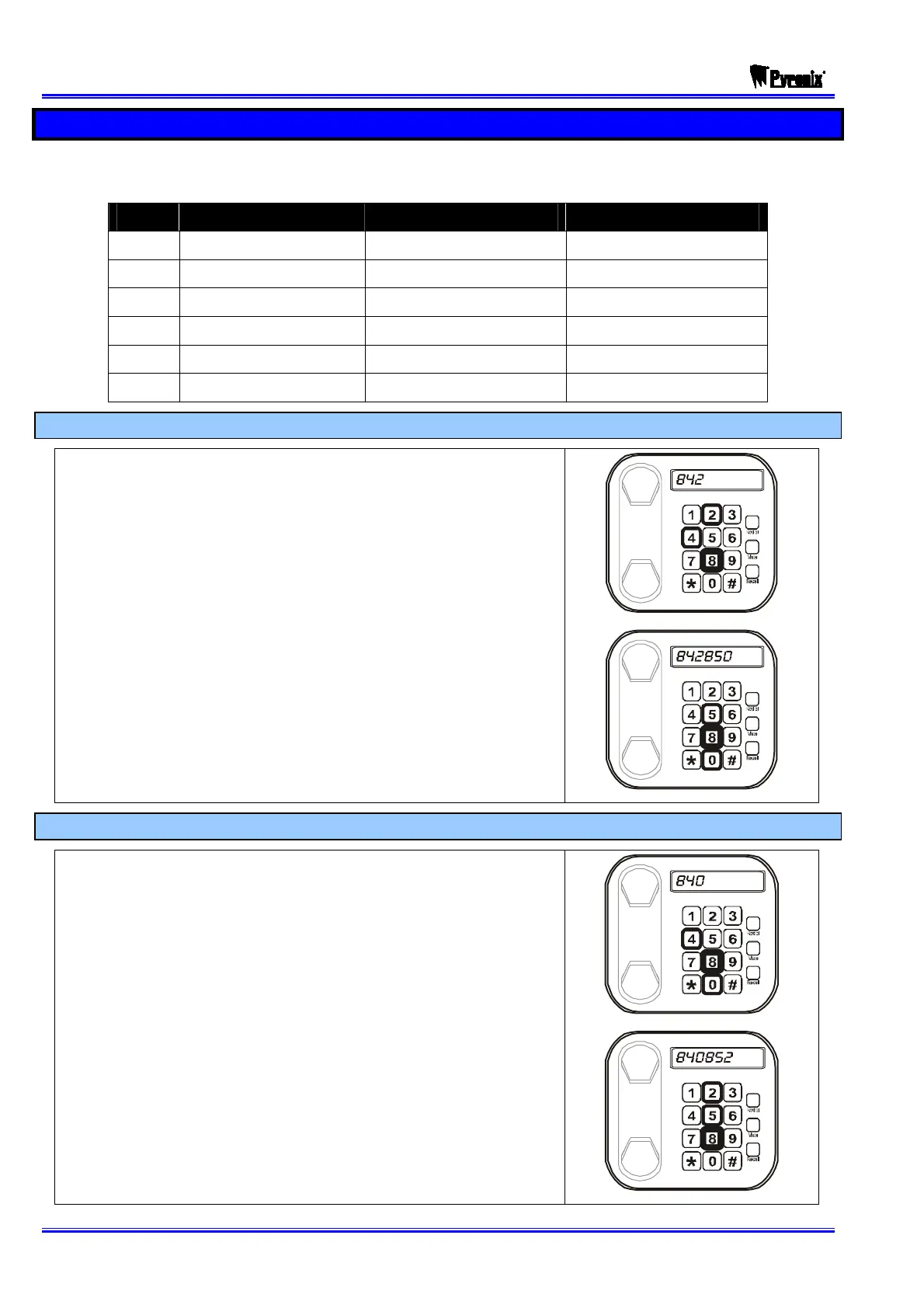

7.3 The Output 2 State (ACK)
At default the ACK output is programmed as negative applied. The following states can be
chosen this output:
State Output Type “OFF State” “ON State”
1 Negative Applied No Voltage 0V
2 Negative Removed 0V No Voltage
3 Positive Applied No Voltage 12V
4 Positive Removed 12V No Voltage
5 Negative Logic 12V 0V
6 Positive Logic 0V 12V
7.3.1 Output 2 State 1 Negative Applied:
¾ Dial  for Negative applied for Output 2
¾ A ‘BEEP’ will be heard
¾ Dial #
¾ “ SAVED, PLEASE ENTER COMMAND” will be
heard
¾ Dial 
¾ a ‘BEEP’ will be heard
¾ Dial 
¾ “ SAVED, PLEASE ENTER COMMAND” will be
heard. You will be returned to the engineer menu.
7.3.2 Output 2 State 2 Negative Removed:
¾ Dial  for negative removed for Output 2
¾ a ‘BEEP’ will be heard
¾ Dial 
¾ “SAVED, PLEASE ENTER COMMAND” will be
heard
¾ Dial 
¾ a ‘BEEP’ will be heard
¾ Dial #
¾ “SAVED, PLEASE ENTER COMMAND” will be
heard You will be returned to the engineer menu.
