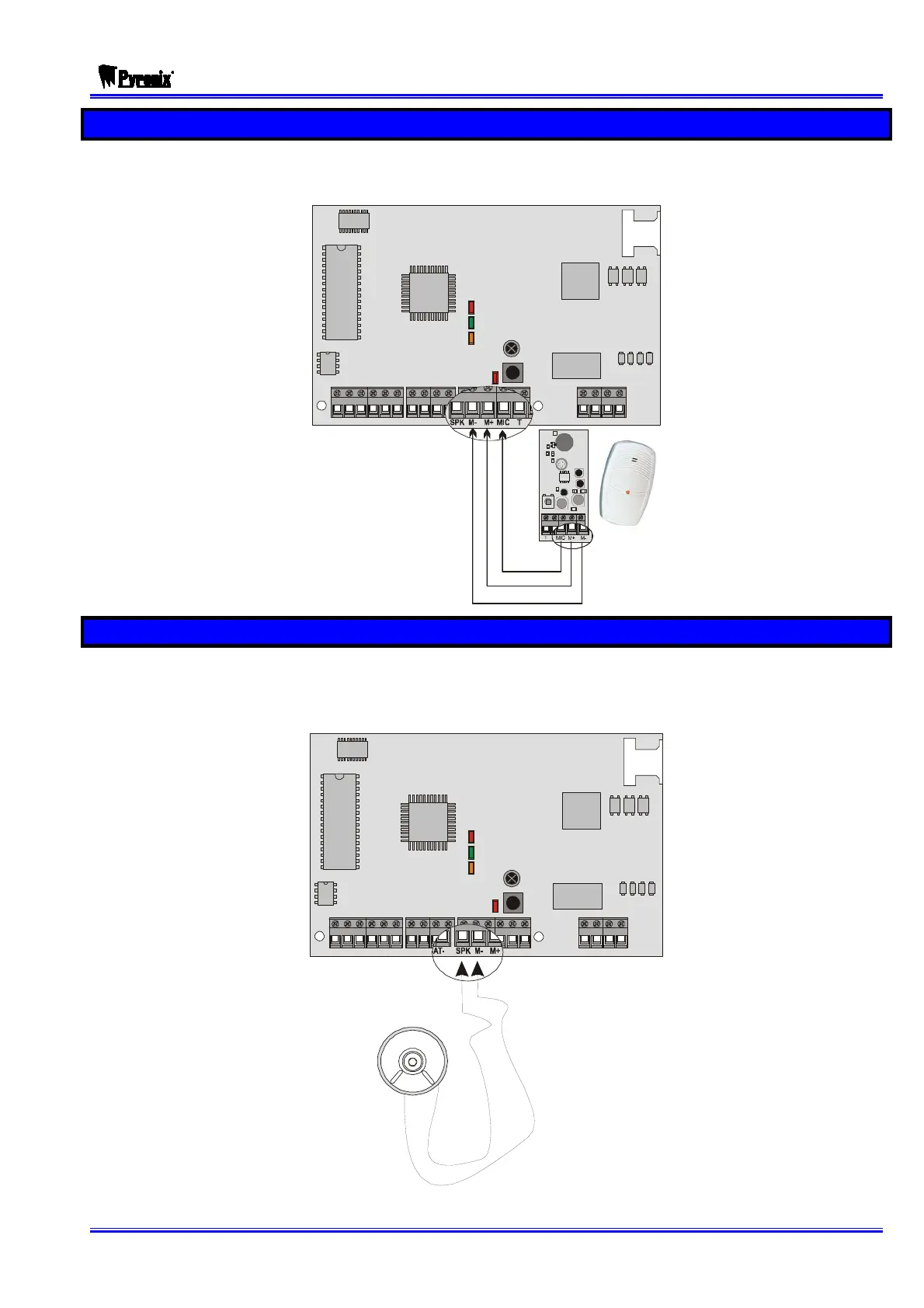

3.4 Connecting Microphones
The Vocaliser may have up to 3 number of microphones connected, which will monitor the
premises. This is used when the listening in function is enabled (see the user manual).
4FLT
A
CK 12V 0V +BAT- SPK M- M+ MIC T T A1 B1 A B 12 3
Vocaliser
3.5 Connecting Speakers
The Vocaliser can have any number of speakers connected, providing it doesn’t exceed
16ohms. This enables the user to speak into the premises and is used in the ‘Talking in’
function (see user manual).
4FLT
A
CK 12V 0V +BAT- SPK M- M+ MIC T T A1 B1 A B 12 3
Vocaliser
Speaker
(16 ohm)
Not Su
pp
lied
