VOCALISER INSTALLATION MANUAL
RINS119-5 Page: 15

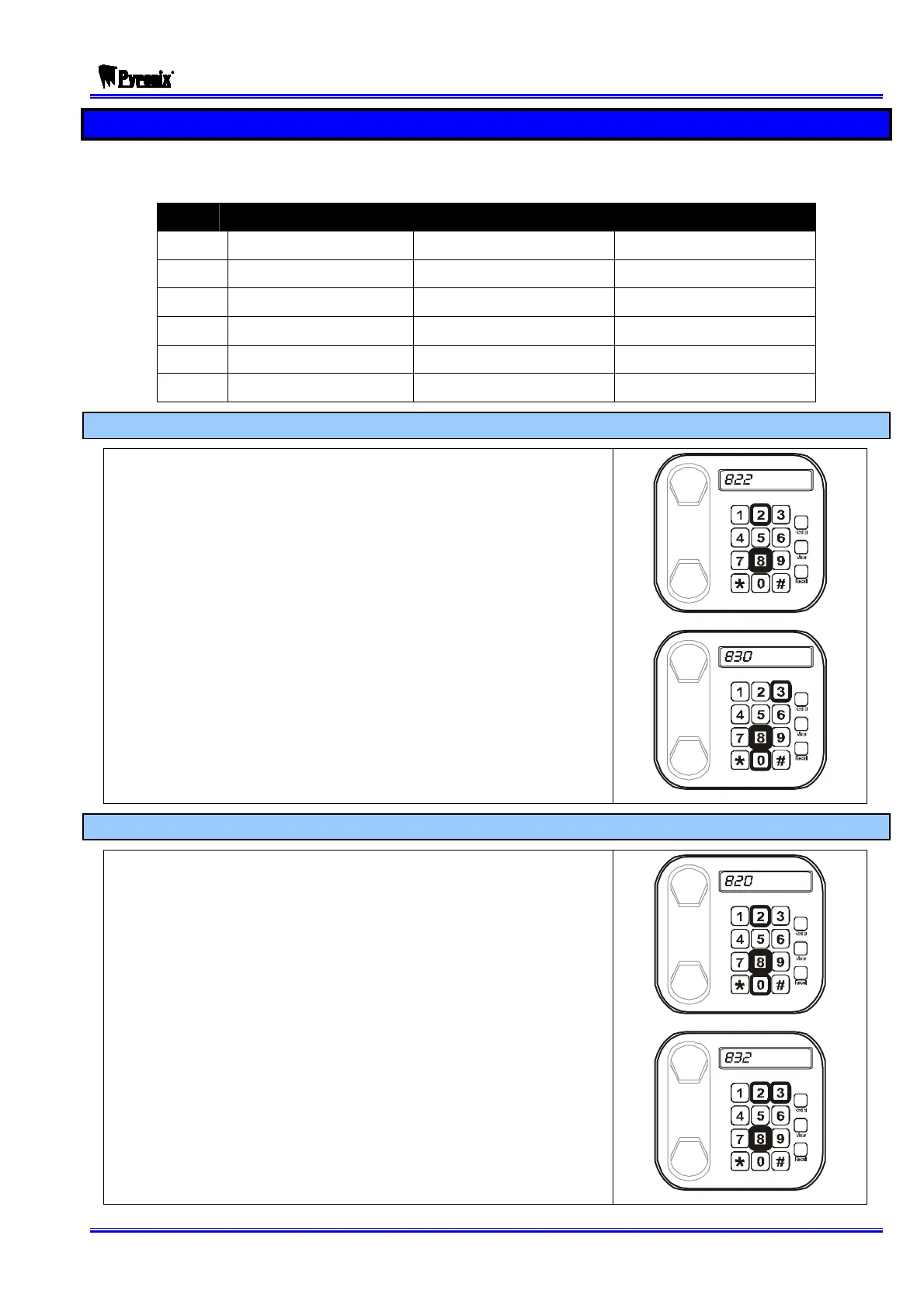

7.2 The Output 1 State (FLT)
At default the FLT output is programmed as negative applied. The following states can be
chosen for this output:
State Output Type “OFF State” “ON State”
1 Negative Applied No Voltage 0V
2 Negative Removed 0V No Voltage
3 Positive Applied No Voltage 12V
4 Positive Removed 12V No Voltage
5 Negative Logic 12V 0V
6 Positive Logic 0V 12V
7.2.1 Output 1 State 1 Negative Applied:
¾ Dial # for Negative applied for Output 1
¾ A ‘BEEP’ will be heard
¾ Dial #
¾ “ SAVED, PLEASE ENTER COMMAND” will be
heard
¾ Dial 
¾ a ‘BEEP’ will be heard
¾ Dial 
¾ “ SAVED, PLEASE ENTER COMMAND” will be
heard. You will be returned to the engineer menu.
7.2.2 Output 1 State 2 Negative Removed:
¾ Dial # for Negative removed for Output 1
¾ A ‘BEEP’ will be heard
¾ Dial 
¾ “ SAVED, PLEASE ENTER COMMAND” will be
heard
¾ Dial 
¾ a ‘BEEP’ will be heard
¾ Dial #
¾ “ SAVED, PLEASE ENTER COMMAND” will be
heard. You will be returned to the engineer menu.
