Quantech QTC4 STYLE A Series User Manual

QUANTECH
28
SECTION 3 - RIGGING, HANDLING AND STORAGE
FORM QTC4-NM1
ISSUE DATE: 4/2/2018

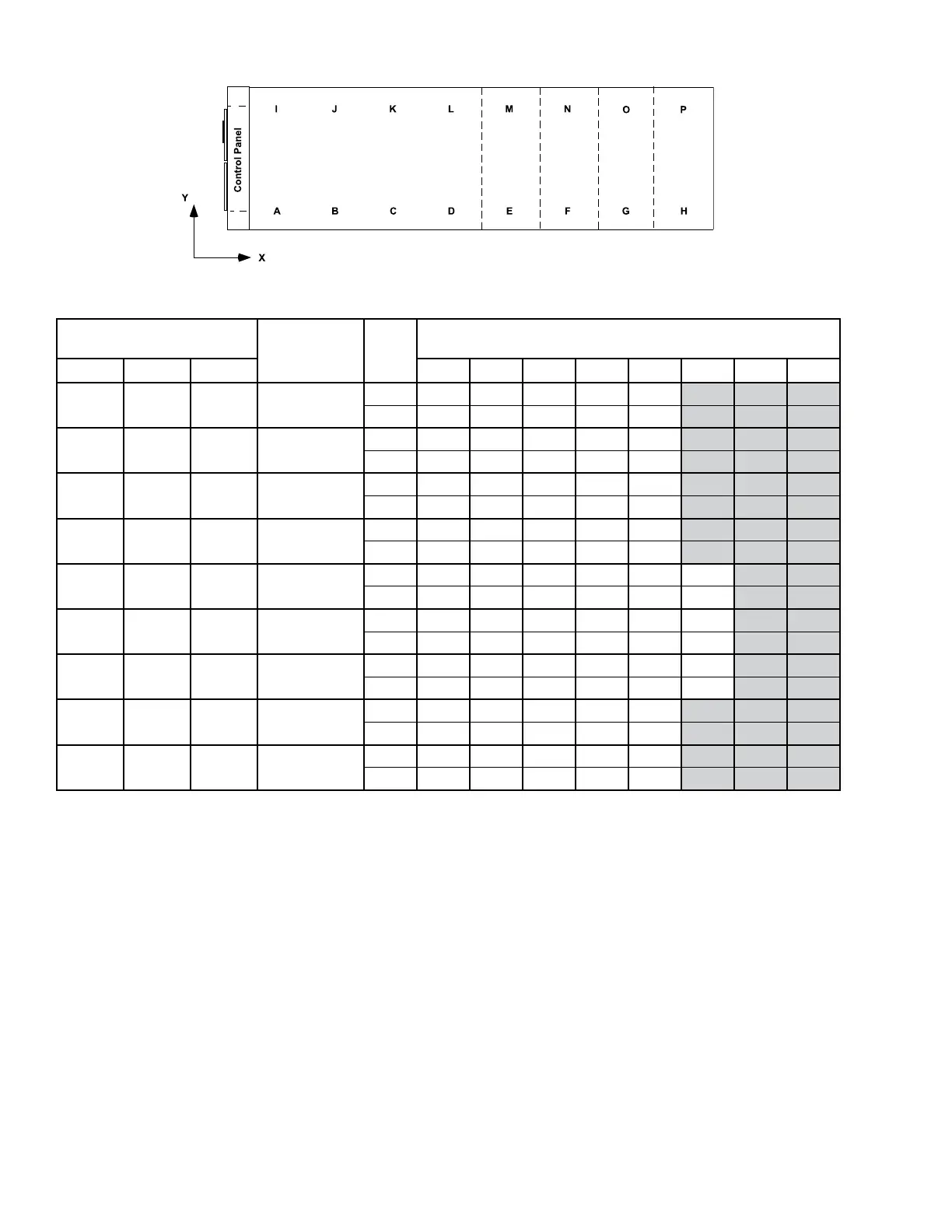

TABLE 1 - UNIT RIGGING (CONT'D)
LD18582
QTC4 MODEL
DESCRIPTION UNITS
RIGGING HOLES
MODEL COND EVAP A B C D E F G H
230 S B
Rigging Hole
Location
inches 18 60 137 215 272
mm 464 1533 3485 5456 6919
240 H C
Rigging Hole
Location
inches 18 60 149 240 324
mm 464 1533 3789 6088 8218
240 P C
Rigging Hole
Location
inches 12 73 163 254 347
mm 314 1845 4144 6443 8825
260 S B
Rigging Hole
Location
inches 18 60 137 215 302
mm 464 1533 3484 5455 7670
270 S D
Rigging Hole
Location
inches 12 73 121 181 264 324
mm 314 1845 3073 4601 6717 8217
270 H E
Rigging Hole
Location
inches 12 73 121 181 264 324
mm 314 1845 3073 4601 6717 8218
270 P E
Rigging Hole
Location
inches 12 73 121 181 243 347
mm 314 1845 3073 4601 6169 8825
290 H E
Rigging Hole
Location
inches 12 73 179 290 347
mm 314 1845 4551 7358 8825
300 S C
Rigging Hole
Location
inches 12 73 161 254 347
mm 314 1845 4092 6443 8825
NOTE: Rigging and lifting the unit must be done by a professional rigger safely, as discussed in this section. The rigger should locate the center
of gravity through trial lifts to account for possible variations in unit conguration. Contact your nearest Quantech Sales Ofce for weight data.
