SECTION 3 – TRANSPORTATION, HANDLING AND STORAGE
QUANTECH
30
Lifting by Crane / Hoist
A spreader frame should be used to prevent damage to
the unit from the lifting chains (see Figure 8 on page
30).
The unit must only be lifted at the points
provided.
LIFTING WEIGHTS
For details of weights and weight distribution see Fig-
ure 8 on page 30.
LIFTING WEIGHTS - HIGH EFFICIENCY (HE)
QWC3 MODEL - LBS. (KG)
060THE 070THE 080THE 090THE 095THE 115THE 130THE 150THE
4533
(2056)
4911
(2228)
5089
(2308)
5773
(2619)
6253
(2836)
5905
(2678)
7087
(3215)
6863
(3113)
LIFTING WEIGHTS - STANDARD EFFICIENCY (SE)
QWC3 MODEL - LBS. (KG)
050TSE 060TSE 070TSE 080TE 090TSE 100TSE 115TSE 130TSE 150TSE 170TSE 200TSE
3515
(1594)
3883
(1761)
4061
(1842)
4489
(2036)
5023
(2278)
5157
(2339)
5155
(2338)
5603
(2541)
7189
(3261)
7318
(3319)
7673
(3480)

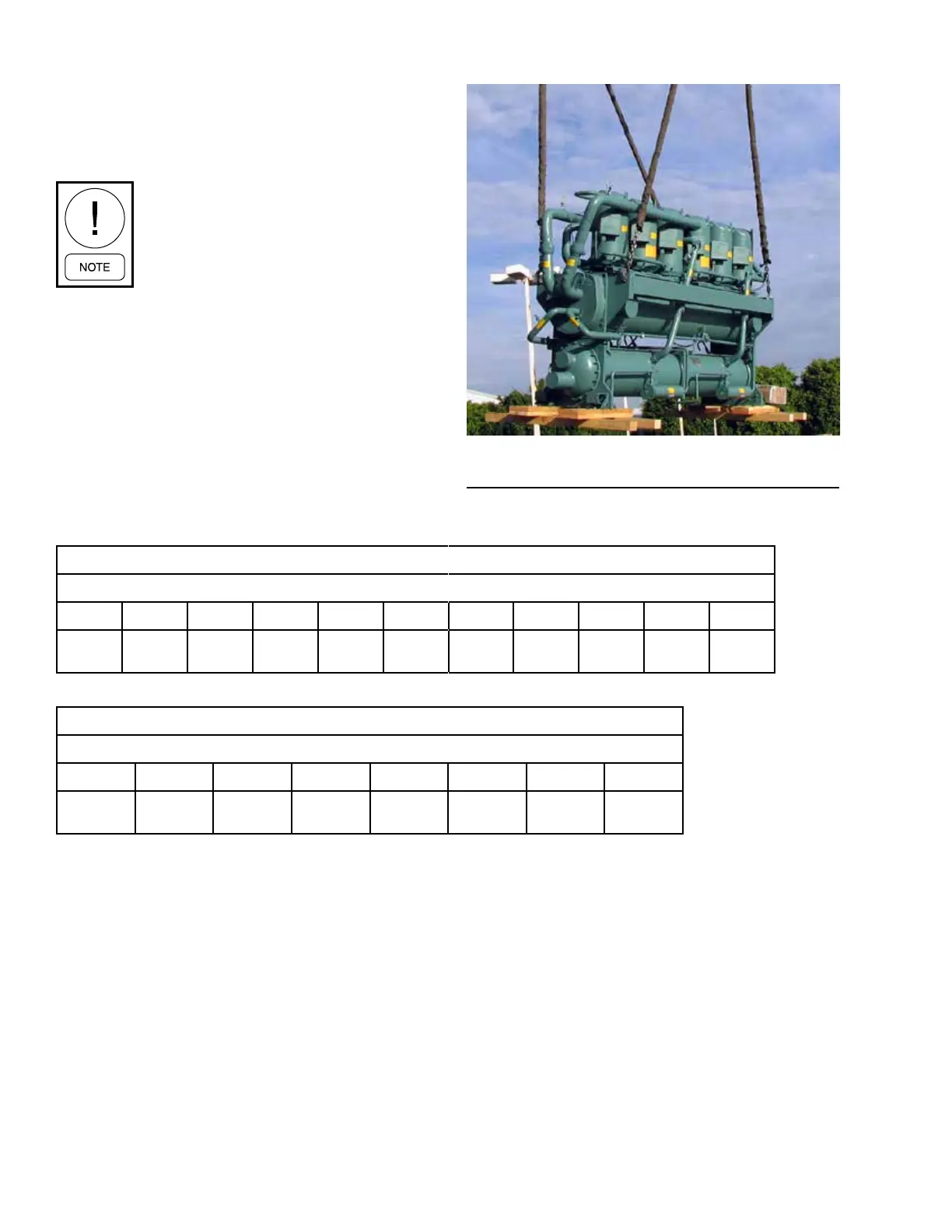

FIGURE 8 - CHILLER RIGGING AND LIFTING
WEIGHTS
