SECTION 5 – TECHNICAL DATA
QUANTECH
60
SINGLE-POINT SUPPLY CONNECTION – TERMINAL BLOCK,
NON-FUSED DISCONNECT SWITCH OR CIRCUIT BREAKER

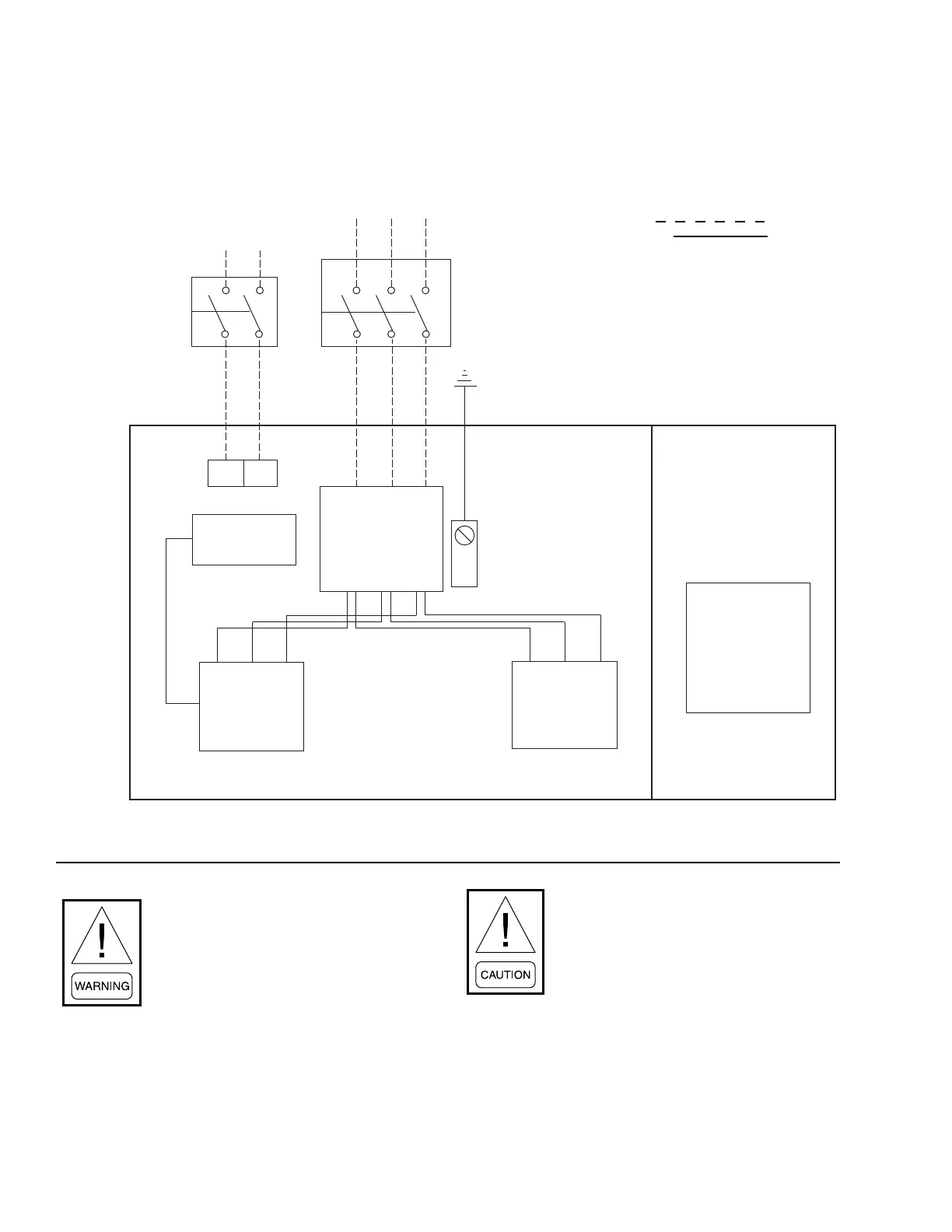

FIGURE 20 - SINGLE POINT POWER SUPPLY CONNECTION – STANDARD UNIT
LD14536
STD FIELD PROVIDED 120-1-60
POWER SUPPLY
(NOT REQUIRED IF OPTIONAL
CONTROL TRANSFORMER FITTED)
FIELD PROVIDED
UNIT POWER SUPPLY
12
Control
Transformer*
Circuit
#1
Circuit
#2
Micropanel
Optional*
Term Block
or
NF Disc SW*
or
Circuit Breaker*
GRD
LEGEND:
Field Wiring
Factory Wiring
It is possible that multiple sources of
power can be supplying the unit power
panel. To prevent serious injury or death,
the technician should verify that NO
LETHAL VOLTAGES are present inside
the panel AFTER disconnecting power,
PRIOR to working on equipment.
The unit evaporator heater uses 120VAC.
Disconnecting 120VAC power from the
unit, at or below freezing temperatures,
can result in damage to the evaporator
and unit as a result of the chilled liquid
freezing.
