SECTION 5 – TECHNICAL DATA

QUANTECH

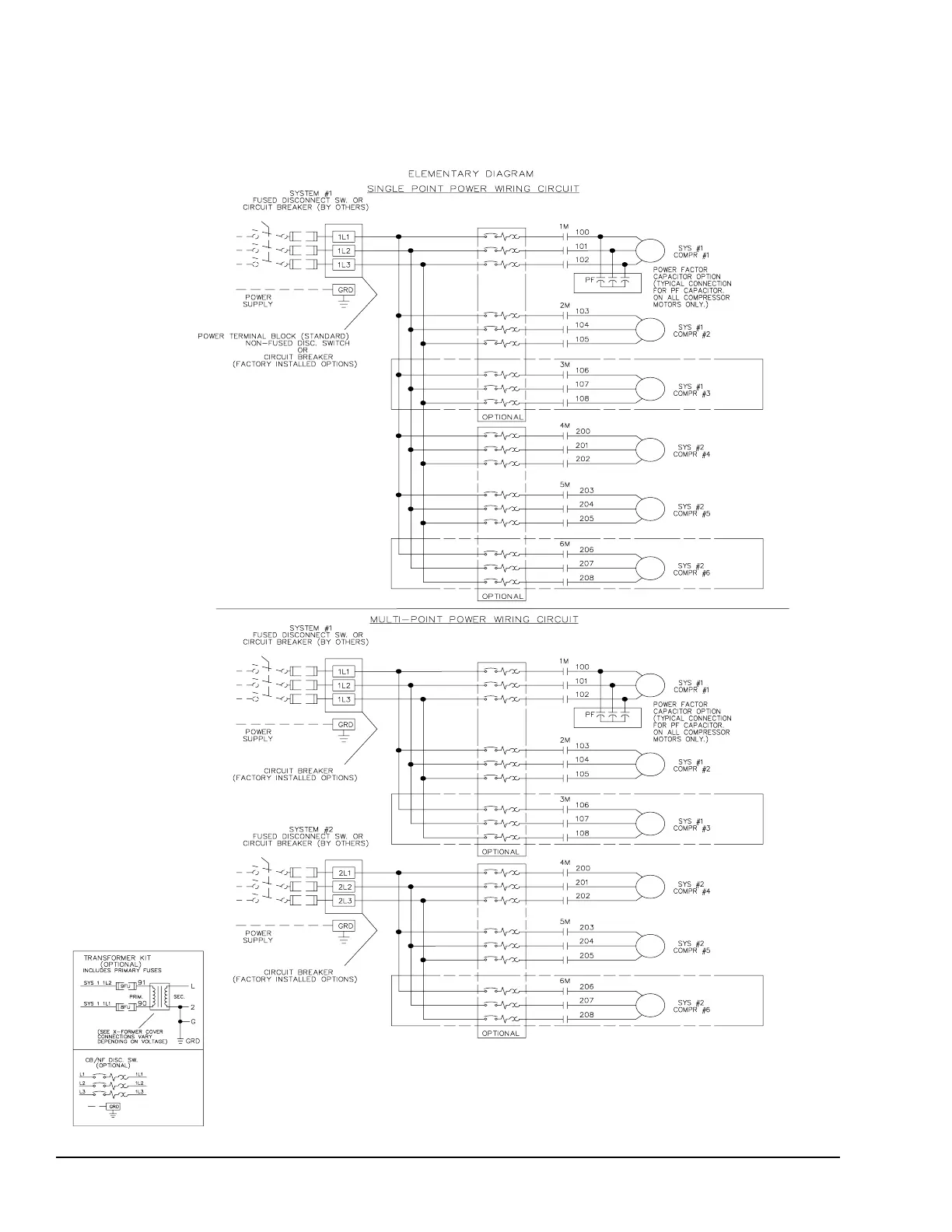

ELEMENTARY WIRING DIAGRAM

QWC3100T, 115T, 150T, 170T and 200T STANDARD EFFICIENCY UNITS

QWC3095T, 130T and 150T HIGH EFFICIENCY UNITS

FIGURE 26 - POWER CIRCUIT, 5 AND 6 COMPRESSOR

035-21499-102 REV D

FOR 5 & 6

COMPRESSOR UNITS

FOR 6 COMPRESSOR

UNITS ONLY

FOR 5 & 6

COMPRESSOR UNITS

FOR 6 COMPRESSOR UNITS

ONLY

LD26948
