Wi-Fi&Bluetooth Module Series
FC64E_Hardware_Design
20
/ 53
3.2. Pin Assignment

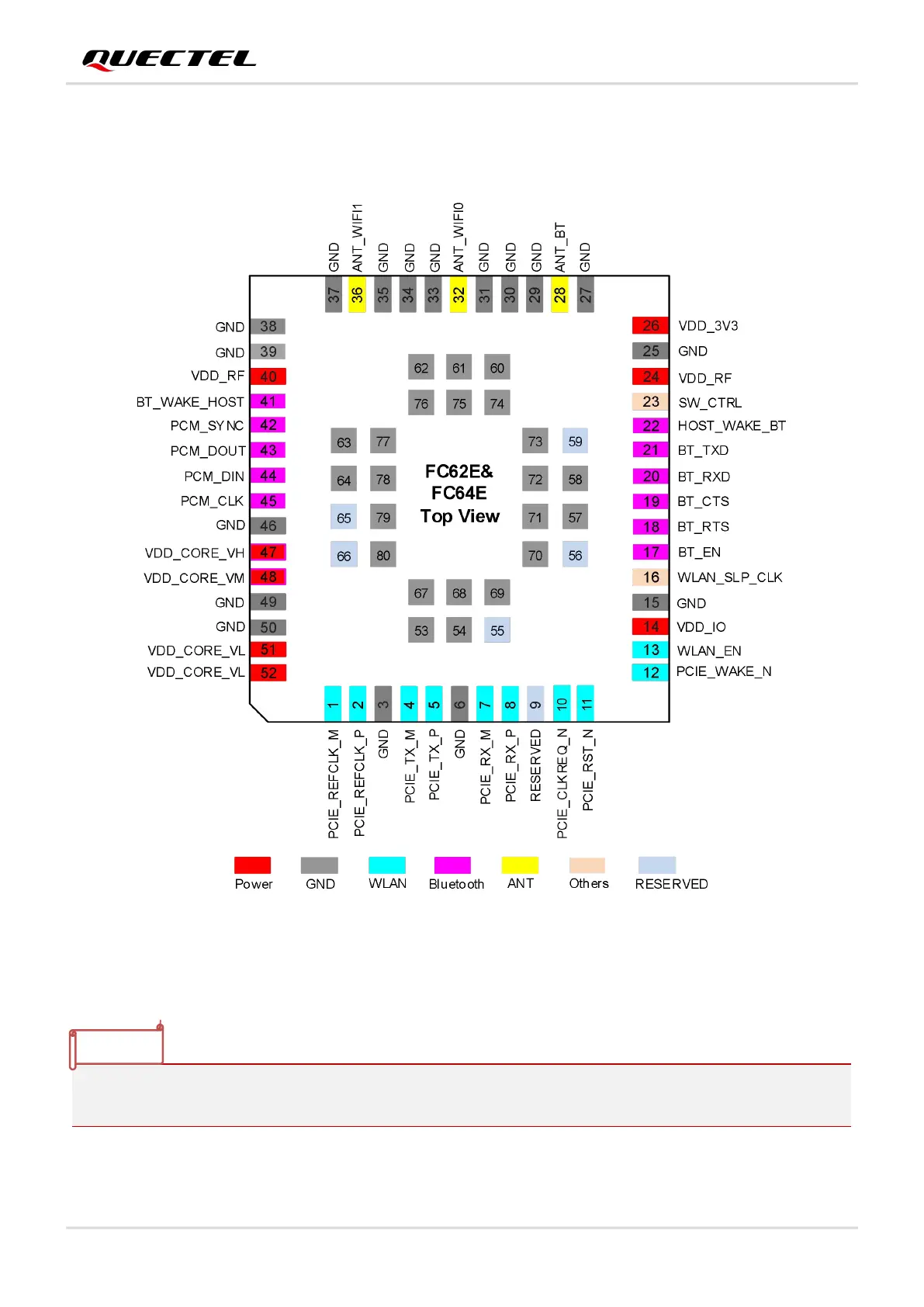

Figure 2: Pin Assignment (Top View)
1. VDD_3V3 is optional according to module OC.
2. Please keep all RESERVED pins open.
NOTE
