Wi-Fi&Bluetooth Module Series
FC64E_Hardware_Design
25
/ 53

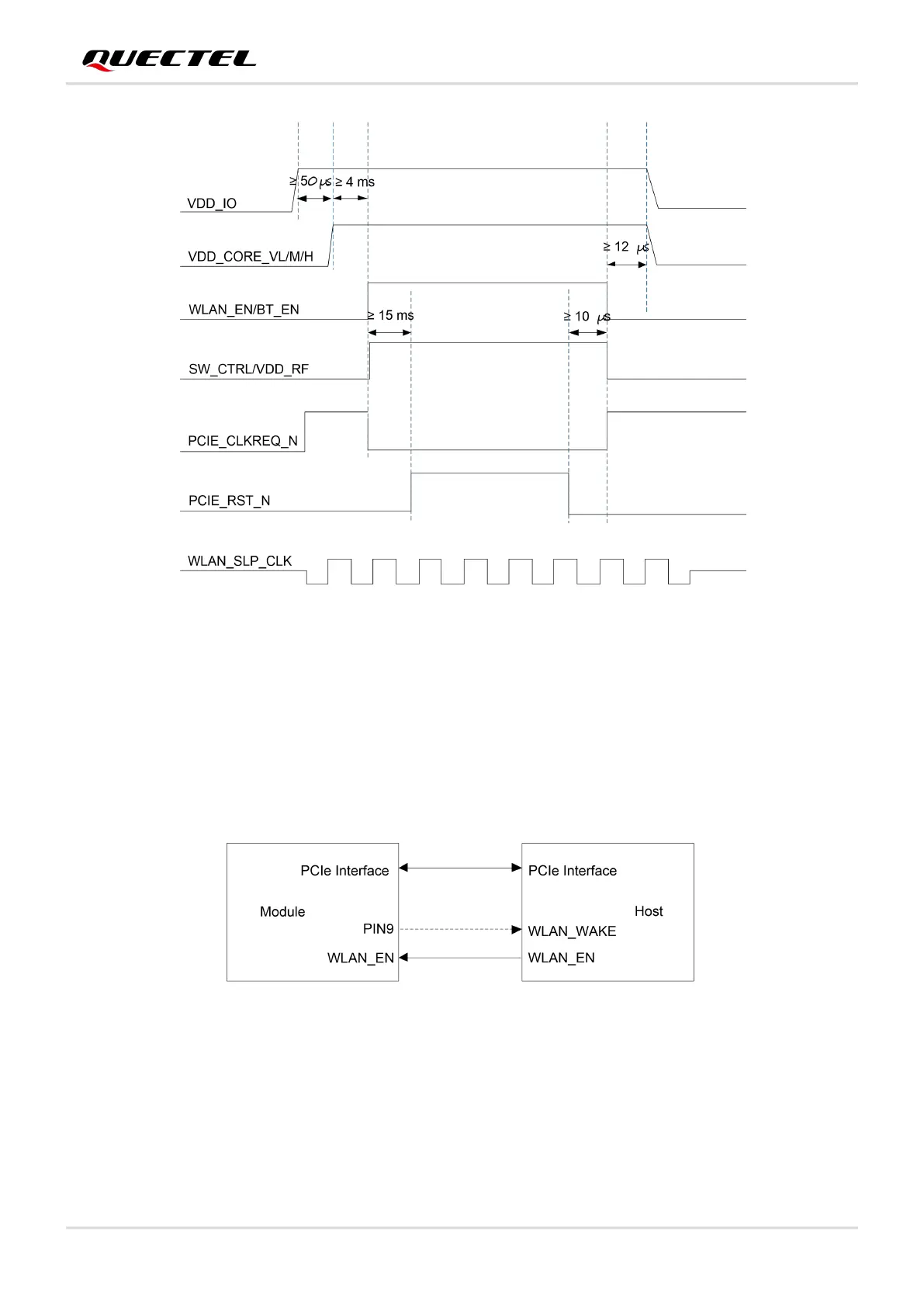

Figure 4: Turn-on and Turn-off Sequence
3.5. WLAN Application Interface
The following figure shows the WLAN application interface connection between the module and the host.
If you need WLAN wakeup function, connect the pin 9 of module with the host corresponding pin first and
contact Quectel Technical Support if necessary.
Figure 5: WLAN Application Interface Connection
3.5.1. WLAN_EN
WLAN_EN is used to control the WLAN function of the module. WLAN function will be enabled when
WLAN_EN is at high level.
