Quectel FC64E User Manual

Wi-Fi&Bluetooth Module Series
FC64E_Hardware_Design
47
/ 53
5 Mechanical Information
This chapter describes the mechanical dimensions of the module. All dimensions are measured in
millimeter (mm), and the dimensional tolerances are ±0.2 mm unless otherwise specified.
5.1. Mechanical Dimensions

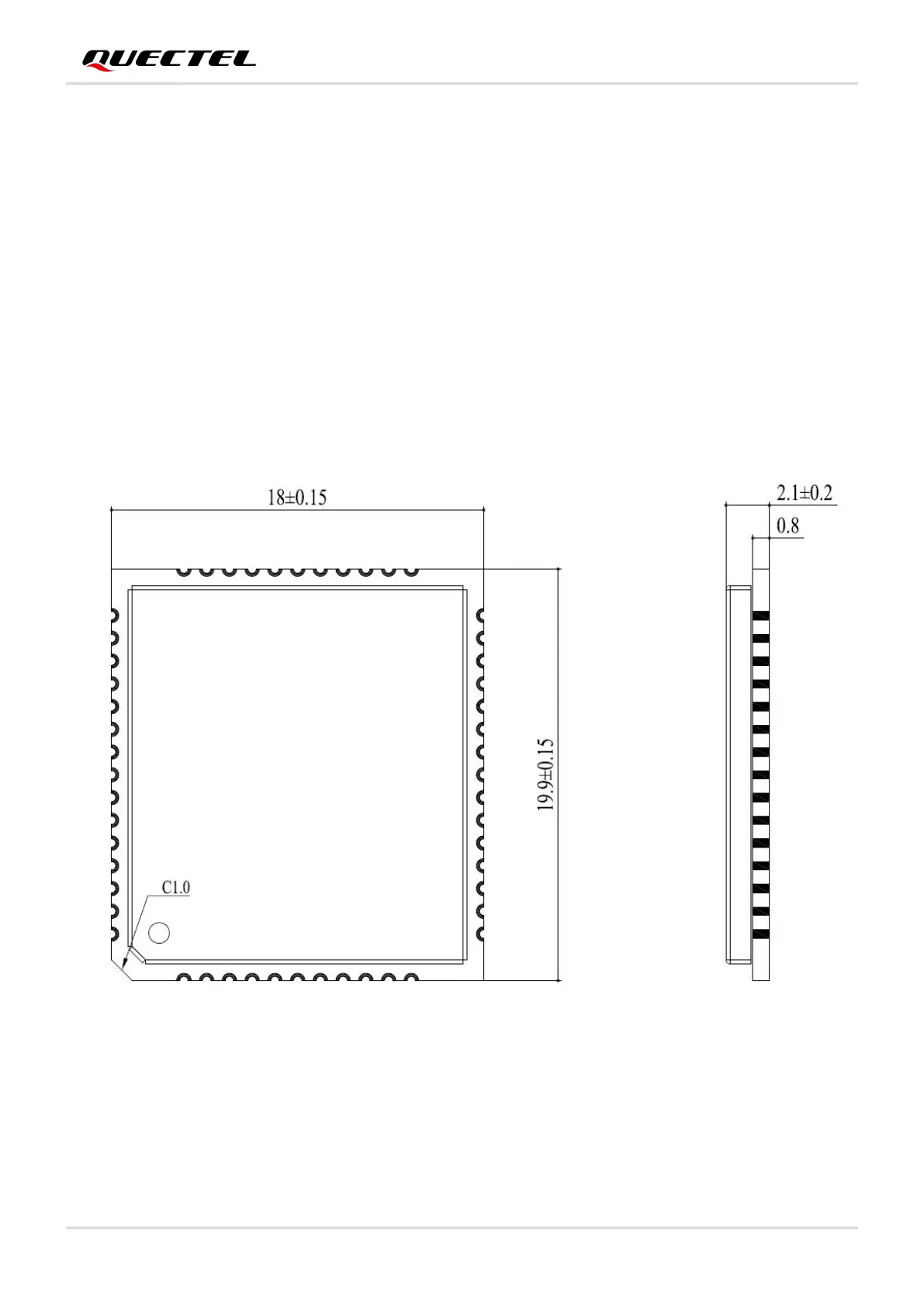

Figure 19: Module Top and Side Dimensions (Top and Side View)
Pin1
