The module adopts carrier tape packaging and details are as follow:
6.3.1. Carrier Tape
Dimension details are as follow:

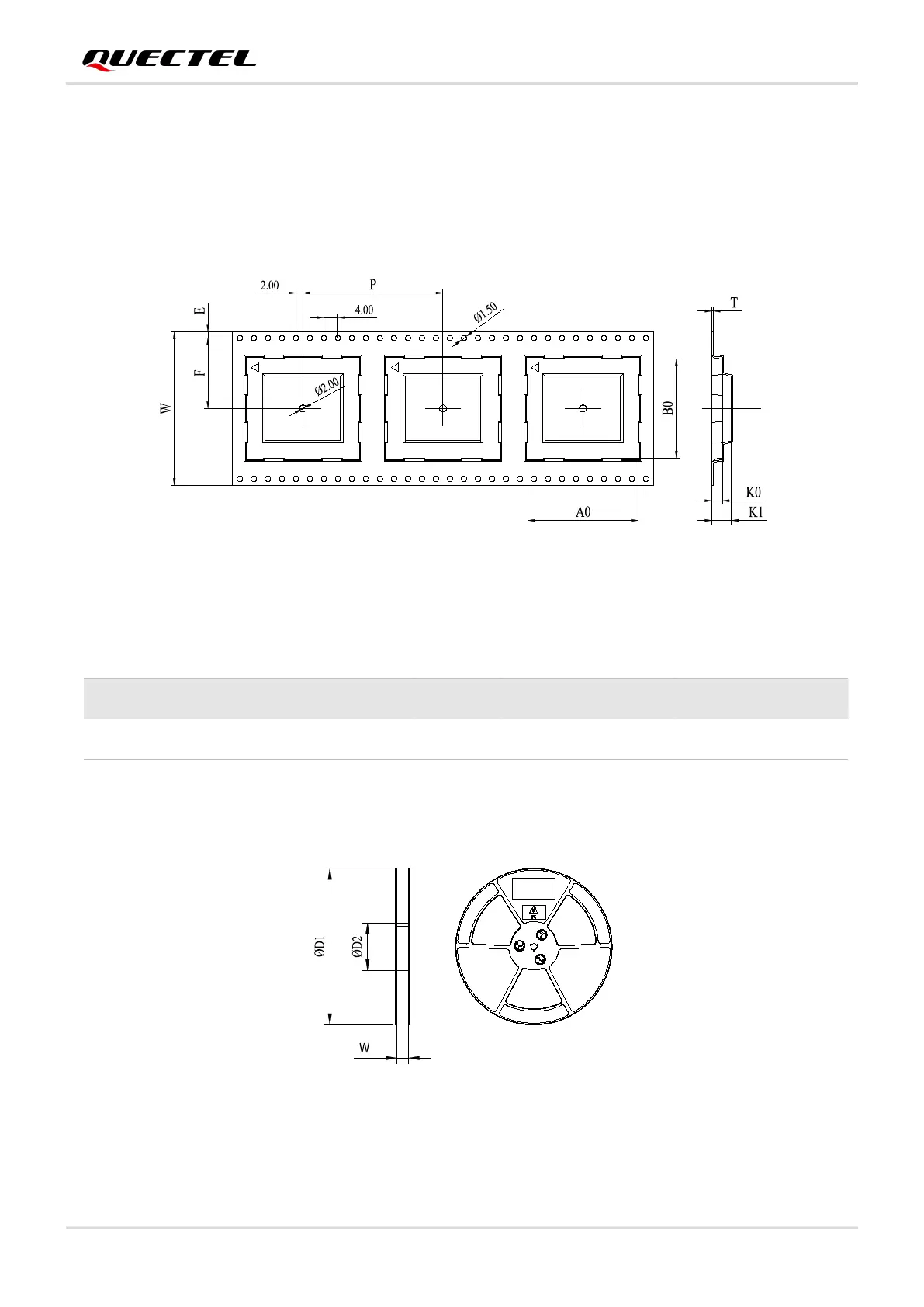

Figure 24: Carrier Tape Dimension Drawing
Table 31: Carrier Tape Dimension Table (Unit: mm)
6.3.2. Plastic Reel
Figure 25: Plastic Reel Dimension Drawing
W
P
T
A0
B0
K0
K1
F
E
44
32
0.4
18.5
20.5
3
6.8
20.2
1.75
