Wi-Fi&Bluetooth Module Series
FC64E_Hardware_Design
48
/ 53

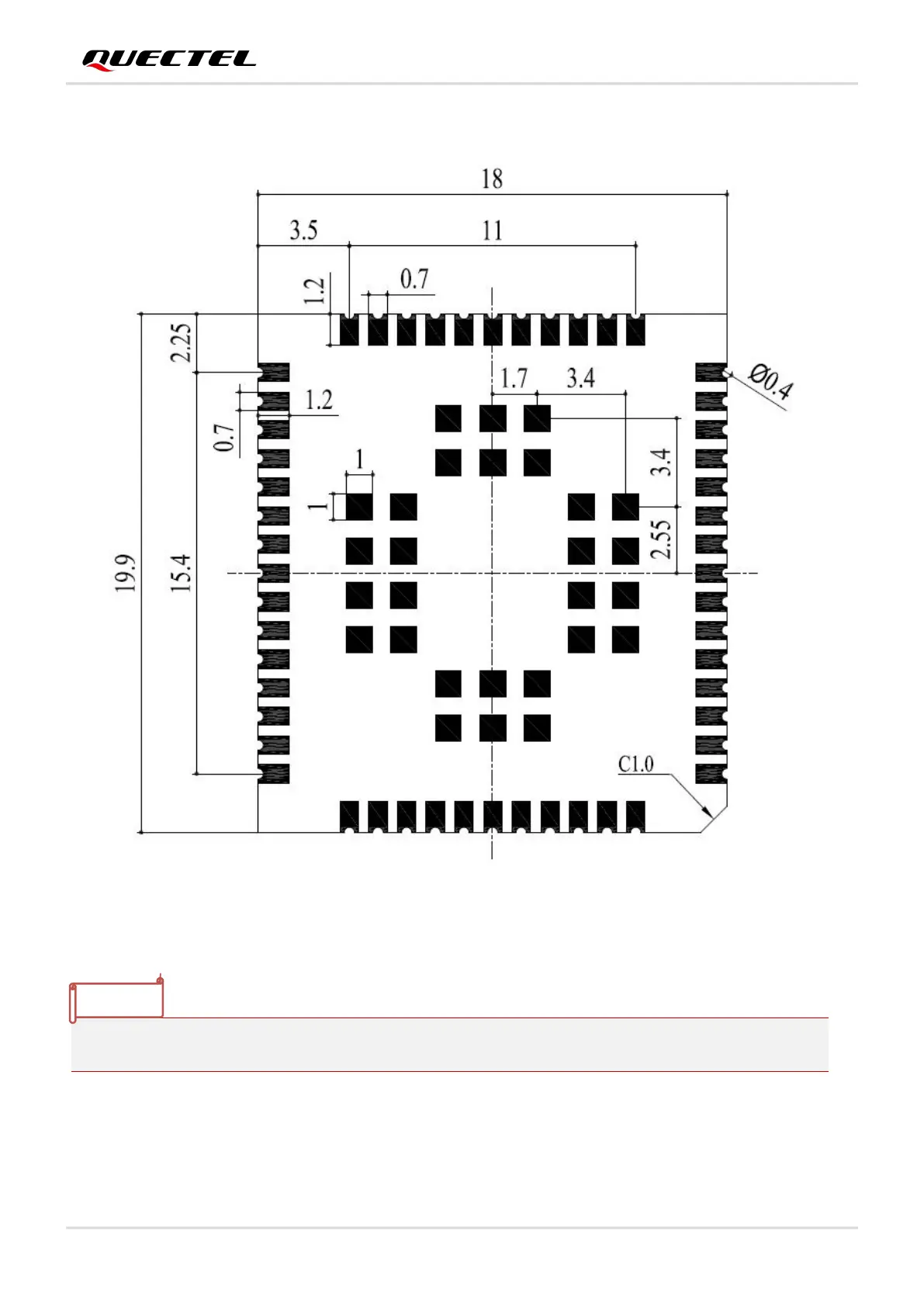

Figure 20: Module Bottom Dimension (Bottom View)
The package warpage level of the module conforms to JEITA ED-7306 standard.
NOTE
Pin1
