Wi-Fi&Bluetooth Module Series
FC64E_Hardware_Design
36
/ 53

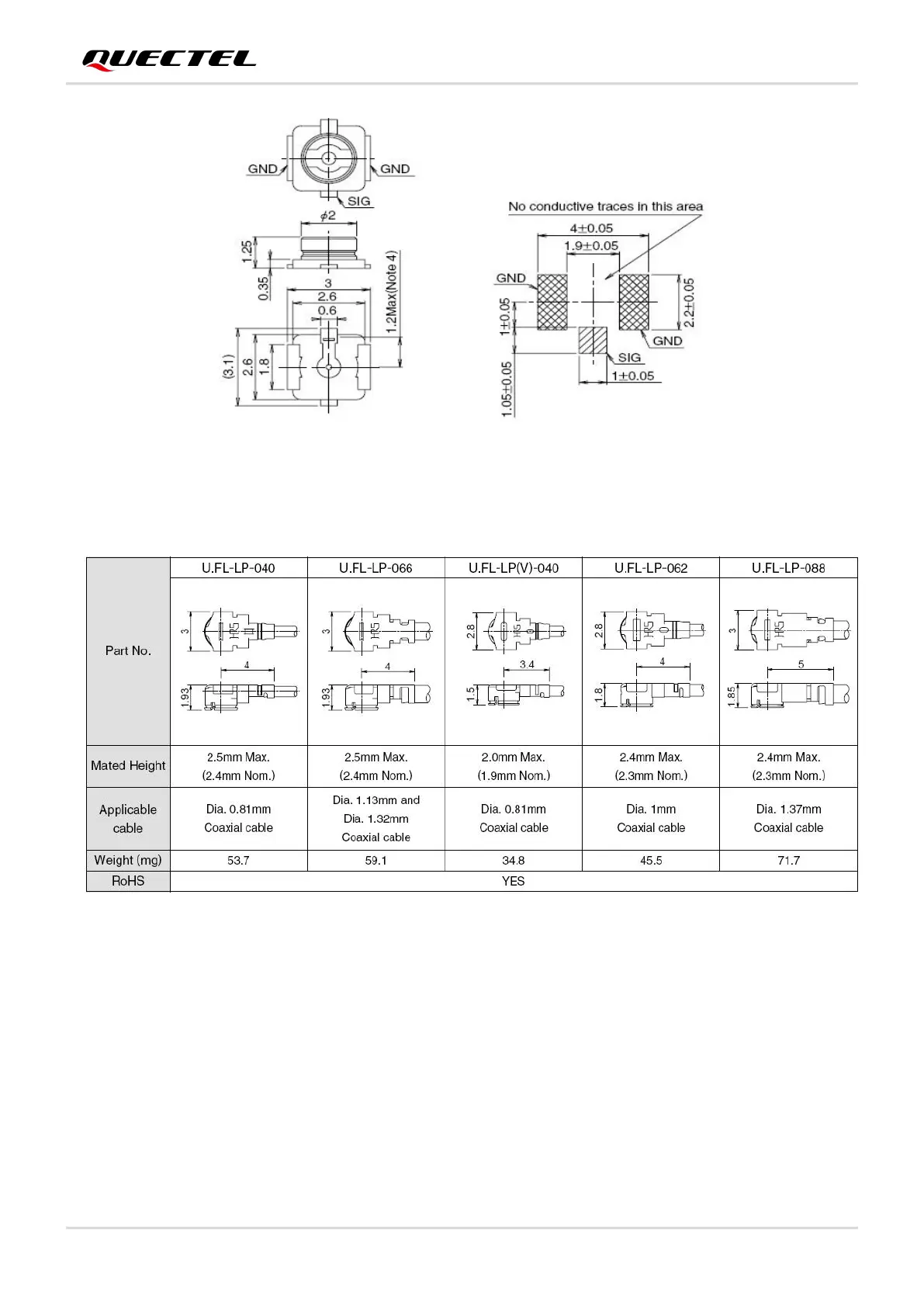

Figure 16: Dimensions of the U.FL-R-SMT Connector (Unit: mm)
U.FL-LP serial connectors listed in the following figure can be used to match the U.FL-R-SMT.
Figure 17: Mechanicals of U.FL-LP Connectors (Unit: mm)
The following figure describes the space factor of mated connector.
