5 Hardware Description
5.1 Front side
The quTAG MC comes in different variants with 8, 16 or 32 stop input channels.

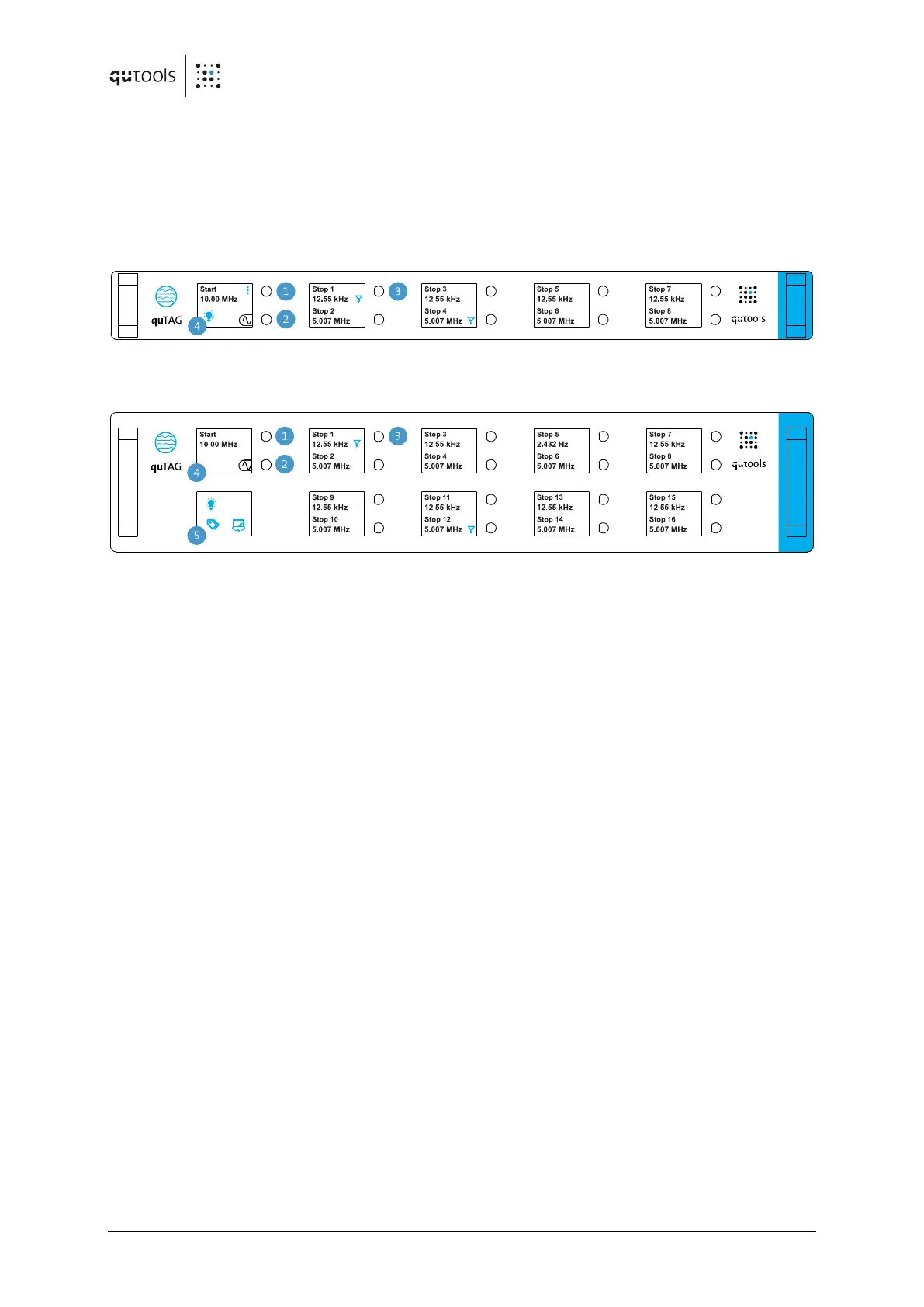

Figure 1: Front side of the quTAG MC - 8 stop input channels
Figure 2: Front side of the quTAG MC - 16, 32 stop input channels
1
SMA start input connector
2
SMA clock input connector
3
One of 8 or 16 SMA stop input connectors on the front side,
see rear side 5.3 for channels 17-32
4
Start channel display
5
Menu display for options, see detailed description 5.2
• Switching the stop input channels to the SMA stop input connectors of the rear
side, only at 32 channel devices
• showing information about markers on the front displays
• switching the displays off/on
