Outputs Conguraon page

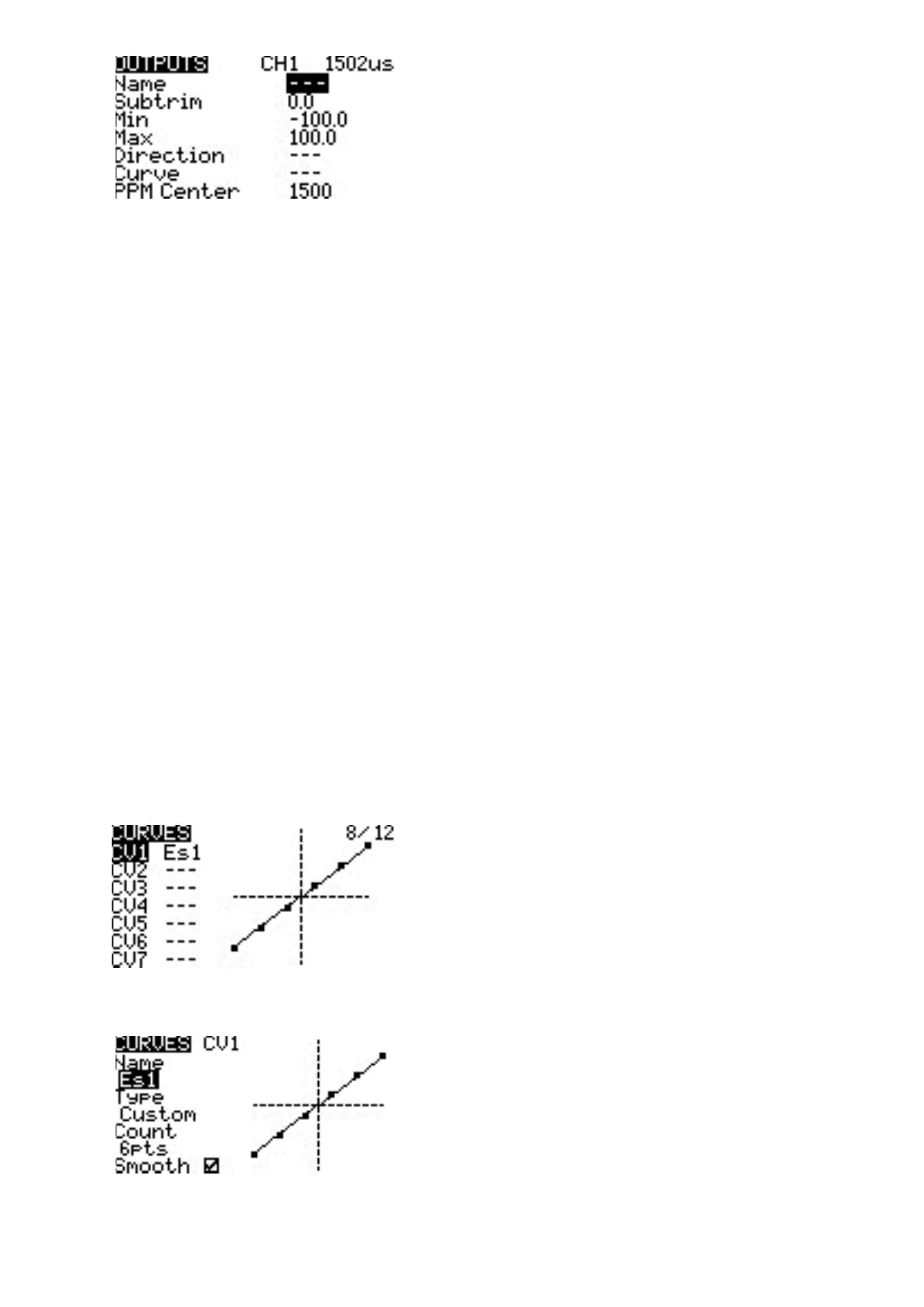

The output conguraon screen has the following conguraon opons:
• Name - Name for the Output up to 6 characters.
• Subtrim - The subtrim value (max 100). It can also be set to a global variable by pressing the ldong-pressing
the [Enter] buon to switch to GV Mode and then selecng the desire global variable.
• Min - Minimum output limit. Commonly used to prevent servo binding on models that use servos for the
control surfaces.
• Max - Maximum output limit. Commonly used to prevent servo binding on models that use servos for the
control surfaces.
• Direcon- Select --- for normal output value, INV if you want to invert the output value.
• Curve - Specify the custom curve (in any) that you want to use for this output. See Curves for more
informaon about custom-dened curves.
• PPM Center - Specify the pulse-width value for the center value of the output channel (between 1000 -
2000). Changing this will shi the enre output range, including upper and lower limits.
• Subtrim mode - Denes how the subtrim value aects the min/max output values. There are two opons:
o △ (Center Only) - Only the center value shis. The upper and lower limits do not change. The
reacon of the sck diers between the upper half and the lower half from midpoint.
o = Symmetrical - Both the upper and lower limits will shi according to the shi of the center value.
The reacon of the sck is the same on both sides of the midpoint.
4. Curves
5.1 Seng curves
The Curves screen allows you to dene custom curves to use in the Inputs, Mixes, or Output screens. The
curves screen will show the congured custom curves, with a graphical representaon of each curve.
Curves Screen
Selecng one of the curves or empty curve slots will open the conguraon page for that curve.
Curves Conguraon Screen
Curves Conguraon
