ASSEMBLY
OM 0495SB-A [17]

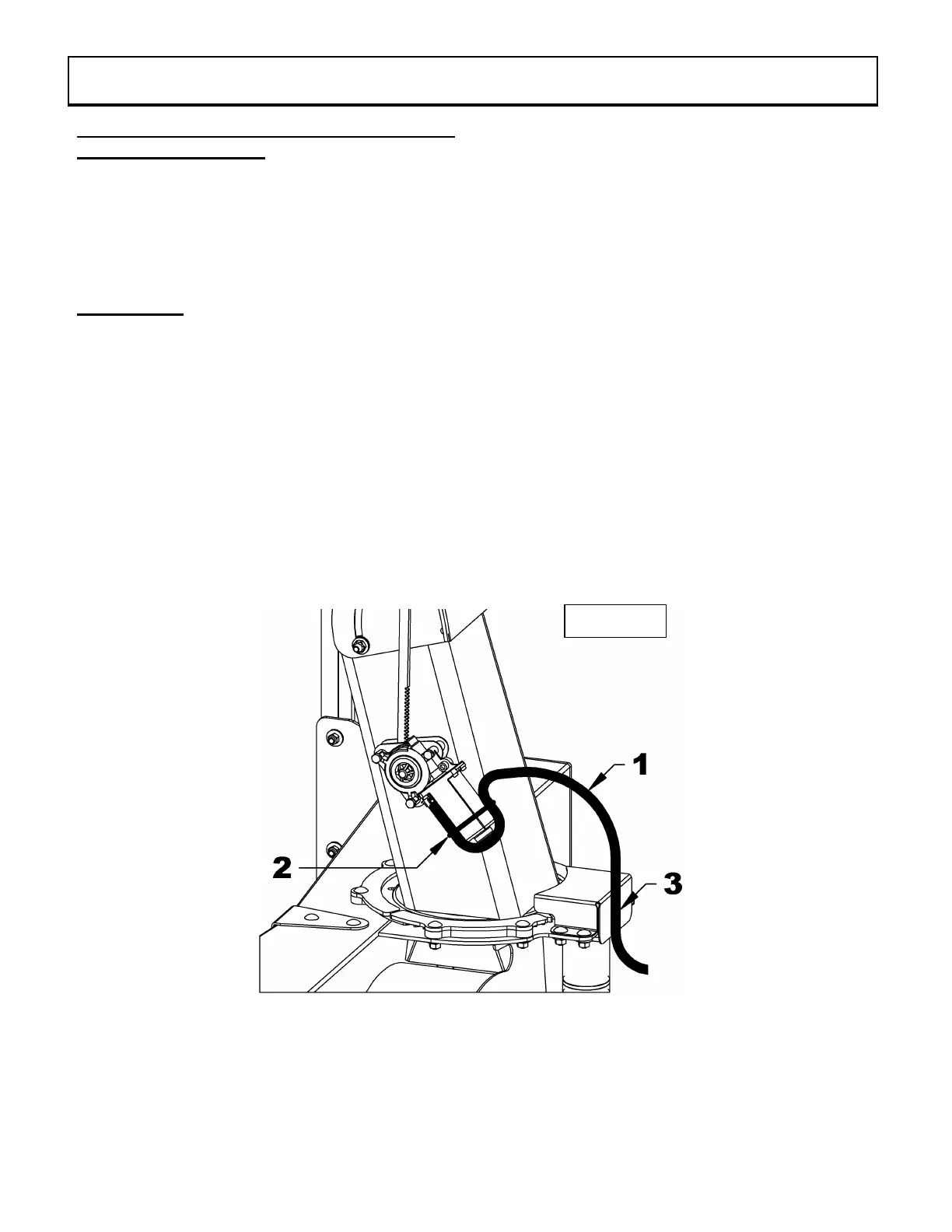

Installation of Electric Rotation Harness
# 4000174 (Figure 7)
1. Figure 7: Turn the chute all the way to the
right and attach the female connector of the
electrical harness for the deflector to the
electric motor. Secure the harness (item 1) to
the engine with a 1/4" x 15" nylon tie wrap
(item 2) as shown in the figure.
IMPORTANT: Be sure not to over tighten the
electrical harness with the nylon tie wrap.
2. Then cut the excess nylon tie wrap about 1/8"
from the tie.
3. Figure 7: Secure the electrical harness
(item 1) to the motor gear protector with the
nylon tie wrap (item 3) already installed in the
gear protector.
