RadTech S1SB-54A - Installation of the Verticle Knives; Installation of the Hitch Pins

ASSEMBLY
OM 0495SB-A [16]
Installation of the verticle knives (Figure 5)
1. Secure the vertical knives (item 1) to the right
and left of the snowblower with two 5/16" x 1
1/4" carriage bolts (item 2), flat washers
(item 3) and stover nuts (item 4) as shown.
Installation of the hitch pins (Figure 6)
1. Figure 6:Insert each of the ø1" x 3 7/8" pins
(item 1) in the hole (item 2) on each side of the
snowblower frame.
2. Figure 6:Insert each of the 1/4" round locking
pins (item 3) into the hole (item 4) on each side of
the snowblower frame.
N°
PARTS FIGURE 5
QTY
1
Verticle knives
2
2
Carriage bolts ø5/16"NC x 1 1/4"
4
3
Flat washer ø5/16"
4
4
Stover nut ø5/16"NC
4
N°
PARTS FIGURE 6
QTY
1
Pin ø1" x 3 7/8"
2
2
Storage hole
-
3
Round locking pin ø1/4"
2
4
Storage hole
-

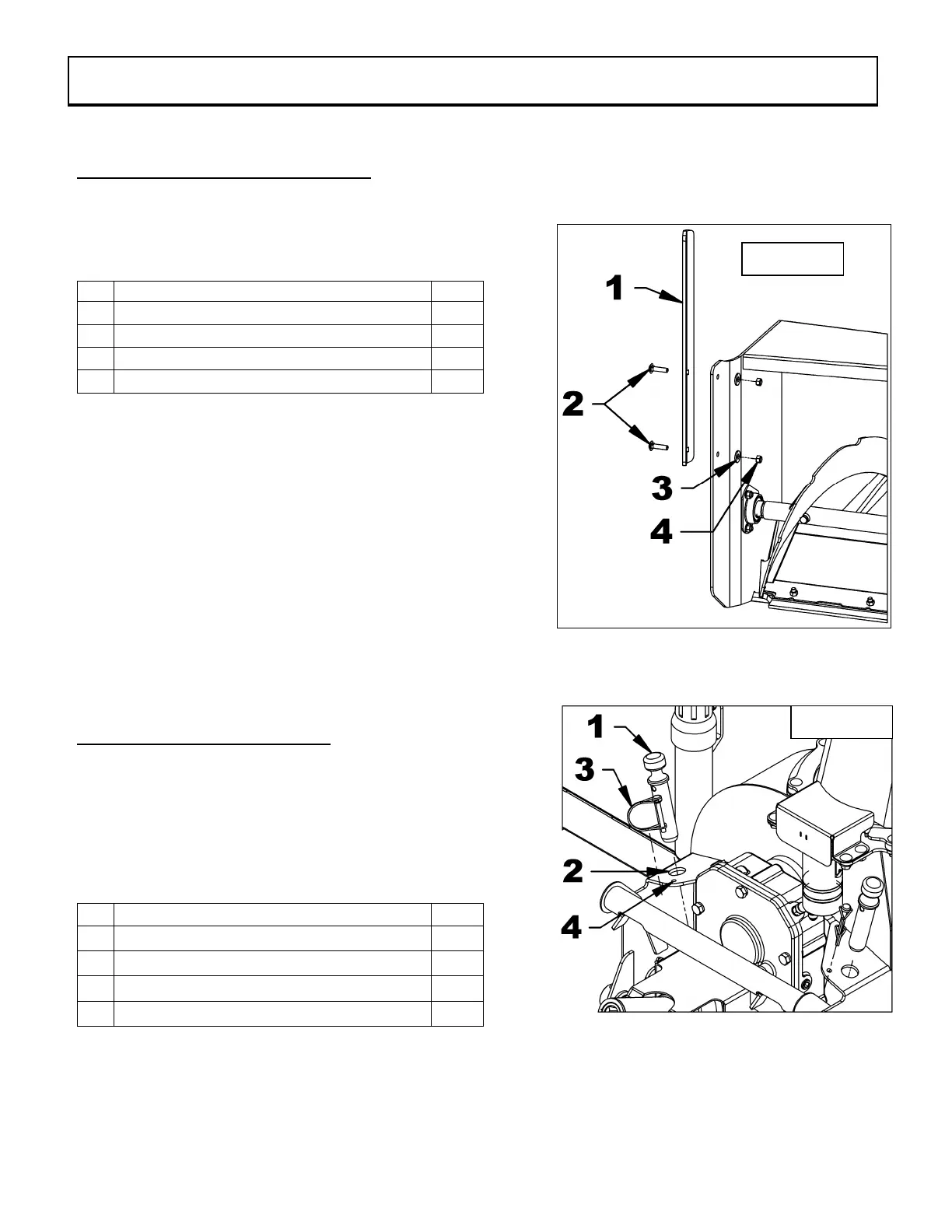

Figure 6
Figure 5
