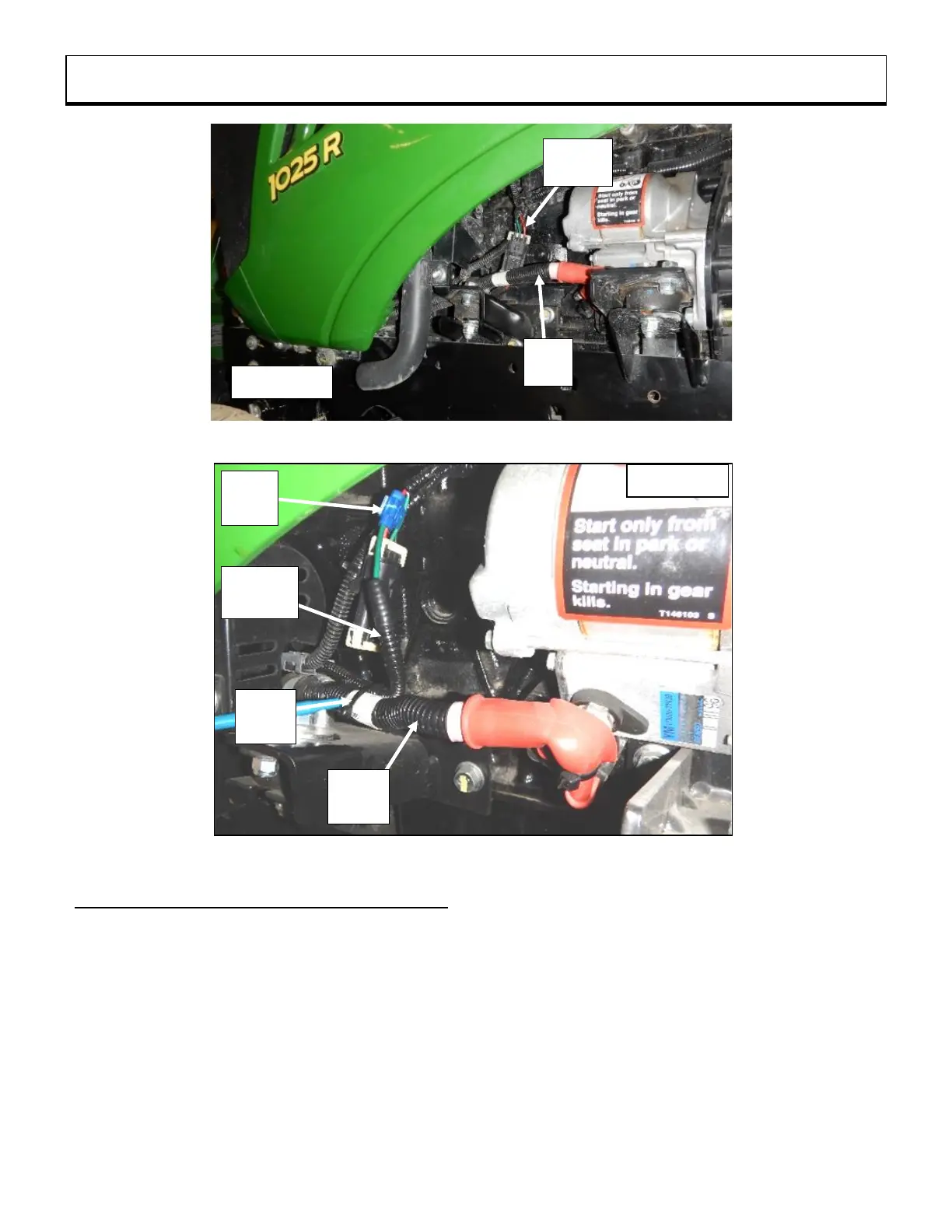

Installation of Main Harness # 4000203
(Figures 8)
1. (Figures 8) Passing through the right side
of the tractor, cross the section of the main
electrical harness (item 11) which contains
the black and white wires to the location of
the tractor battery.
2. Figure 8: Secure the connector of the black
wire (item 11a) to the negative (-) battery
terminal and the second black wire to
terminal 85 of the relay (item 1).
3. Figure 8: Secure the white wire connector
to terminal 87 of the relay (item 1).
4. Figure 8-8b: Secure the harness with fuse
(item 5) and the main harness (item 11) at
the locations shown in figure 8b with two
4.8mm x 8" long nylon tie wraps (item 8).
