ASSEMBLY
OM 0495SB-A [26]
N°
PARTS FOR FIGURES 10
QTY
1
Rotation sensor (not included)
1
2
Nylon tie wrap 4.8MM X 8" Lg
5
3
Protective cap kit
1
4
Support reinforcement (installed at the front of the tractor)
-
5
Extension harness (not included)
1
6
Tractor electrical connector
-
5a
1a
3
5a
1a

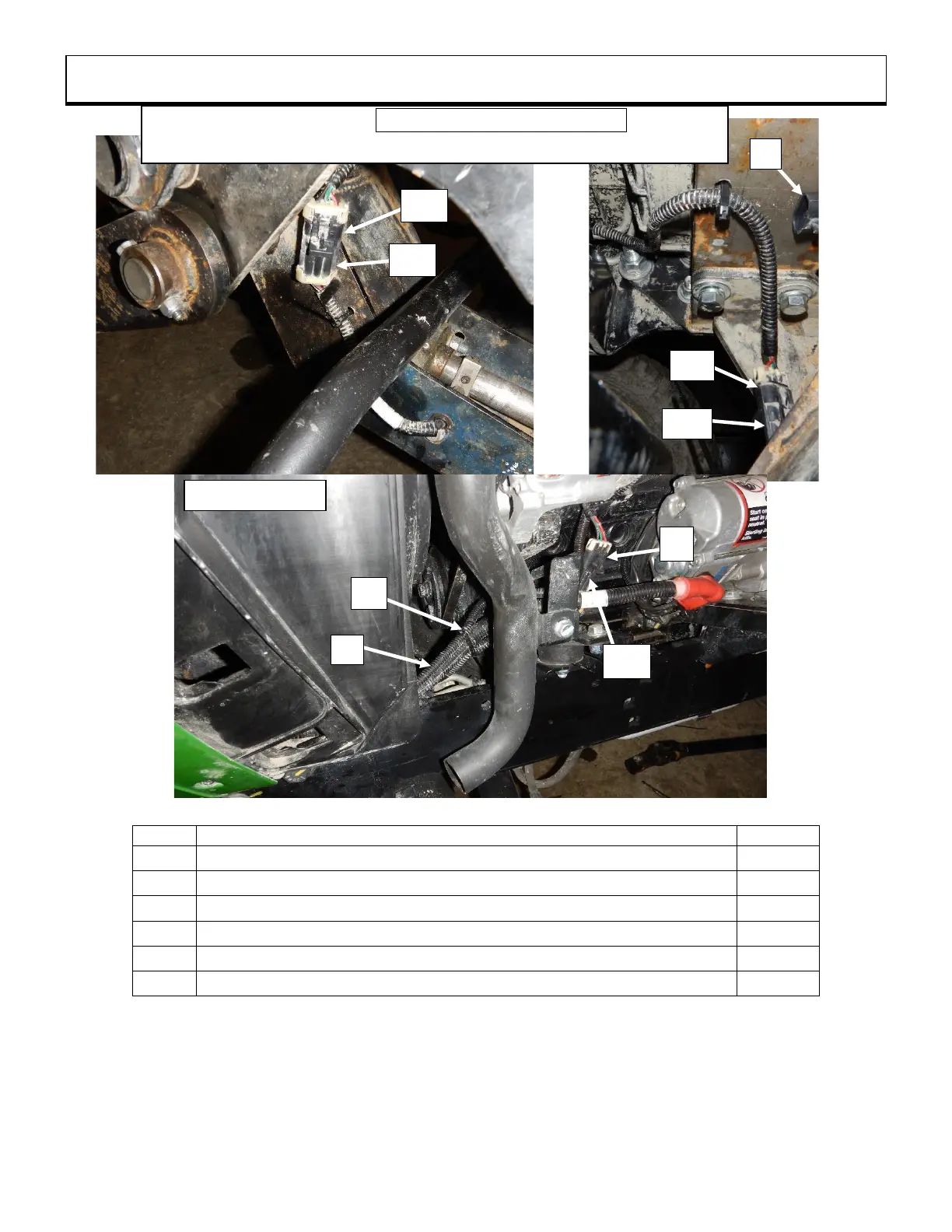

Figures 10d
Connection when the subframe is installed to the tractor
2
5b
5
6
Figure 10e
