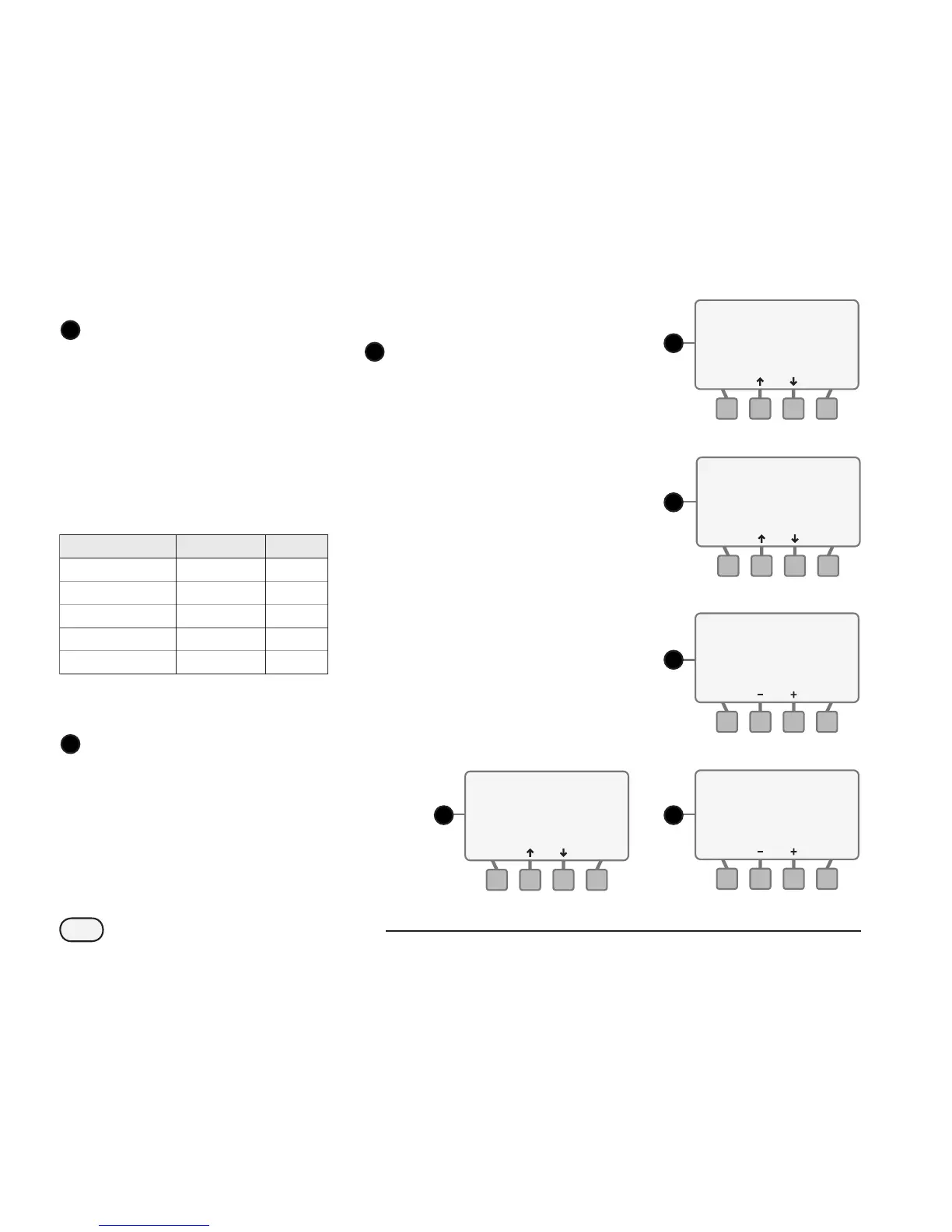

ESP-SMT Smart Modular Control System
29
Enter Shade Factor
28
The SHADE FACTOR screen will
appear. Press the UP and DOWN
arrow button(s) until the desired
Shade Factor description starts to
blink; then press the SELECT button
and the PLANT MATURITY screen
appears.
The following table lists the Sun / Shade
Factor default values that are applied to the
Species Factor (Ks) to determine the irrigation
schedule.
Full Sun
25% Shade
50% Shade
75% Shade
Full Shade
1.30
1.15
1.00
0.75
0.50
1.00
0.89
0.77
0.67
0.56
Exposur Non-Turf Turfe
Enter Plant Maturity -
(Established Method)
29
While the PLANT MATURITY screen
is displayed;
Press the UP and DOWN arrow
button(s) until Established is
blinking on the display; then press
the SELECT button and the ZONE
REVIEW screen will appear.
Enter Plant Maturity -
(Newly Planted Method)
30
While the PLANT MATURITY screen
is displayed:
a. Press the UP and DOWN arrow
button(s) until Newly Planted,
Grow-in Period is blinking on the
display; then press the SELECT
button.
b. The NEWLY PLANTED screen will
appear and the value For the Next
XX Days will be blinking. Press the
- or + button(s) to adjust to the
desired number of days (this value
can be from 0 to 99 days); then press
the NEXT button.
c. The value for Cycles Per Day
will begin to blink. Press the - or +
button(s) to adjust to the desired
Cycles Per Day (this value can be
from 1 to 8 cycles per day); then
press the NEXT button.
a.
b.
c.
28 30
30
30
29
PLANT MATURITY
Established
- OR -
Newly Planted
Grow-in Period
SELECT
BACK
Zone 2
PLANT MATURITY
Established
- OR -
Newly Planted
SELECT
BACK
Zone 2
Grow-in Period
NEWLY PLANTED
Day For Next 14 Days
Water Every Calendar
Cycles Per Day 2
Minutes Per Cycle
09:00 AM to 04:00 PM
5
Zone 2
NEXTBACK
NEWLY PLANTED
Day For Next 14 Days
Water Every Calendar
Cycles Per Day 6
Minutes Per Cycle 5
Zone 2
NEXTBACK
09:00 AM to 04:00 PM
SHADE FACTOR
Full Sun
25% Shade
50% Shade
75% Shade
Full Shade
SELECT
BACK
Zone 1
