Rain Bird ESP-SMT User Manual

ESP-SMT Smart Modular Control System
19
Input Zone Information
This section shows you how to input information that is specic to each zone you plan
to irrigate. There are three methods to accomplish this task:
1) Zone Setup Wizard; 2) Advanced User Entry; 3) Copy Zone to Zone(s)
Method 1: Zone Setup Wizard
This method is recommended for new users of the ESP-SMT Controller.

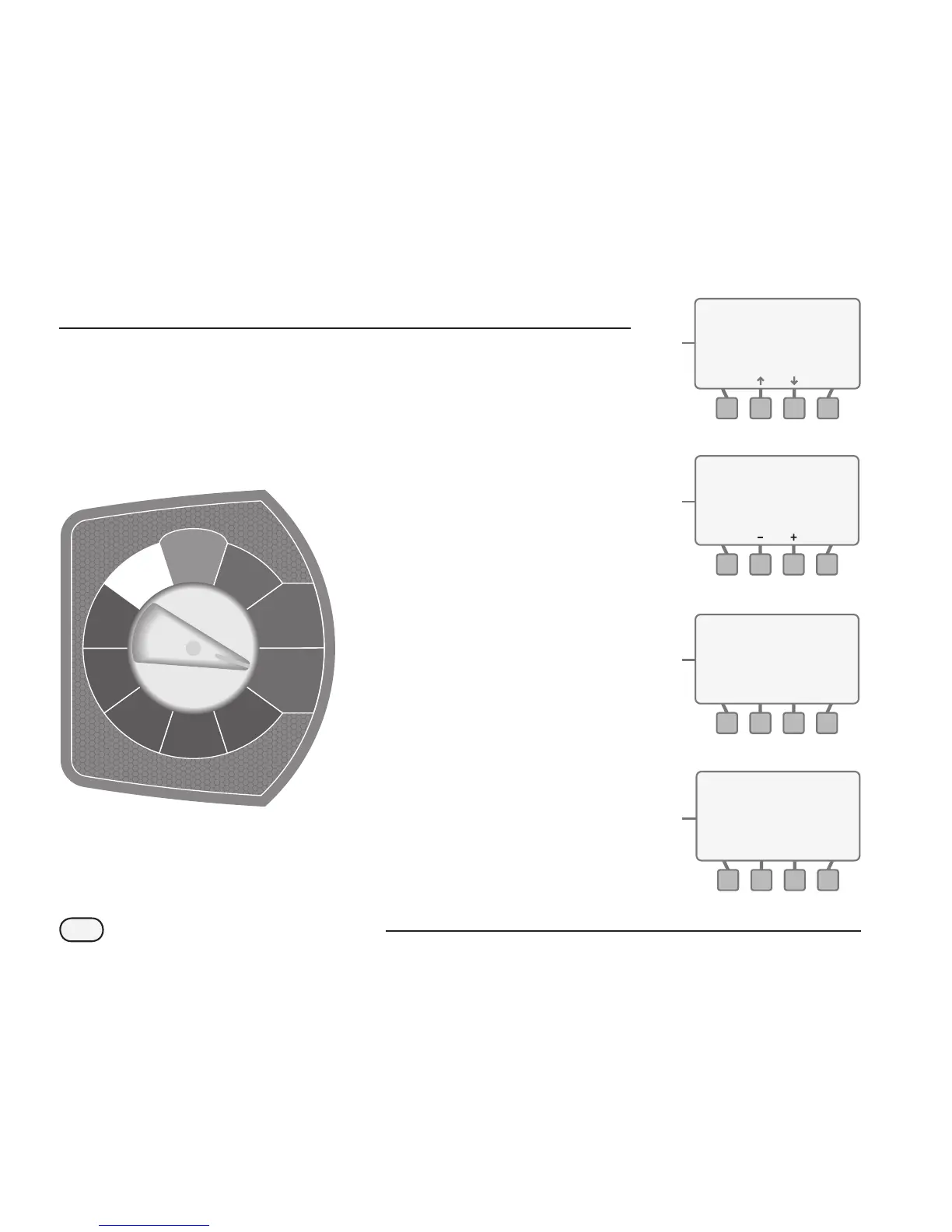

Rotate the dial to INPUT ZONE INFORMATION position...
A
The INPUT ZONE INFORMATION
screen will appear with the Zone
Setup Wizard blinking; press the
SELECT button.
Select Specific Zone Number
B
The SELECT ZONE screen will appear.
Press the - or + button(s) until the
desired Zone Number is displayed;
then press the NEXT button.
Turn Zone to ENABLE status
C
Zone OFF is displayed. Press the
ENABLE button to change zone
status.
D
Zone XX ENABLED is displayed;
press the NEXT button.
!
NOTE: You can still input zone
information with the zone in the
OFF mode. This may be beneficial
C
B
A
D
INPUT ZONE INFORMATION
Zone Setup Wizard
Copy Zone to Zone
SELECT
SELECT ZONE
Zone 3
NEXTBACK
OFF
SELECT ZONE
OFF
Zone 3
NEXTBACK OFF ENABLE
FINE-TUNE
WATERING
SET DATE
& TIME
AUTO
SPECIAL
FEATURES
SYSTEM
REVIEW
INPUT ZONE
INFORMATION
CONFIGURE
CONTROLLER
MANUAL
WATERING
OFF
RESTORE
SETTINGS
SELECT ZONE
ENABLED
Zone 3
NEXTBACK OFF ENABLE
