ESP-SMT Smart Modular Control System
41
System Review
This section shows you how to review (not change) the controller and zone
information that you have entered into the controller. It also allows you to
review various logs of past Irrigation Events, Alarm & Note Conditions, and
measured Weather data. There are six dierent Information Review modes.

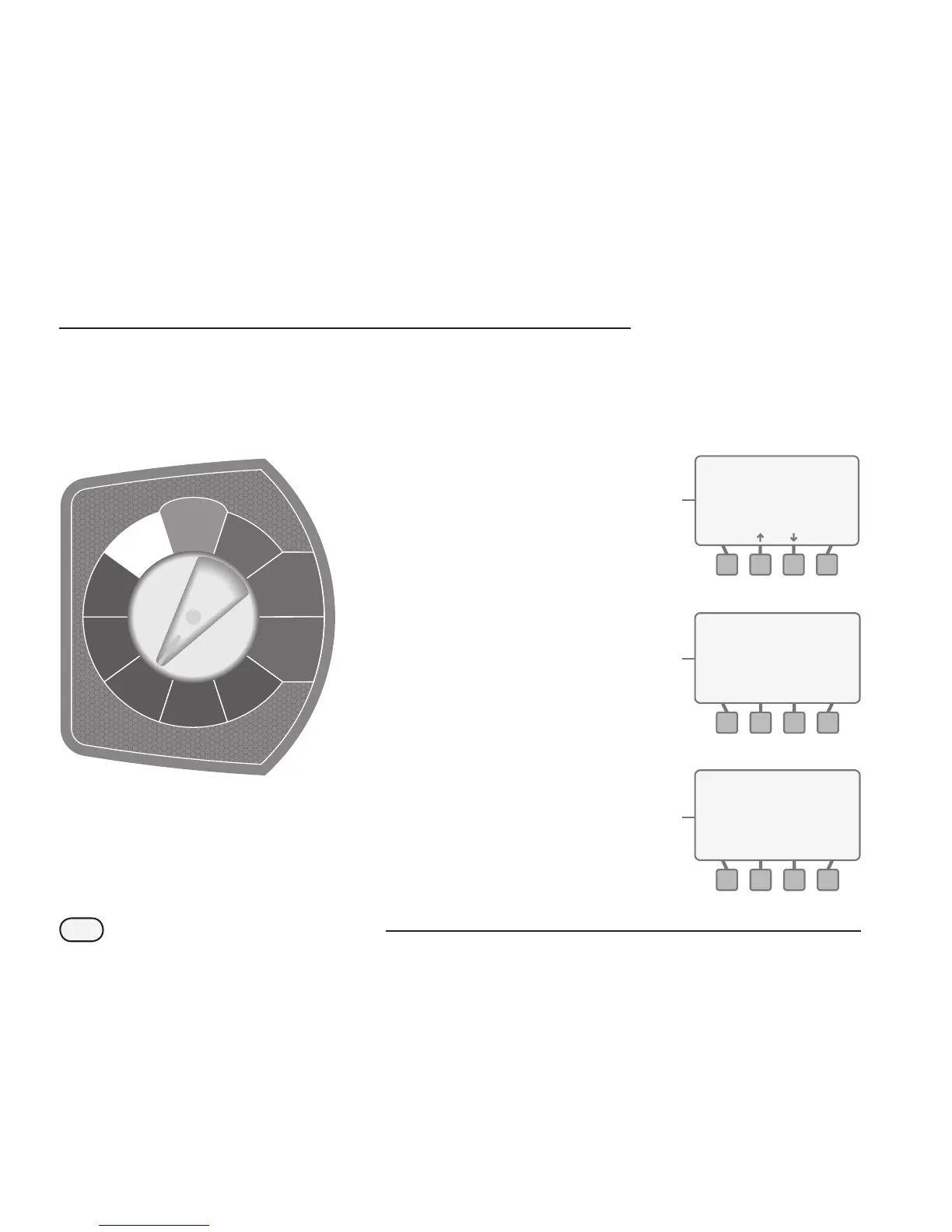

Rotate the dial to SYSTEM REVIEW position...
The CONTROLLER REVIEW screen will
appear allowing you to use any one of
the six Information Review modes.
Controller Settings Review
Allows you to review all of the current
settings that were selected while in the
CONFIGURE CONTROLLER dial position
and the controller specific settings while
in the SPECIAL FEATURE dial position.
A
To review the Controller Settings:
when Controller Settings is blinking;
press the SELECT button.
B
If you congured the controller
using the “Enter Site Zip Code”
mode;
a. The CONTROLLER SETTINGS screen
will appear displaying the Zip
Code, Allowed Irrigation Days and
Allowed Irrigation Time (Watering
Window).
a.
B
A
b.
B
CONTROLLER REVIEW
Controller Settings
Zone Settings
Next Irrigation Est.
Weather Data
Weather Log
Event Log
SELECT
CONTROLLER SETTINGS
Zip Code 92010
Even Days: 2,4,6,...30
Except Tuesday
06:00 AM To
Water Windows
10:00 AM
06:00 PM To 11:00 PM
BACK
CONTROLLER SETTINGS
Lat 41° N Elev 1200ft
Even Days: 2,4,6,...30
Except Tuesday
06:00 AM To
Water Windows
10:00 AM
06:00 PM To 11:00 PM
BACK
FINE-TUNE
WATERING
SET DATE
& TIME
AUTO
SPECIAL
FEATURES
SYSTEM
REVIEW
INPUT ZONE
INFORMATION
CONFIGURE
CONTROLLER
MANUAL
WATERING
OFF
RESTORE
SETTINGS
