ESP-SMT Smart Modular Control System
60

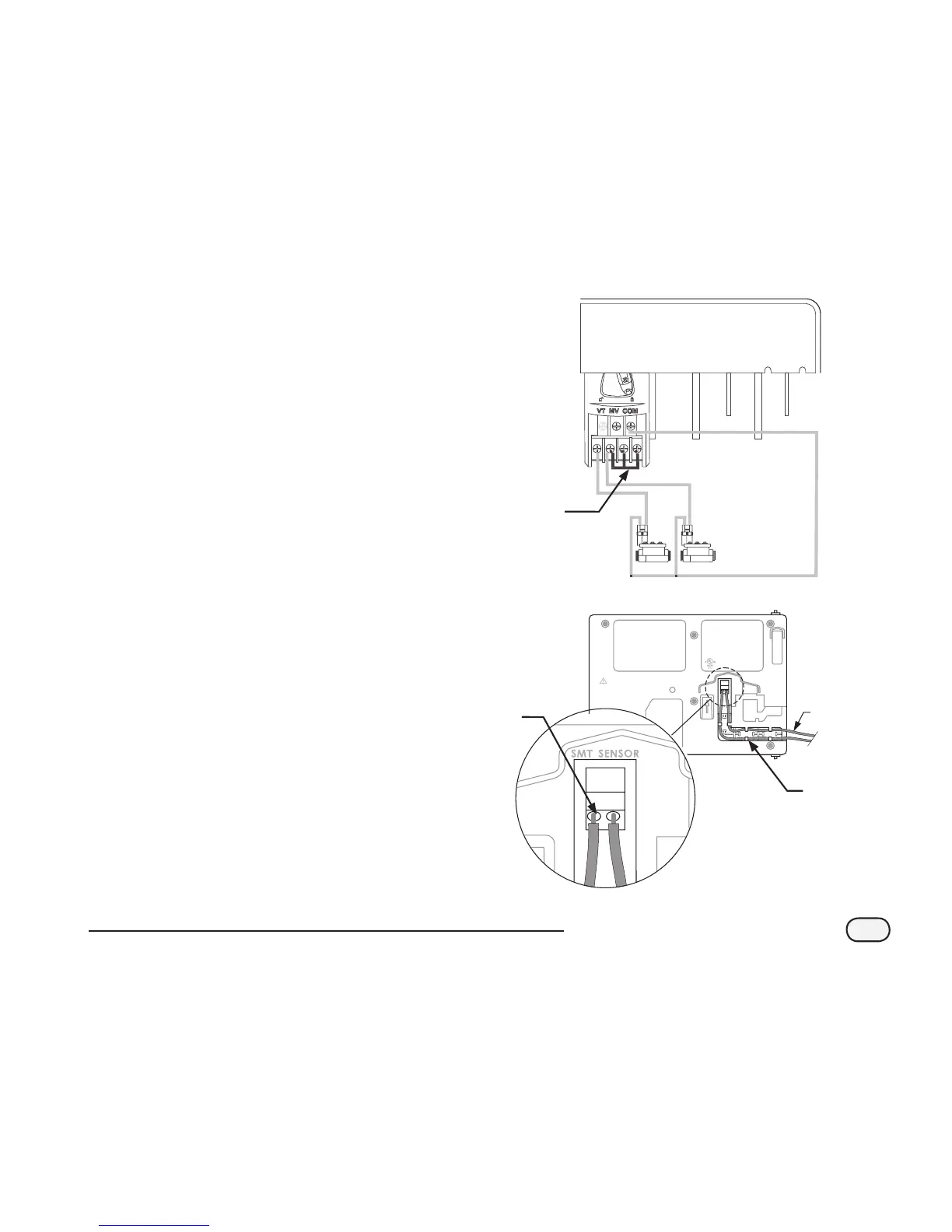

Jumper Setting for Unused Stations
F
CAUTION: To prevent pump damage when using
a pump start relay, use a jumper to connect unused
stations to a station that is being used.
If unused stations are not jumpered and they are
accidentally turned on, the pump may operate with no
ow (dead-head). Dead-heading could cause the pump to
overheat or burnout.
Connect Sensor Communication Wire To
Controller Panel
A
Make sure you have enough (2 x #16AWG or 2 x
#18AWG) UV rated wire to run from the controller to
the sensor location (maximum of 200 feet).
B
Strip the two communication wire leads 1/4” and
insert the leads into the green connector located on
the back of the ESP-SMT controller panel (polarity is
not important).
C
Route the sensor communication wire(s) through
the channel tabs on the back panel to provide “strain
relief”.
D
Once the panel is inserted back into the controller
chassis, route the two communication wires through
the eld-wire knockout that you made based on an
earlier installation step.
!
NOTE: Apply 120VAC power to the controller
prior to connecting the communication wires to
the SMT Weather Sensor to allow for verification of
communication between the sensor and controller.
