Rain Bird ESP-SMT User Manual

ESP-SMT Smart Modular Control System
72
Appendix
Irrigation System Overview
Basic Valve (Zone) Operation

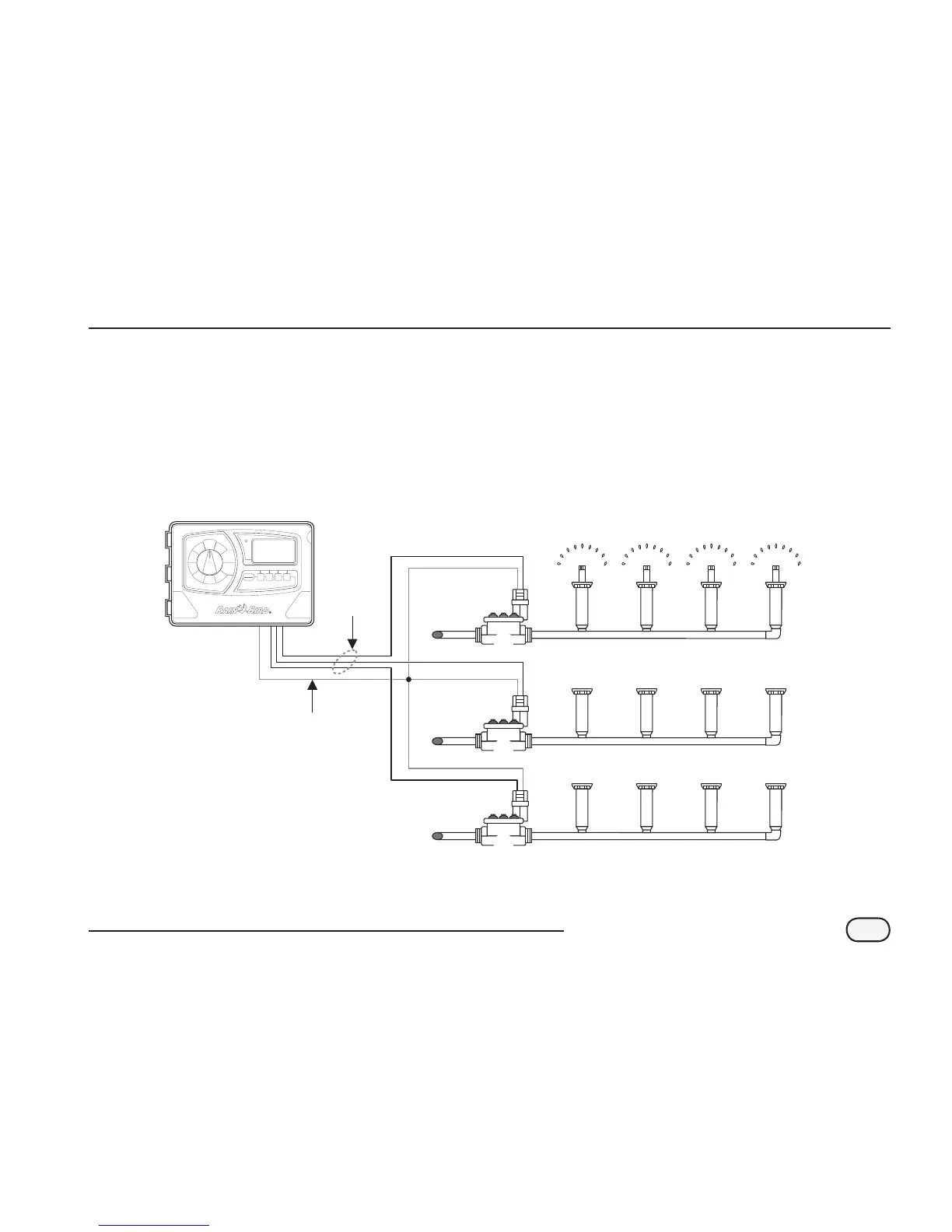

The ESP-SMT Smart Modular controls when your sprinkler system turns on, and how long the sprinklers run. The controller
has several valves connected to it, as shown in the illustration on the following page.
Each valve opens when it receives power from the controller, and the sprinklers connected to that valve turn on. When
these sprinklers have run per the automatic irrigation schedule, the controller shuts o the valve and opens the next valve
scheduled to irrigate.



Power
Wires
Valves
Sprinklers
Controller
Common
Wire
ALARM
ENGLISH
ESPAÑOL
ENGLISH
ESPAÑOL
ESP-SMT
SMARTMODULAR CONTROLLER
RESTORE
SETTINGS
FINE-TUNE
WATERING
SETDATE
&TIME
AUTO
SPECIAL
FEATURES
SYSTEM
REVIEW
INPUTZONE
INFORMATION
CONFIGURE
CONTROLLER
MANUAL
WATERING
OFF
