ESP-SMT Smart Modular Control System
63

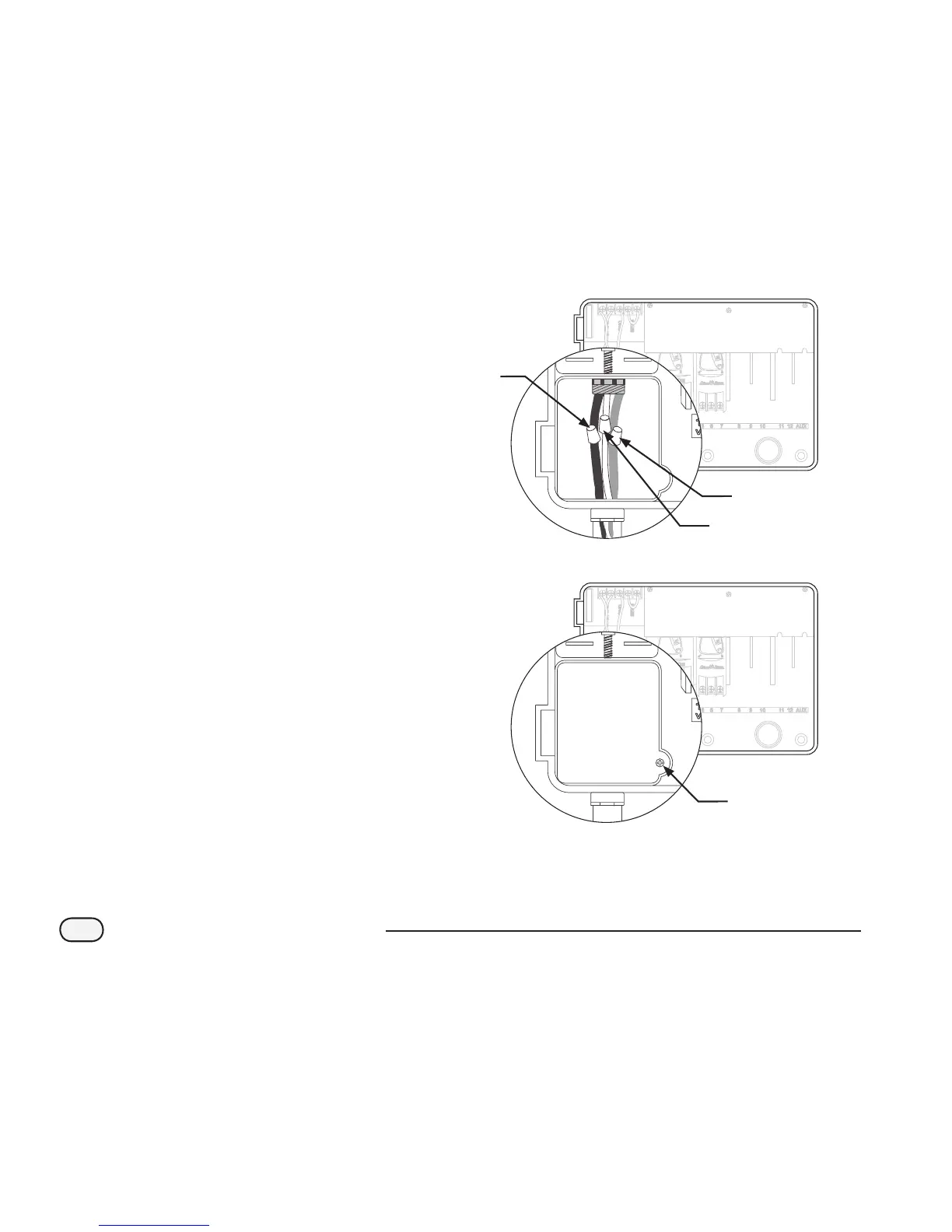

Using a code-approved wire connector, connect the wires
as follows:
E
Strip the insulation from the incoming wires to expose
about 1/2” (1,3cm) of bare wire. Connect the black
supply wire (“hot”) to the black transformer wire.
F
Connect the white supply wire (“neutral”) to the white
transformer wire.
G
Connect the green supply wire (“ground”) to the
green transformer wire.
!
NOTE: The ground wires MUST be connected to
provide electrical surge protection.
H
Verify that all connections are secure. Then close the
cover of the high-voltage compartment and secure it
with the screw.
!
NOTE: All electrical connections and wiring runs
must be made according to local building codes.
CONNECT
120 VAC
F
E
G
H
